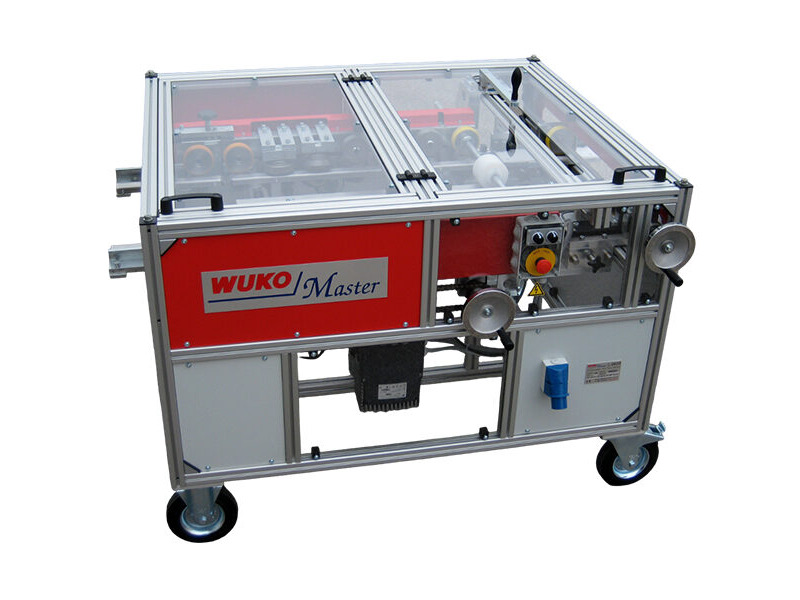

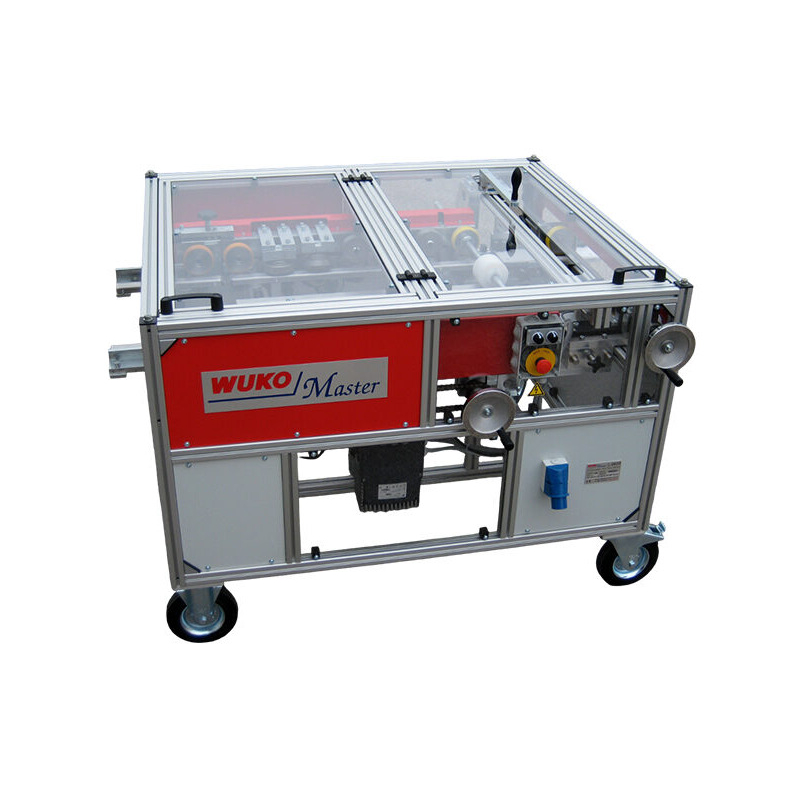

WUKO MASTER 0420 / 0420S

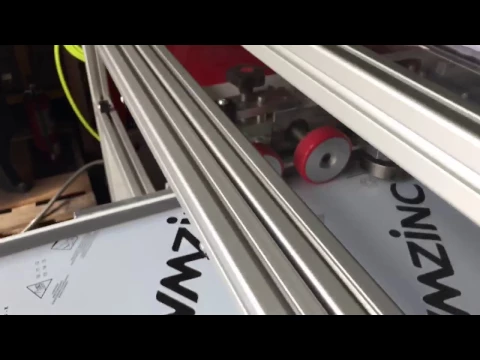

Watch video

ROOF PANEL MACHINE

MODEL

Description

MASTER 0420 UND 0420S

No secrets, nothing to hide!

VIDEO

Roof panel machine for making the profile for single and double-lock standing seams (seam height 25 mm/1″)

  • Machine frame made of modular aluminium profile system
  • Upper machine cover: Swing doors, easy to open, with safety switch, frame elements made of transparent, impact‐resistant polycarbonate ⇒ clear view during profiling process ⇒ easy access for adjustment and service
  • Mobile, two fixed and two swivel castors with brakes
  • 230 V motor with frequency converter for continuously variable working speed:
  • 0–12 m/min (0–40 ft/min)
  • Forward and backward run

Profiling

  • Fabrication of the profile for the single or double-lock standing seam, seam height 25 mm/1″

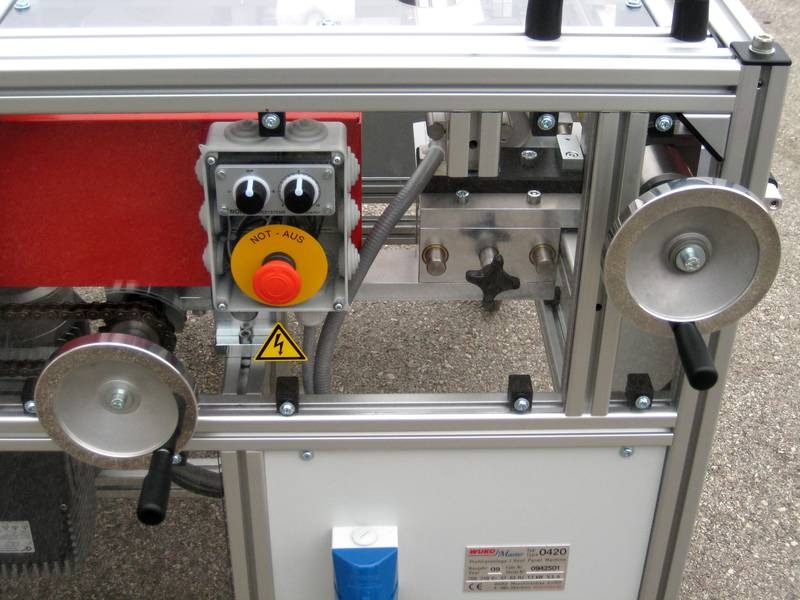

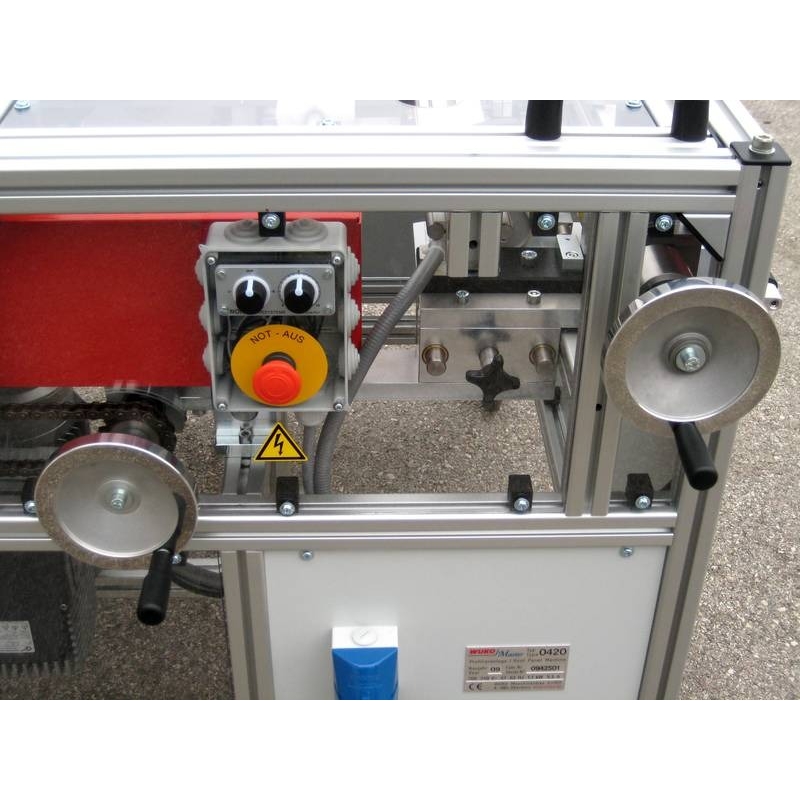

  • Working width between 290 and 810 mm/11.5″ and 32″ continuously adjustable by hand wheel over two spindles ⇒ panel width about 210–730 mm/8.3–28.7″
  • Inlet guides easily and precisely adjustable (measure correction on the profile)
  • Clean profile, poor in tension, made by eight hardened roll forming stations
  • 8th forming station for aligning the panels and for curving the panels – convex or concave – smallest radius about 6 m/20′

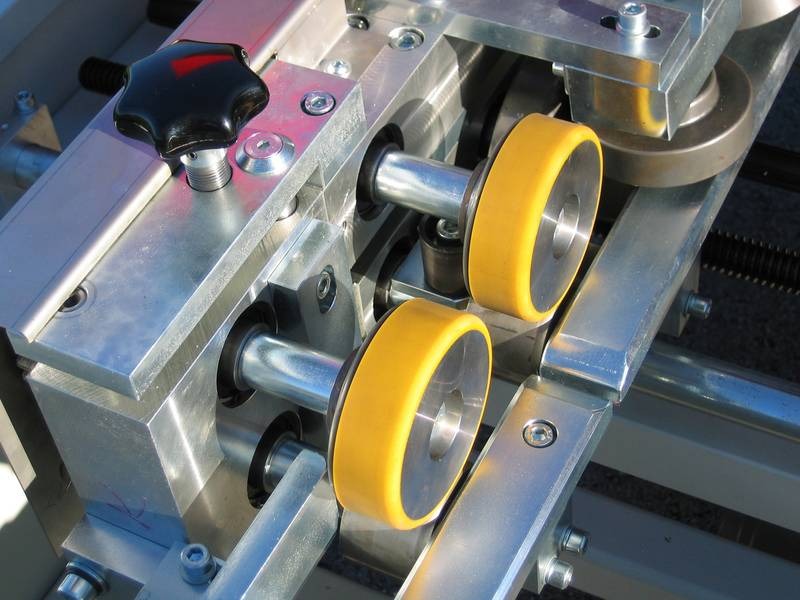

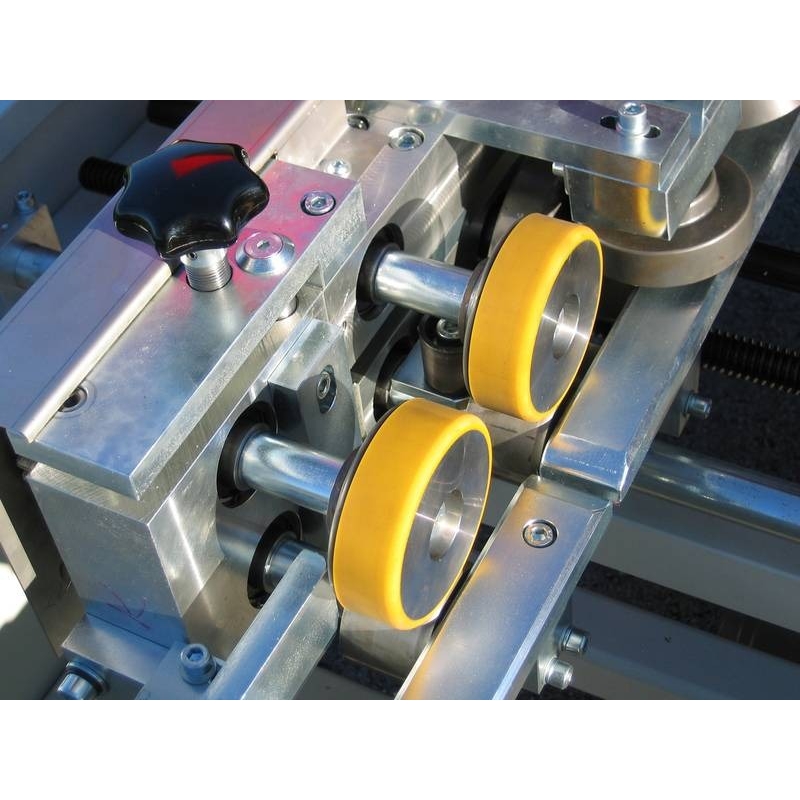

  • Cut‐proof, extremely resilient polyurethane coated drive rollers

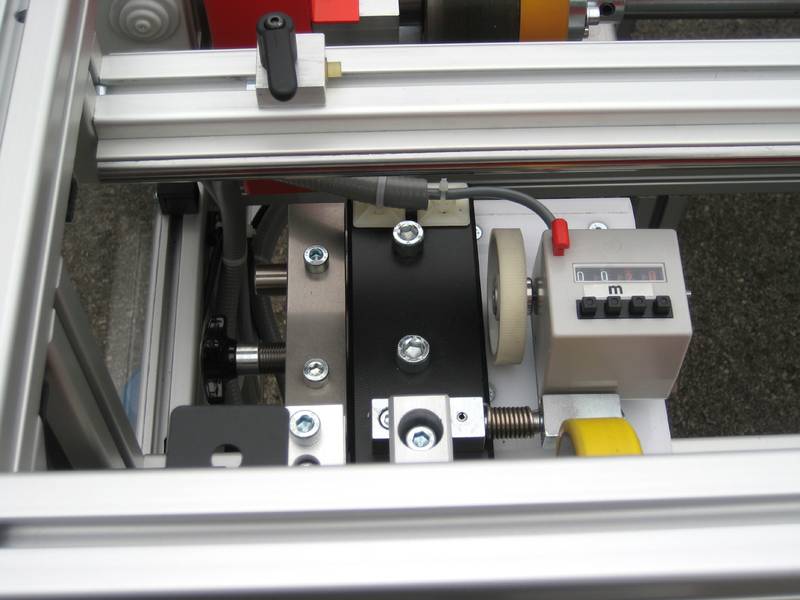

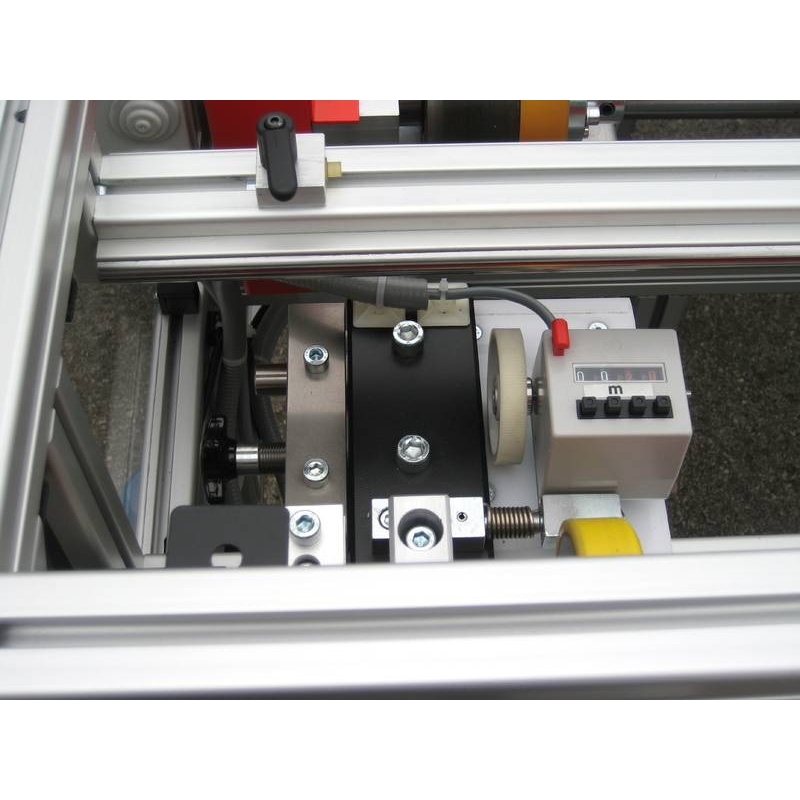

  • Electro mechanic preset counter – safely placed within the frame
  • Also for profiling short (min. length about 500 mm/20″) or tapered panels

Technical Data:

  • Max. Sheet Metal Thickness: Galvanized steel: 0.70 mm or Aluminum, copper, zinc: 0.8 mm or Stainless steel: 0.5 mm
  • Engine: 230 V/1.10kW
  • Dimensions: Length: 154 cm (with guides)
  • Width: 131 cm (with handles)
  • Height: 105 cm
  • Weight: approx.  320 kg

WUKO MASTER 0420S:

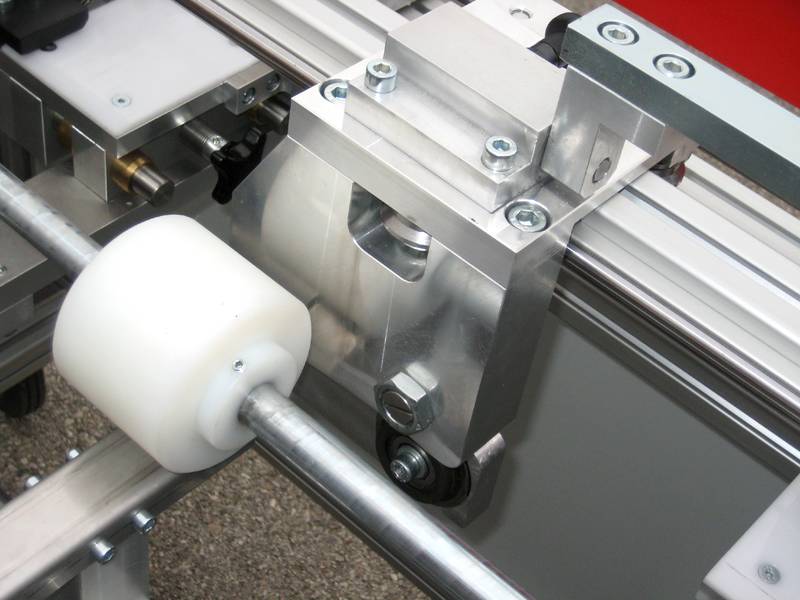

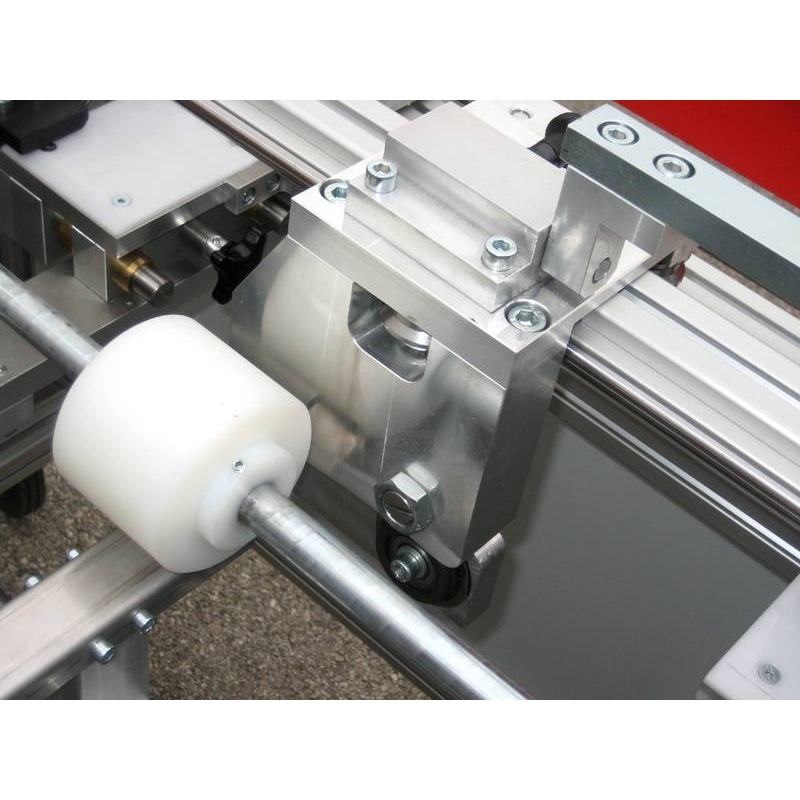

Same as Wuko Master 0420 plus with longitudinal cutting facility
