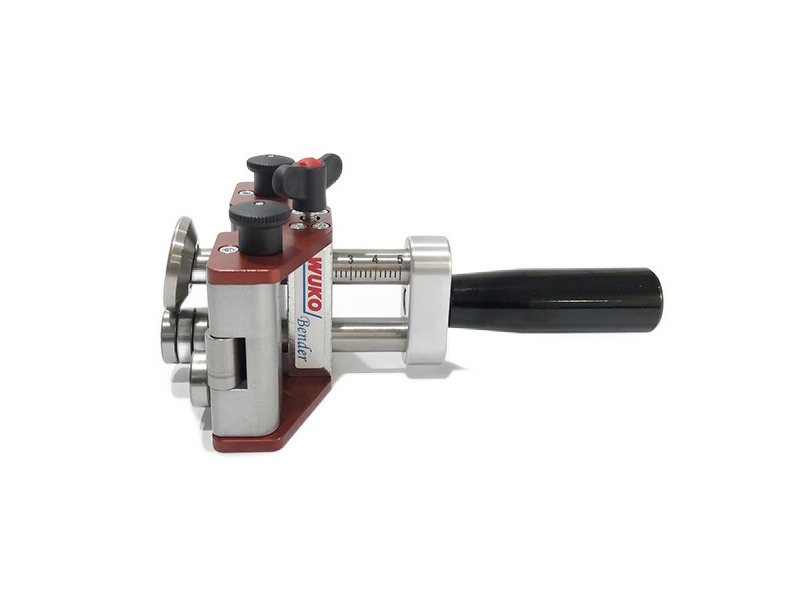

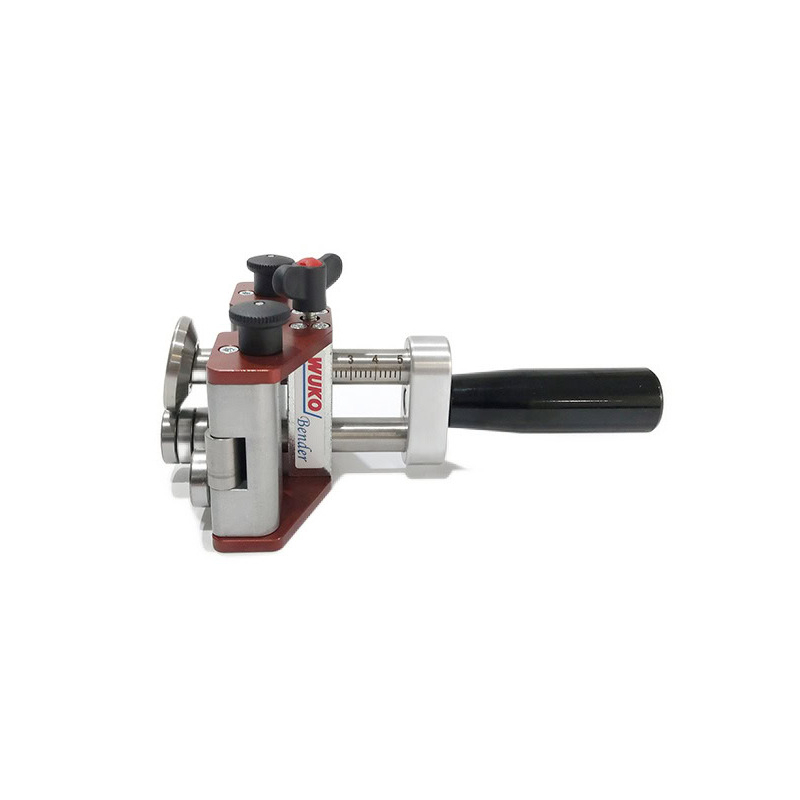

WUKO BOGIE BENDER 9050
Wuko Bogie Bender 9050 (a.k.a. the Curve Hugger) – a bender that is suitable for inside & outside curves, as well as straight bends.

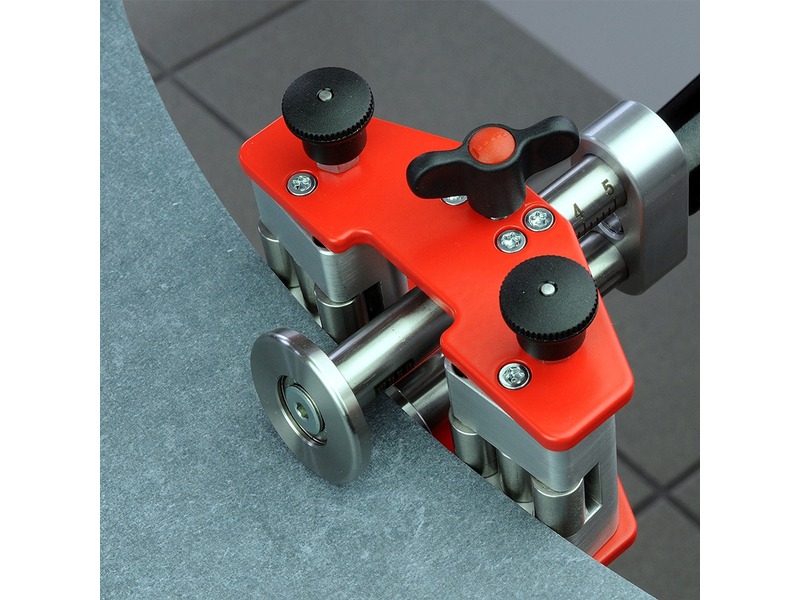

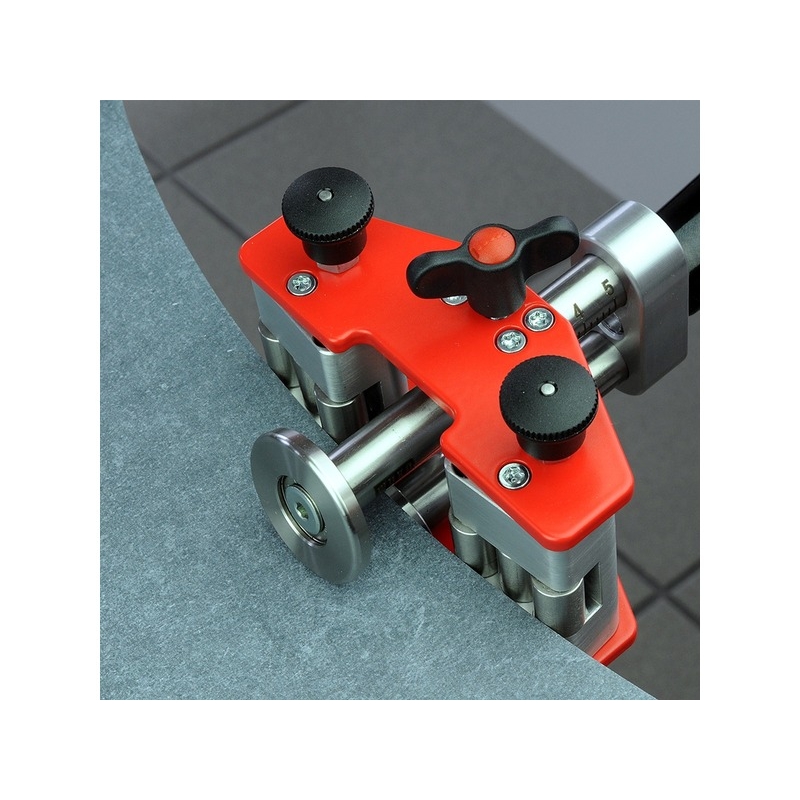

The Bogie Bender has additional support plates that can be adjusted to angle to the radius that you are bending.
What about straight panels? The tools two swivel joints with three roller stops each (for stability) can be fastened within seconds due to two integrated locking pins. Two steps and you are ready: bend away!
Need to switch back to curvy mode? Unfasten the two locking pins by pulling out the black knobs and rotate both swivel joints through 30 degrees to lock them in the upper position. This setting allows the roller stops to follow any curve the edge might take. The outstanding dimensional accuracy of the bend puts the Bogie Bender ahead of the competition, especially on work pieces combining inner and outer radii. Rounding off the package, the WUKO Bogie Bender features an angled bending wheel. Comes in handy for getting springy materials to true 90°, or avoiding scratches on coated sheets!
- Min. bending height: 5mm
- Max. bending height: 50mm
- Bending capacity: 0.8mm (for all common materials)
- Weight: 1.2kg (incl. detachable handle)

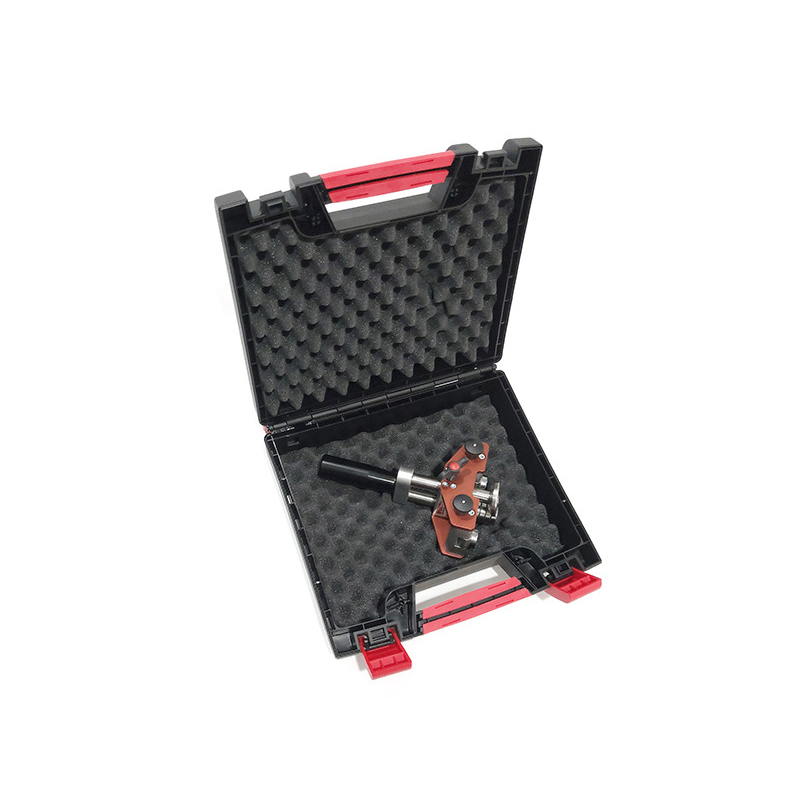

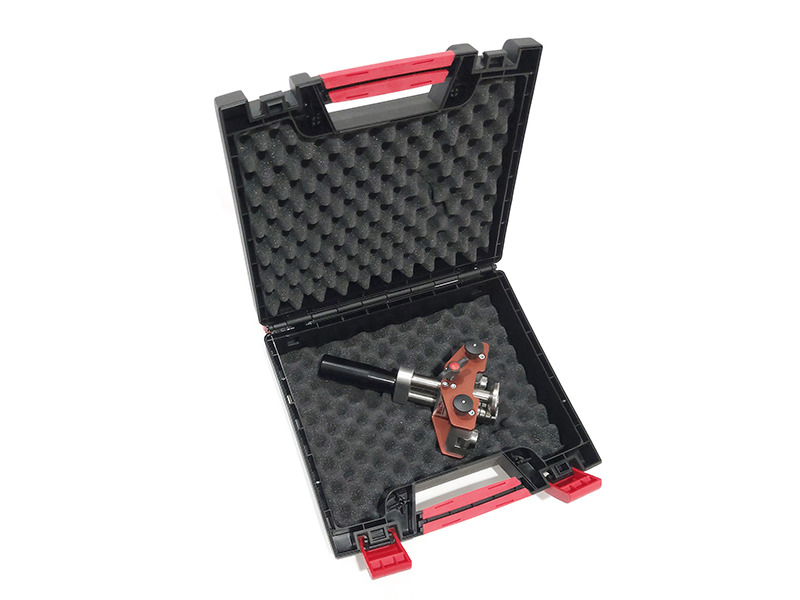

- Come in a WUKO carry case
