UNIVERSAL SAFETY ANCHOR METAL PLUS LLC

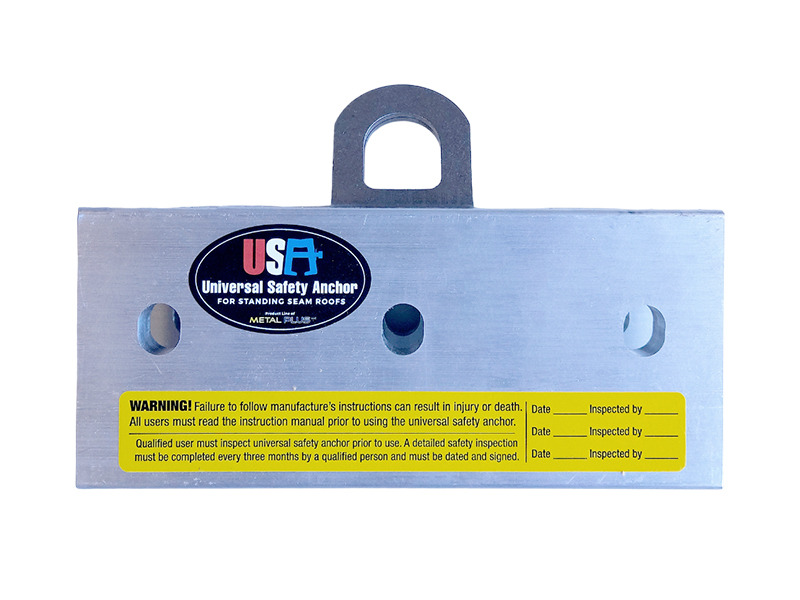

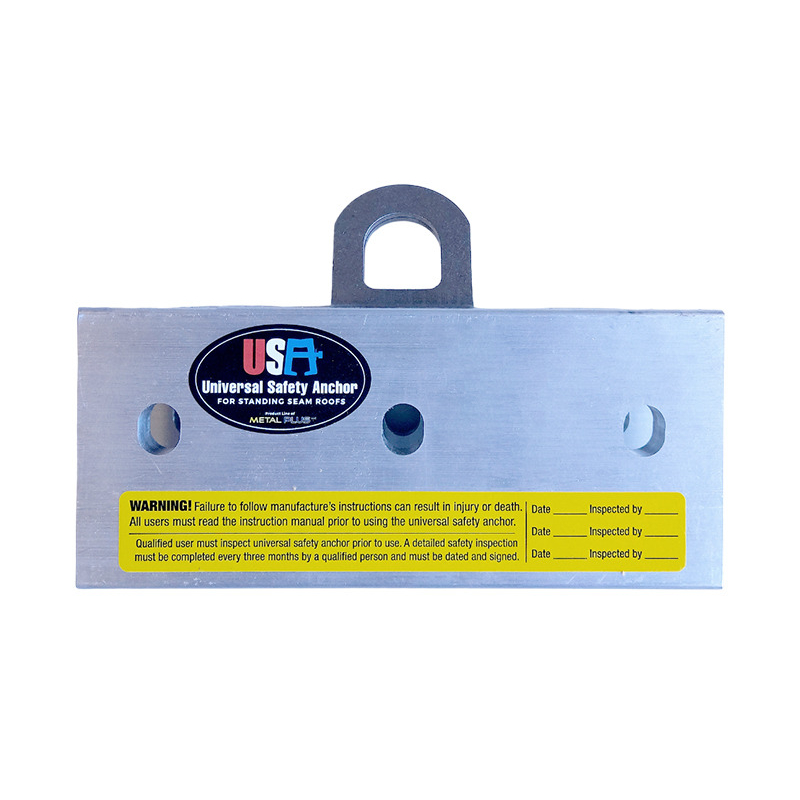

The Universal Safety Anchor by Metal Plus, LLC was designed to allow fall protection safety tie-off on standing seam metal roofs without causing damage to the roof panel.

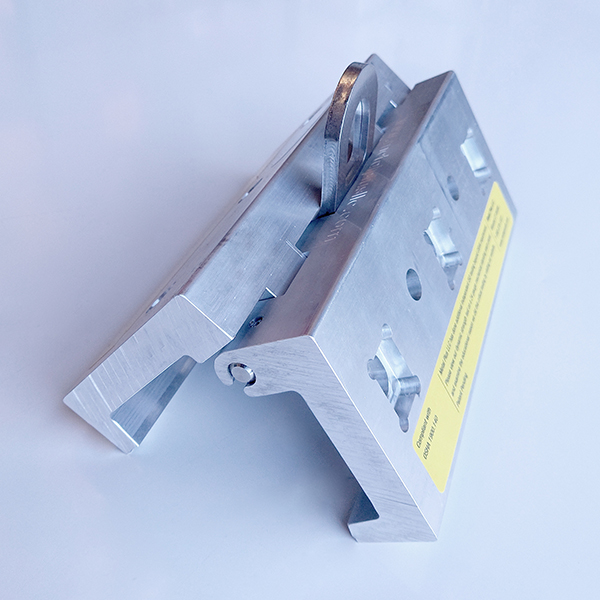

The simple yet robust design features a simple clamping mechanism that is simply placed over the panel rib, and tightened with a socket wrench.

Once installed according to the included instructions, the Universal Safety Anchor provides temporary protection anywhere on the metal roof you need it and meets OSHA 1926.502 (d) (2) (3) (4) (15) and OSHA 1910.140.

This anchor has been tested to ANSI Z359.18-2017 and test results are readily available: ANSI Z359-18-2017 TEST REPORT for UNIVERSAL SAFETY ANCHOR

Features:

• Installation in less than a minute.
• No set screws to adjust. Place, tighten and torque and you are done.
• No damage caused by set screws because there are none!
• Fits over panels up to 32mm wide (Do not use on wide batten cap panels)
• Panel Warranties don’t get voided
• Meets OSHA 1926.502 (d) (2) (3) (4) (15) and OSHA 1910.140
• Tested to ANSI Z359-18-2017
• ISO Tested: ANSI/ASSE Z359.18 & OSHA 1910.140
• Weight: 2.8 kg
• Dimensions: 20 cm x 18 cm x 10 cm
