ULTRA LOW PANCAKE HEAD SCREWS

Description

ULTRA LOW PANCAKE HEAD SCREWS

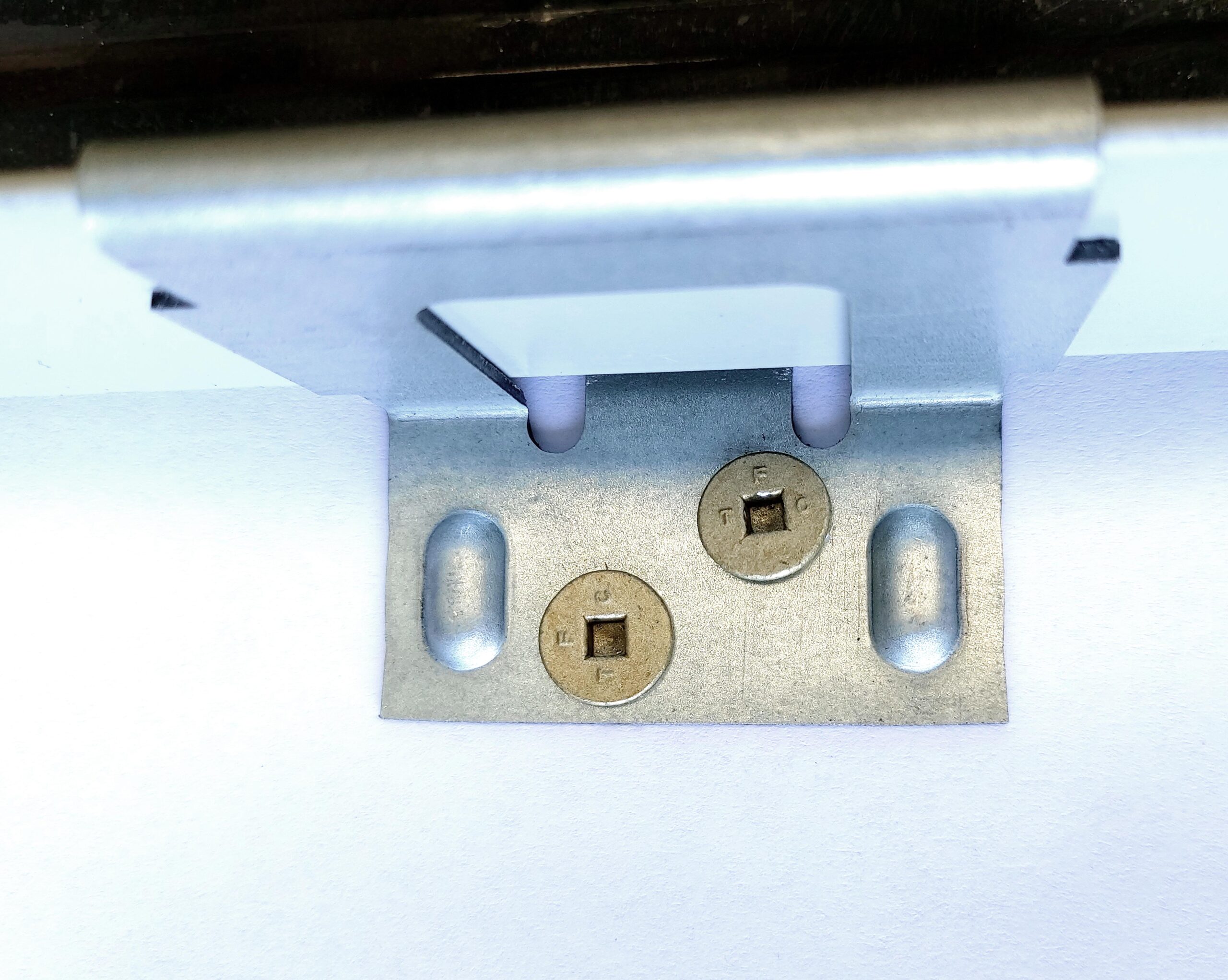

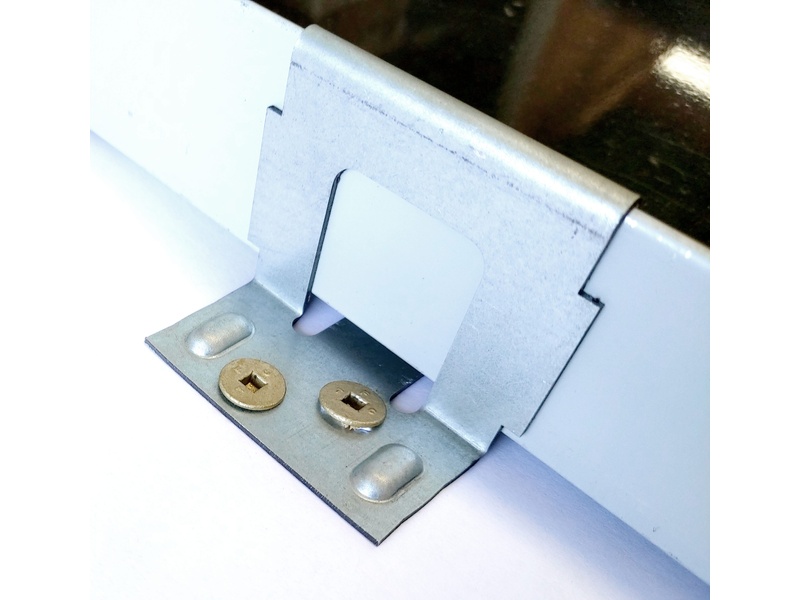

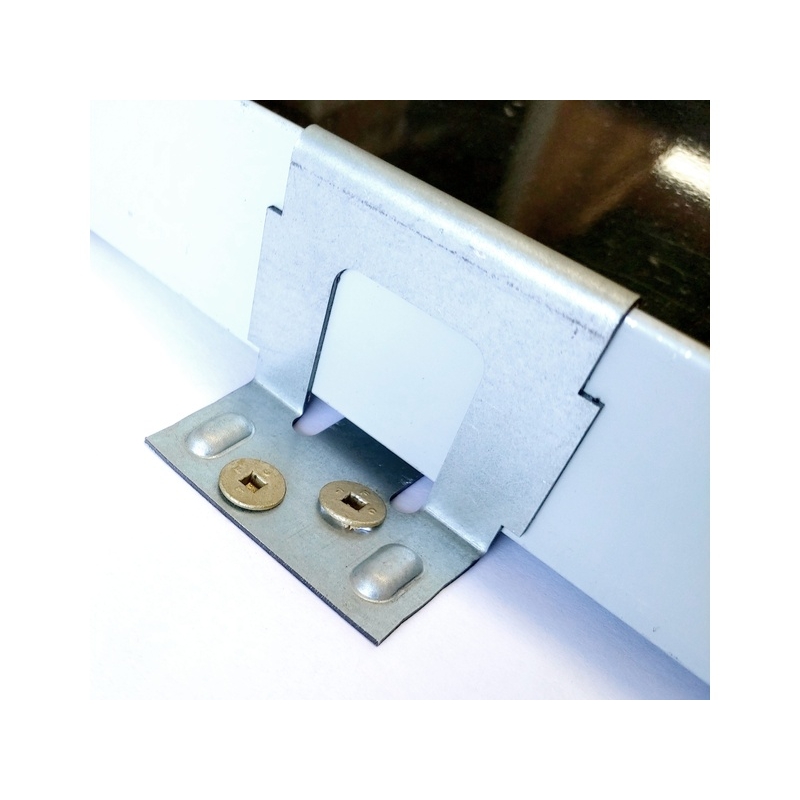

The CONCEALOR® ULP screws are engineered to attach standing seam roof clips to wood. They are the preferred screw for attaching clip-less nail hem metal roof panels, are easy to install, and provide optimal strength. ULP’s are supplied with TRI-SEAL® 1,000-hours salt spray coating which can be used in treated and fire-treated lumber.

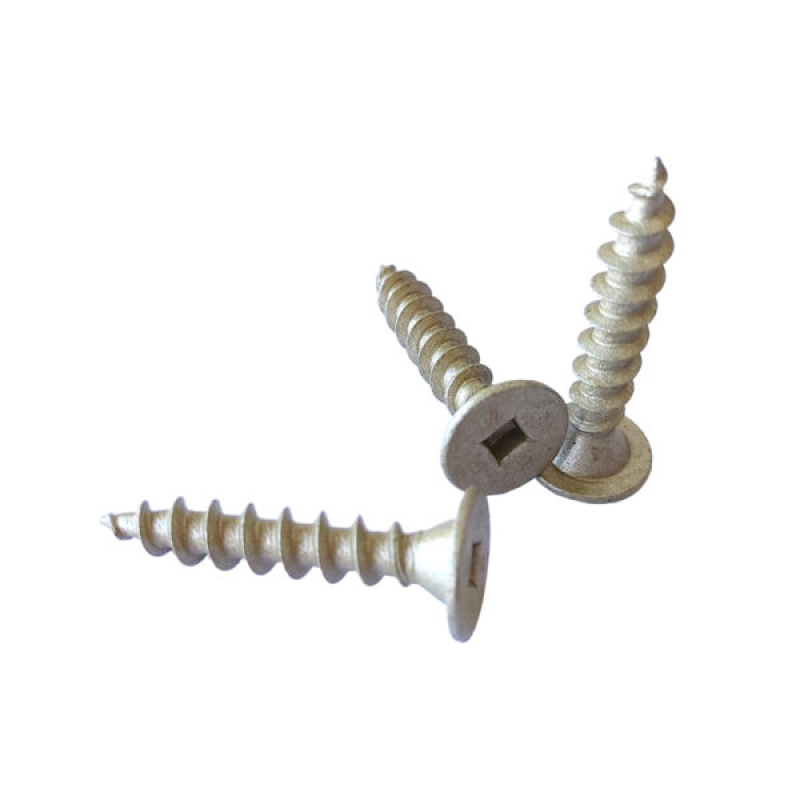

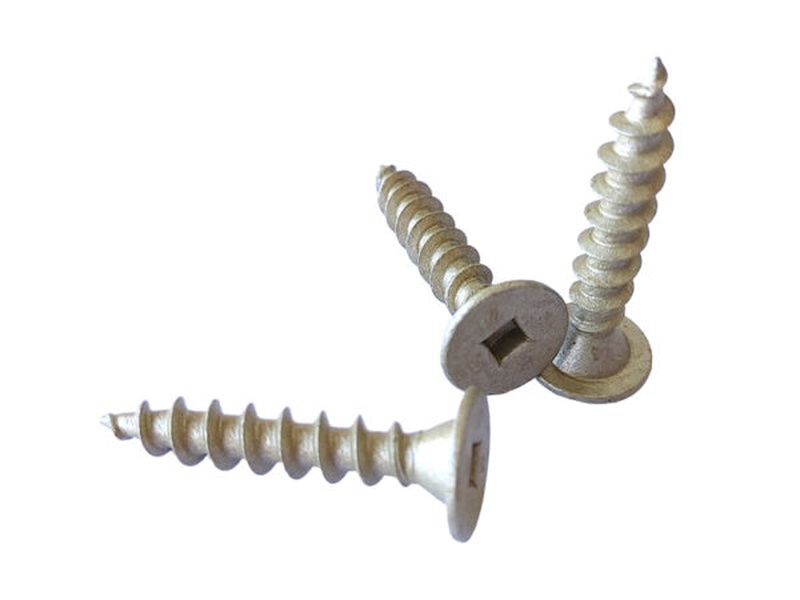

• Description: 30 mm Gimlet Point self-tapping screw

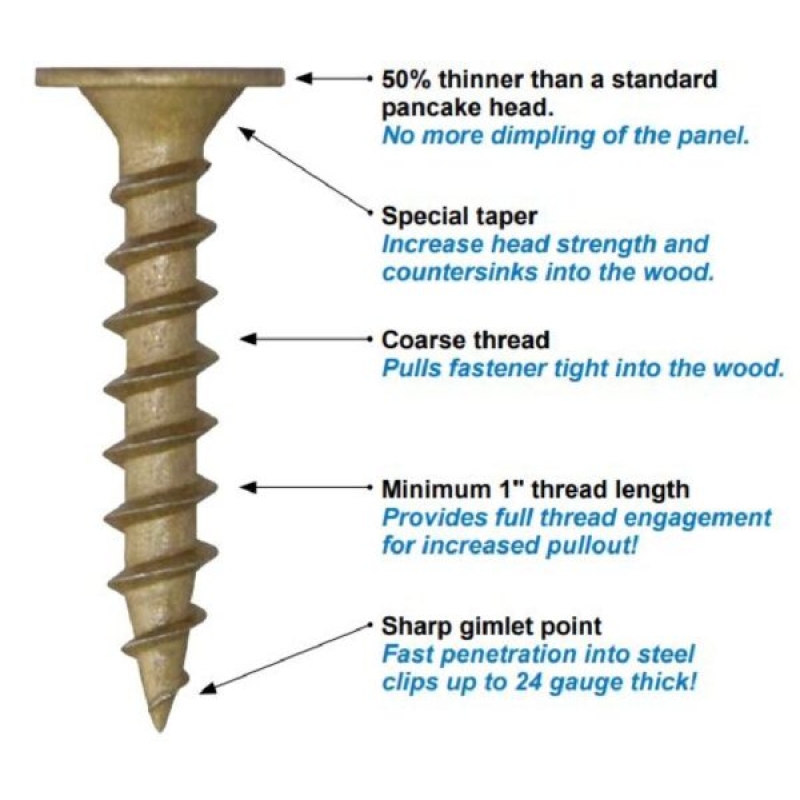

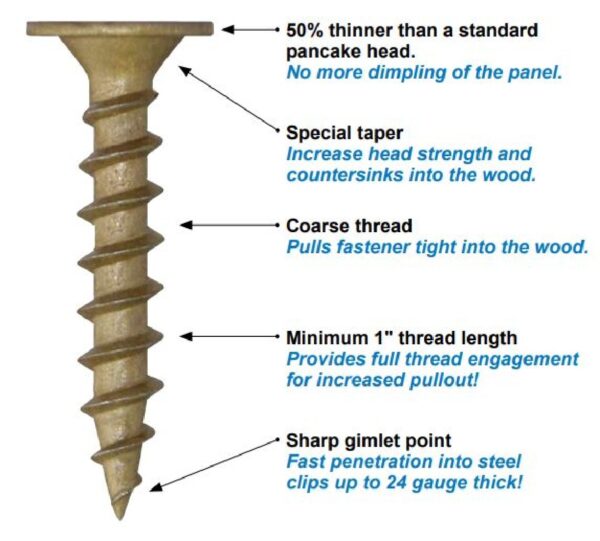

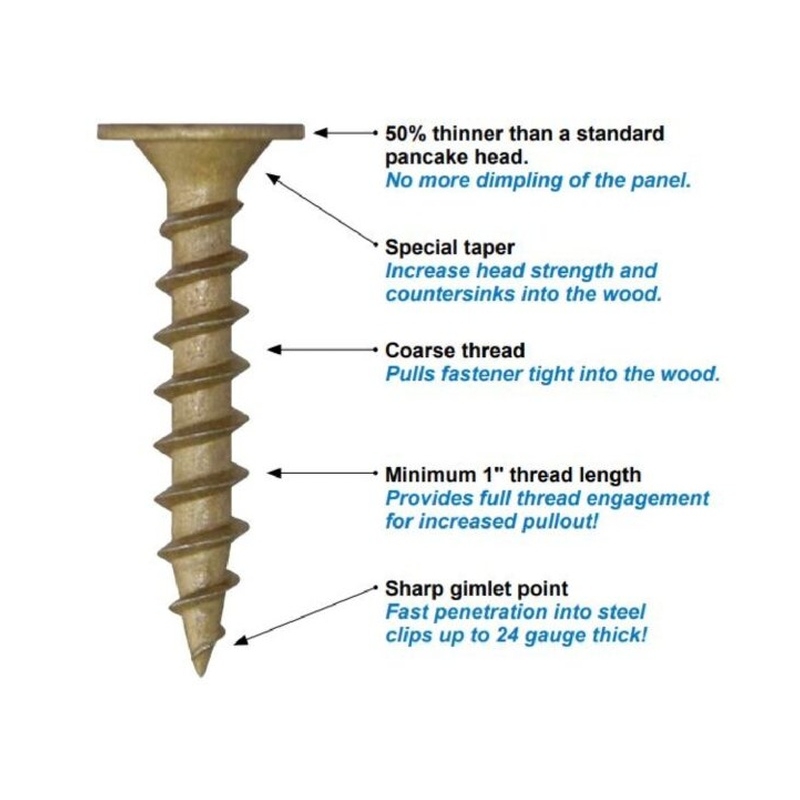

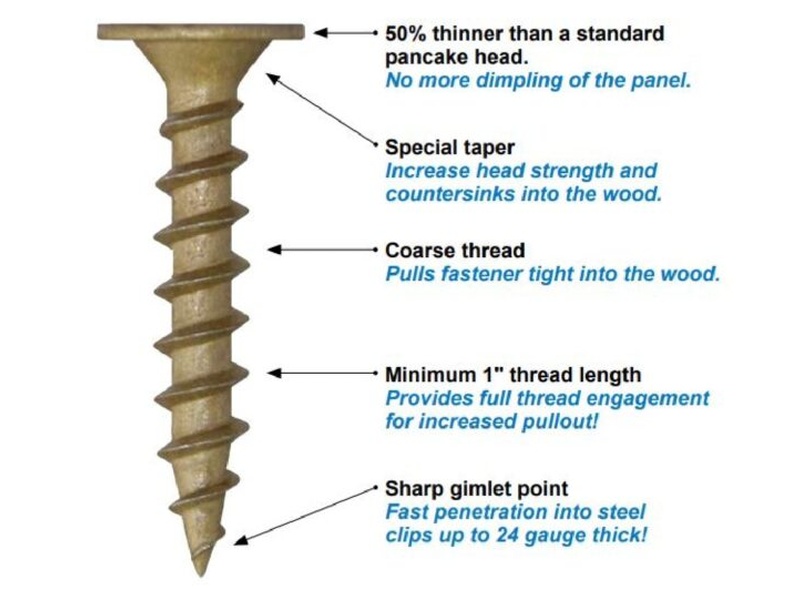

• Head Style: Ultra-low pancake head with taper
• Drive System: #2 square head
• Head Thickness: 1 mm
• Heat Treat: Case hardened to ANSI/ASME B18.6.4 specification

Material:

• C1022 carbon steel, galvanized

Finish:

• Carbon Steel: TRI-SEAL™ long-life coating (1,000hrs. salt spray)

Thread Detail:

• Major Diameter: 5.2 mm
• Minor Diameter. 4.1 mm

Sizes, qualities, and quantities:

• 5.2 X 30 mm ULP (CS) Long-life TRI-SEAL™ coated steel- 250 bag (FBC_LOWPROFSCREW1-250)
• 5.2 X 30 mm ULP (CS) Long-life TRI-SEAL™ coated steel- 5000 box (FBC_LOWPROFSCREW1-5000)

Installation:

Do not use impact drivers! Use 2,500 RPM max variable speed screwdrivers with torque control or depth-sensing nose piece.
