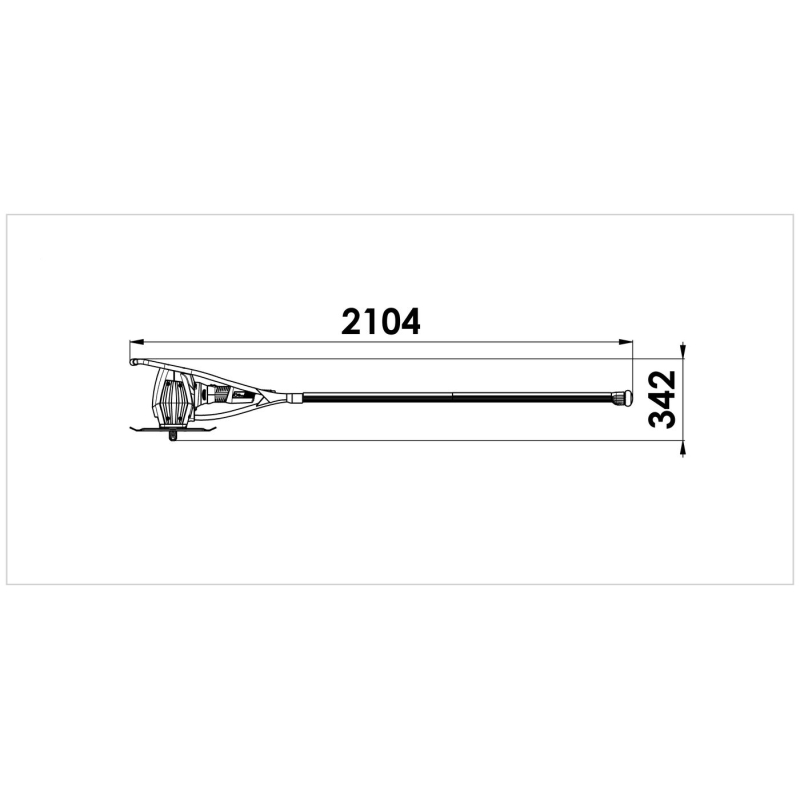

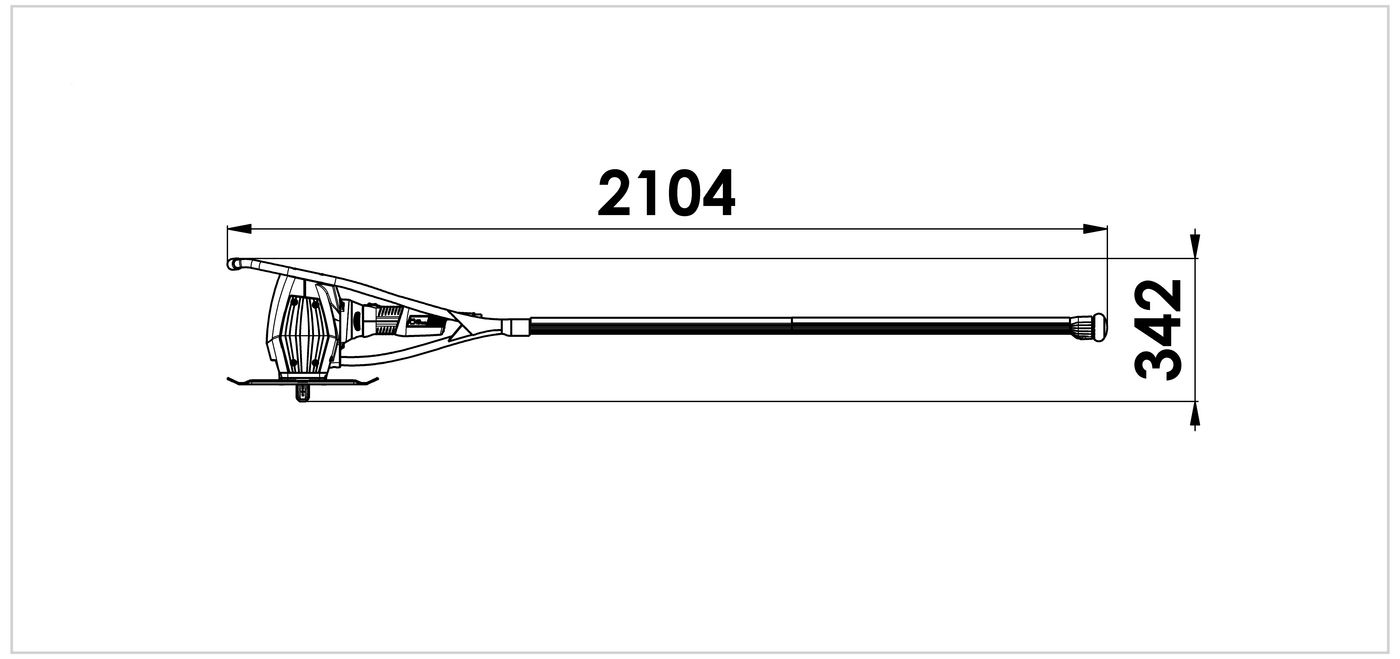

TSC 100TSC 100DIMENSIONAL DRAWINGSEAL WITH FUNCTIONAL MONITORING FEATURECLEAMING RESULTSCLEANING TOOL NO.3 INCL. SEALSPACER PLATESLIDE PLATECOST REDUCTION CALCULATIONMADE IN SWITZERLAND

TRUMPF TRUTOOL TSC 100 SLAT CLEANER POWERTOOL

Watch video

MADE IN SWITZERLAND WITH 5 YEARS WARRANTY

SKU

TRU1893358

Price

On Request

Add to wishlist

Description

Slat cleaner

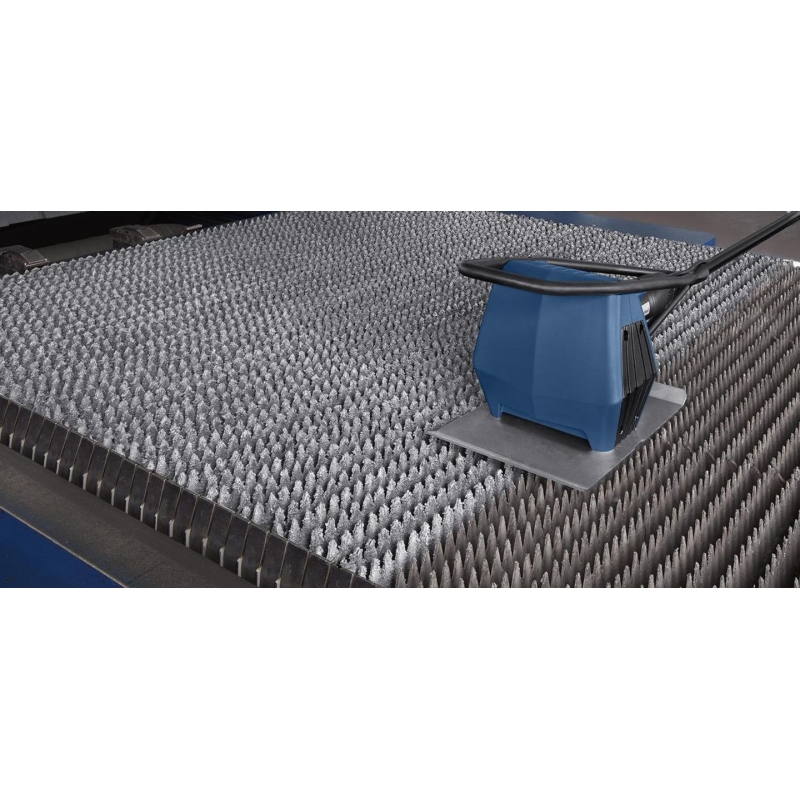

The specialist for clean slats. The laser slat cleaner cleans the slats of your flatbed laser machine fast and several times over. This means you can use the slats for considerably longer. The machine can be simply and easily operated by one person.

  • Diverse area of application: Well-suited for a variety of materials, even for stubborn stainless steel slag.
  • Multiple cleaning: Multiple cleaning means an increased service life before having to replace the slats.
  • Highest quality: Slats which are cleaned regularly increase process reliability and the quality of the produced parts.
  • Automatic adjustment: The laser slat cleaner automatically adapts to different slag thicknesses of up to 25 mm.

TRUTOOL TSC 100 SLAT CLEANER POWERTOOL (2A1)

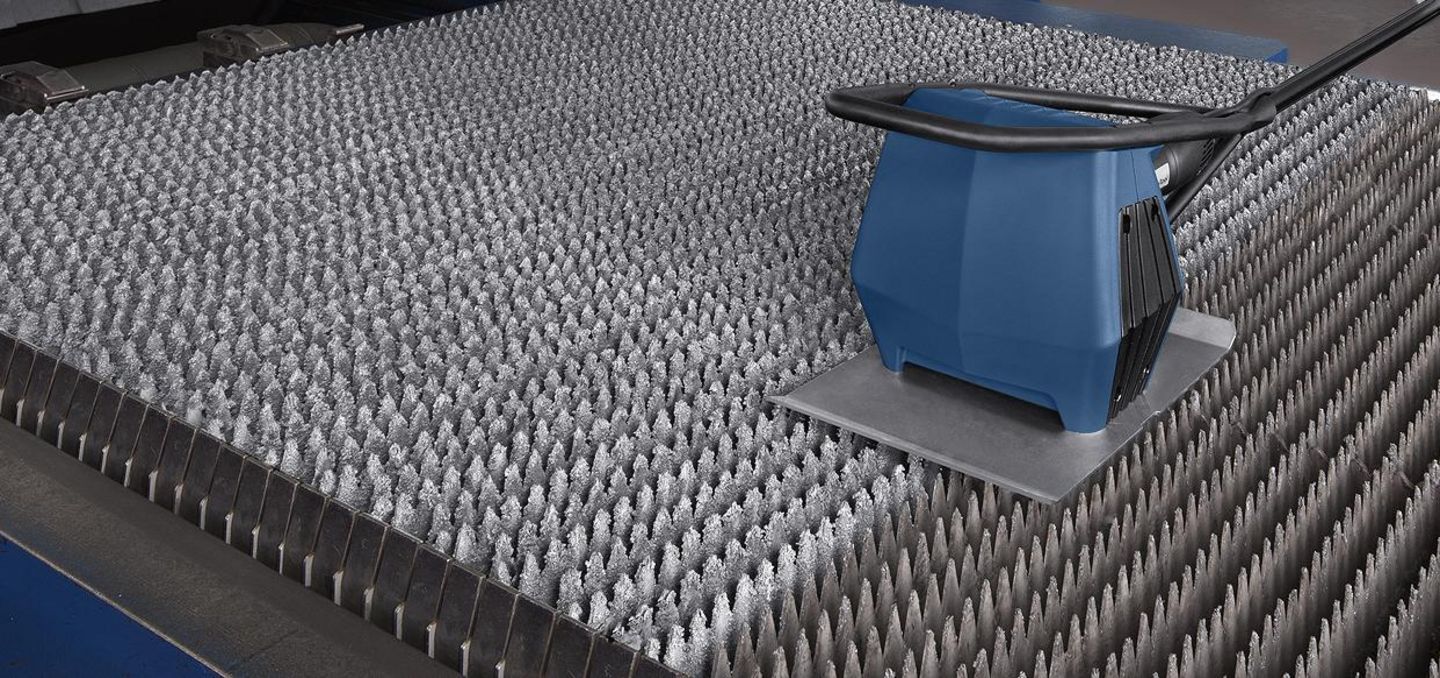

Your specialist for clean slats. With the TruTool TSC 100, you can clean your slats quickly and effortlessly. This ensures reliable, high-quality production of laser-cut components. The slats do not need to be removed for cleaning. This is practical and saves you time. It takes approximately 30 minutes to clean an entire standard size pallet of 1500 mm x 3000 mm.

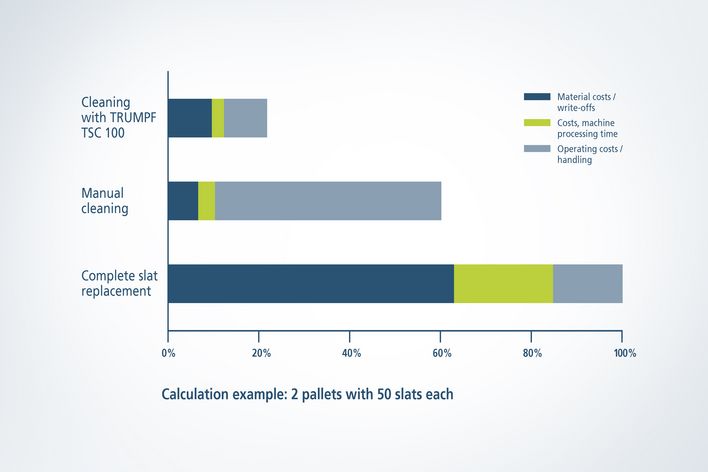

  • Cost reduction up to 75%: With the TruTool TSC 100, you can clean slats multiple times before they need to be replaced.
  • Simultaneous cleaning and production: On a laser cutting machine with pallet changer, you can clean the slats even during the cutting process.
  • Outstanding cleaning results: With the TruTool TSC 100, you can thoroughly remove the accumulation of slag, even on slats subject to high loads.
  • 1-man operation: With the long machine handle and good machine handling, you can clean the slats effortlessly by yourself.

Application:

The TruTool TSC 100 can be used on virtually all CO2 and SSL 2D laser cutting machines

Included accessories Trutool TSC 100:

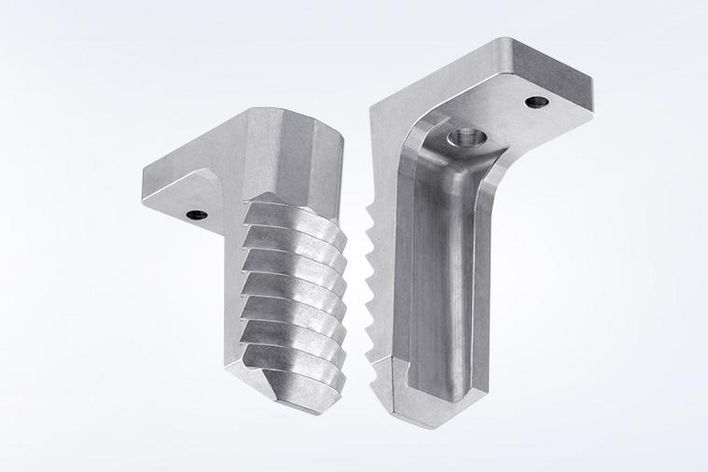

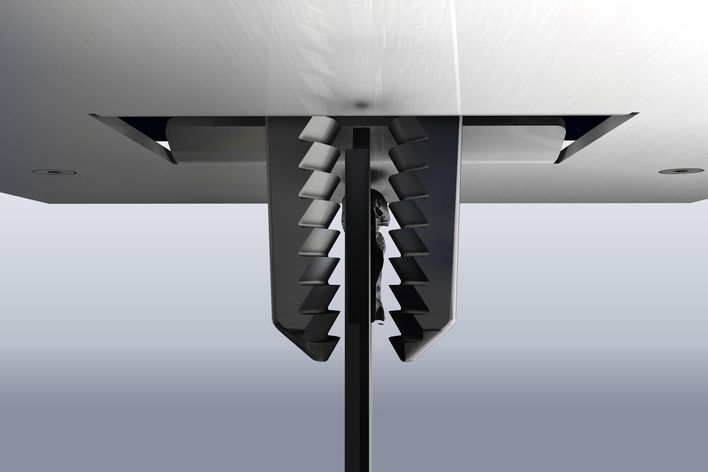

  • Cleaning tool no.3 incl. seal
  • Transport device

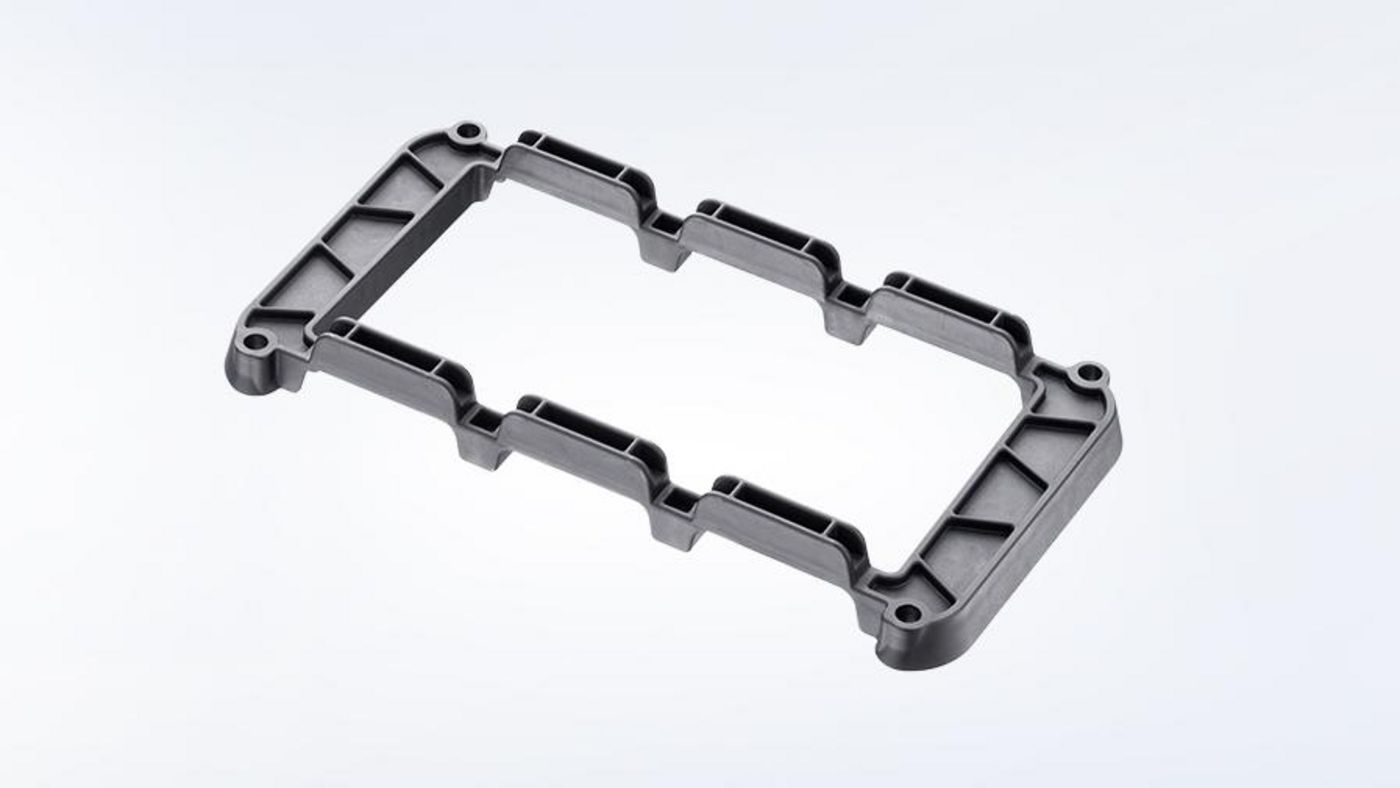

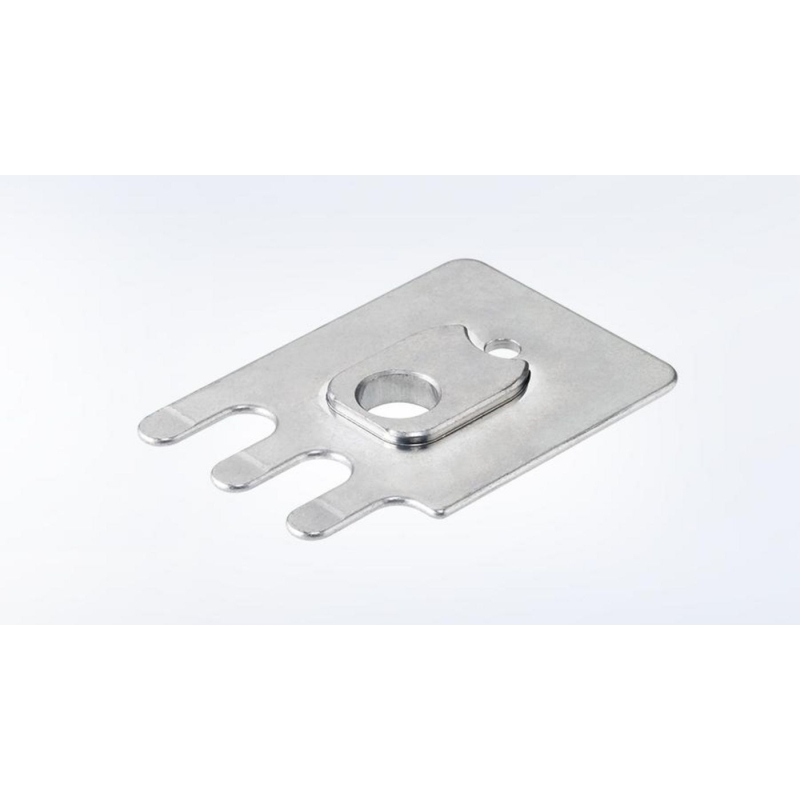

  • Spacer plate

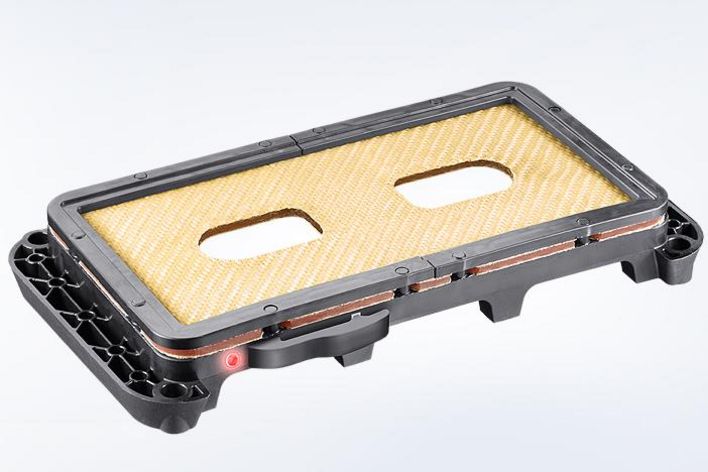

  • Seal with functional monitoring feature

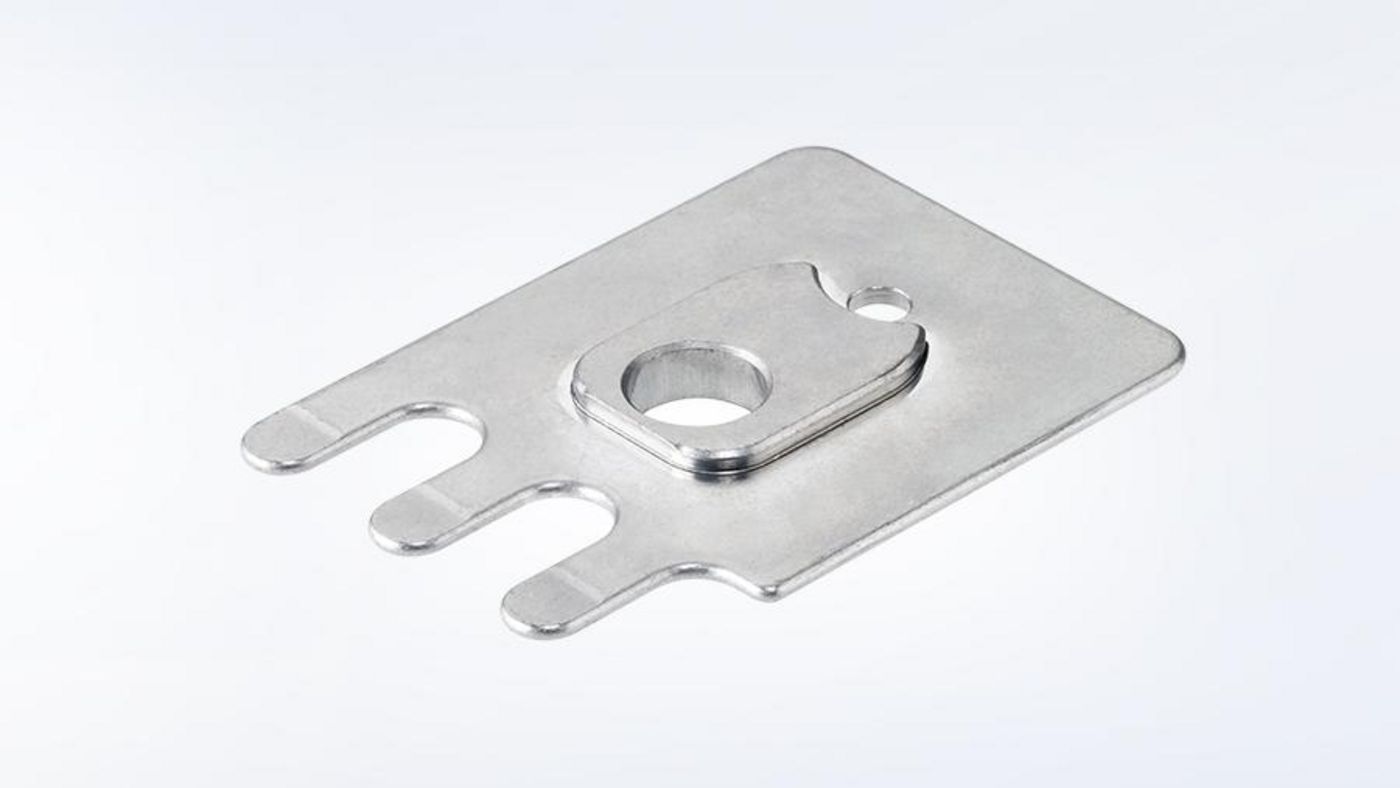

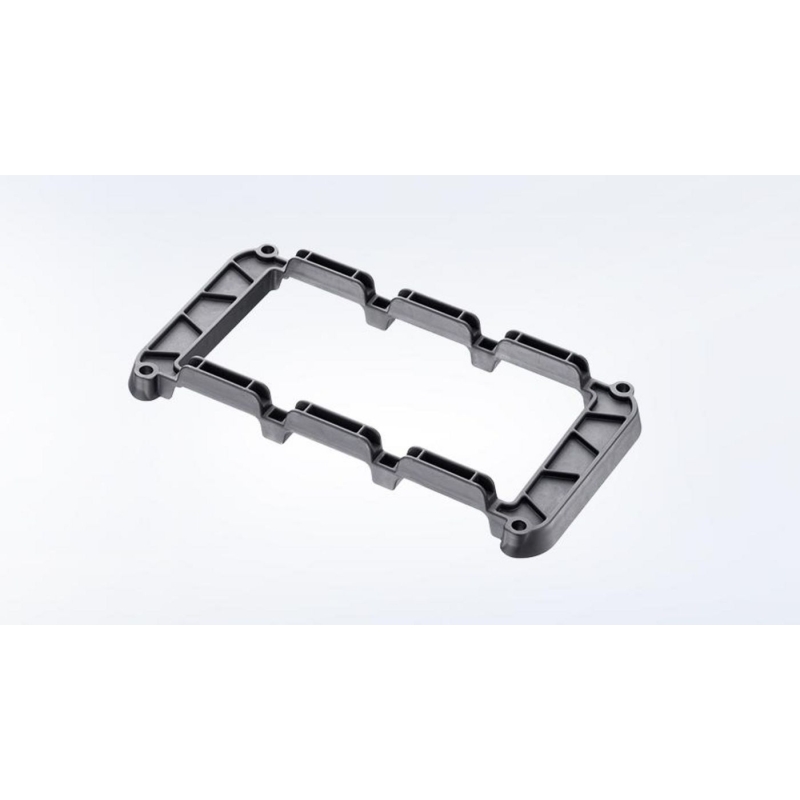

  • Slide plate
  • Allen wrench 4mm
  • Allen wrench 6 mm
  • NZ Plug inclusive: AS/NZ 3760/2010 Test & Tag
  • 5  Year warranty (register online)
