TRUMPF TRUTOOL SLITTING SHEARS

TRUMPF TRUTOOL SLITTING SHEARS

Simply better cutting. High-speed, chip-controlled slitting for a wide range of applications in metal construction, HVAC, drywall, façade building, and even auto and aerospace work. These powerful, precision slitting shears deliver distortion-free cuts, maximum visibility, and quick tool readiness.

Uses:

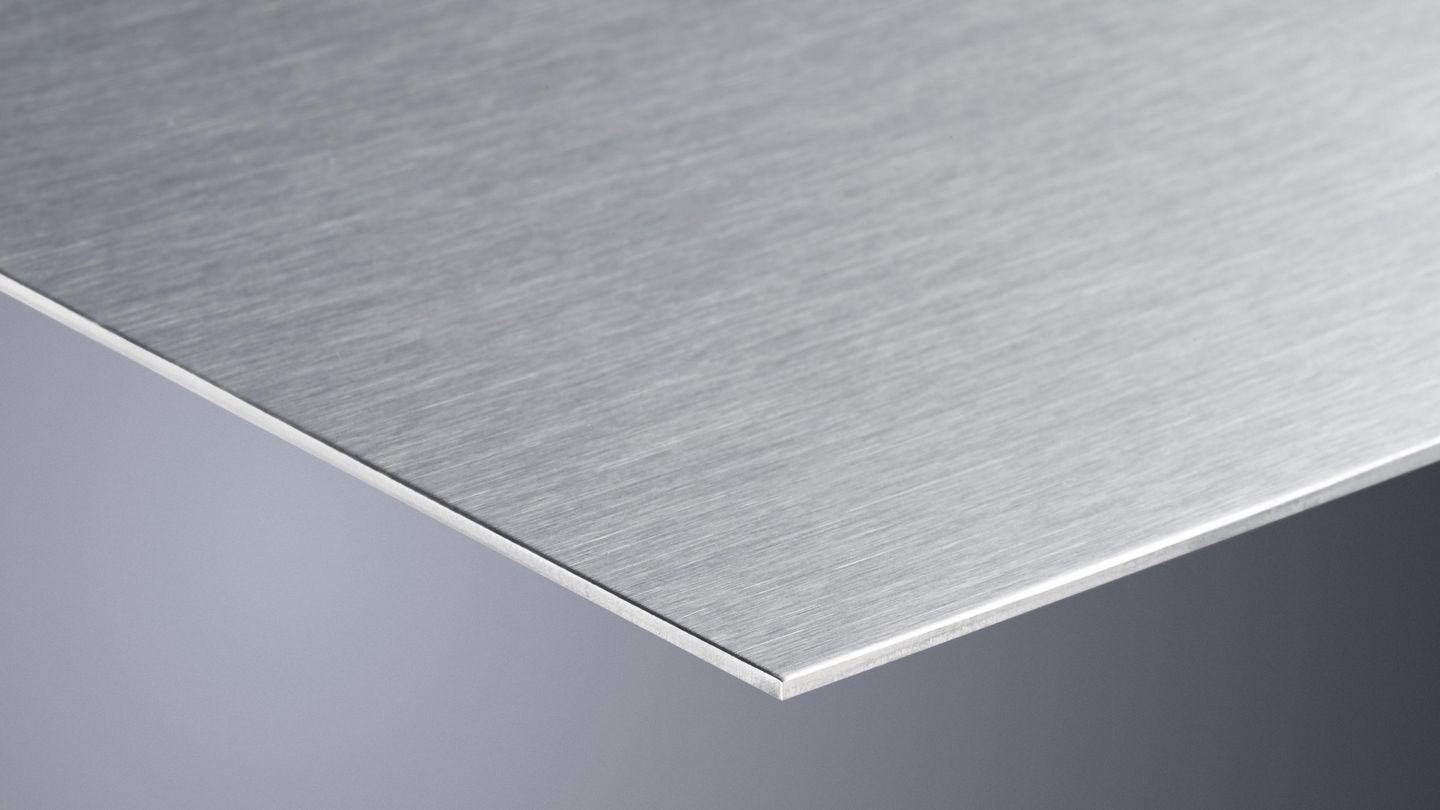

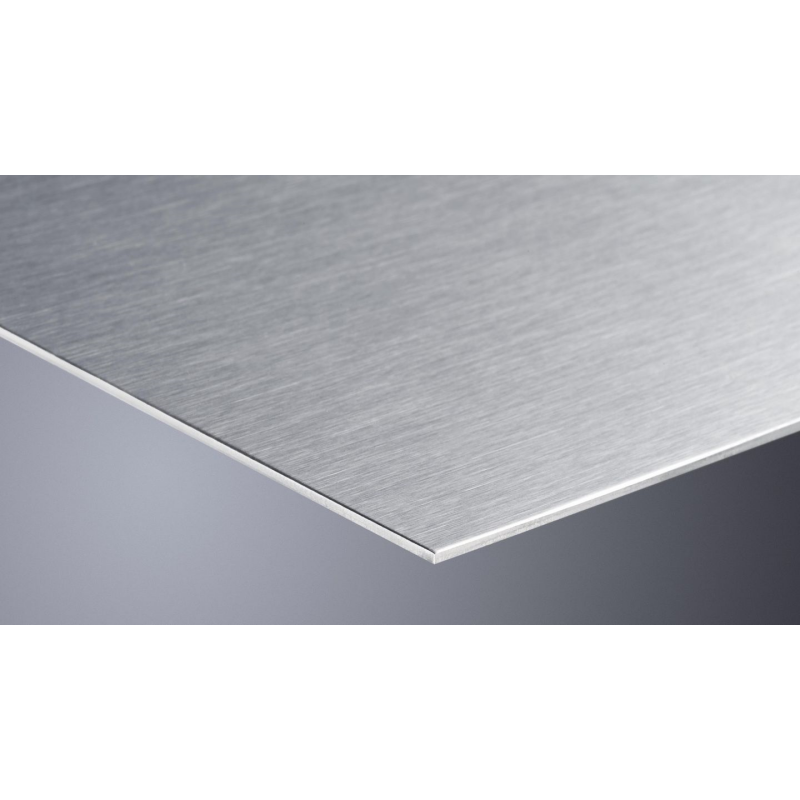

• Straight and curved cuts in mild or stainless steel
• Interior cut-outs and notching work
• Ideal for HVAC ducting, metal cladding, façade work, and manufacturing

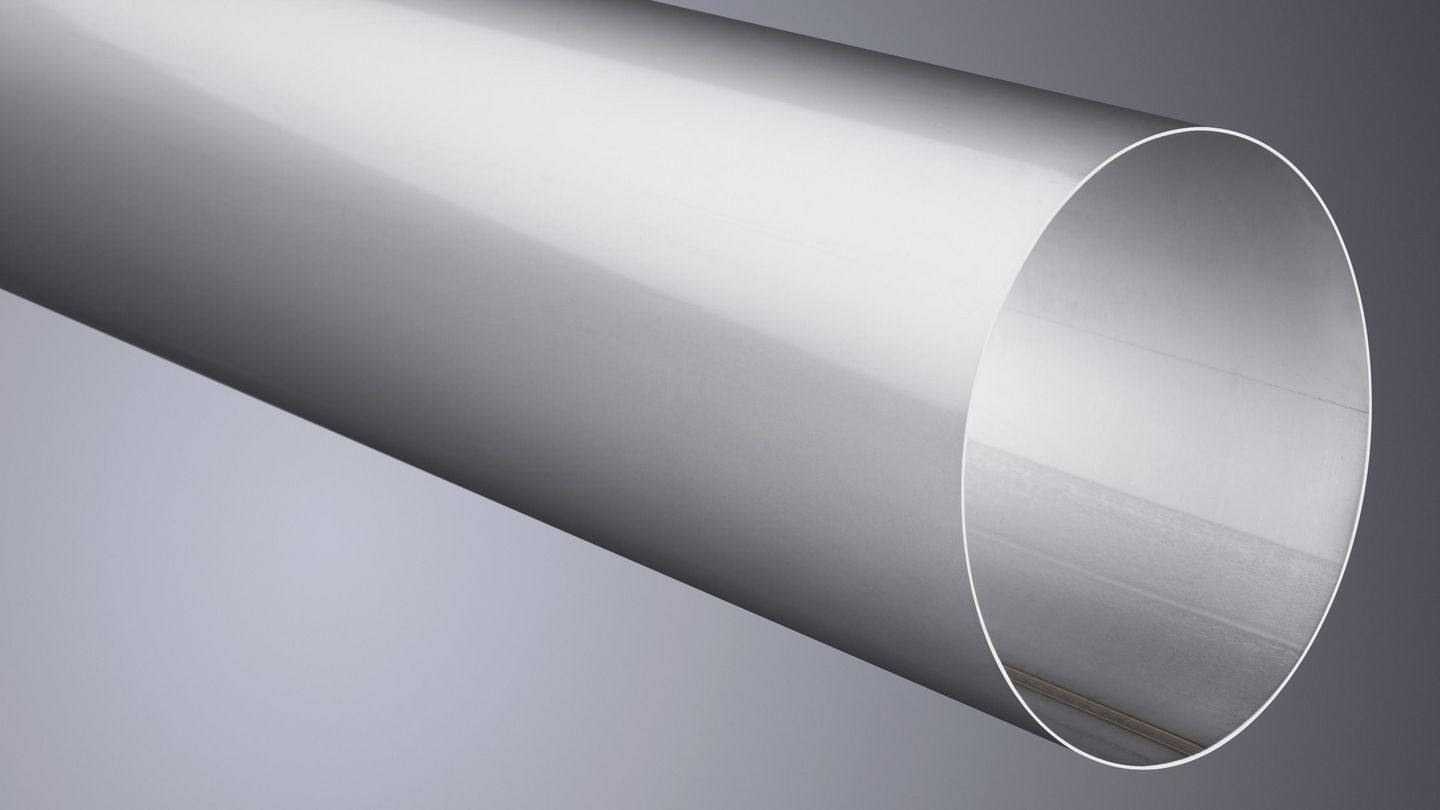

• Suitable for flat sheets, spiral ducts, and tight radii cuts

Product Details:

• Clean slitting with no material deformation
• Clear view of the cutting line for precision work

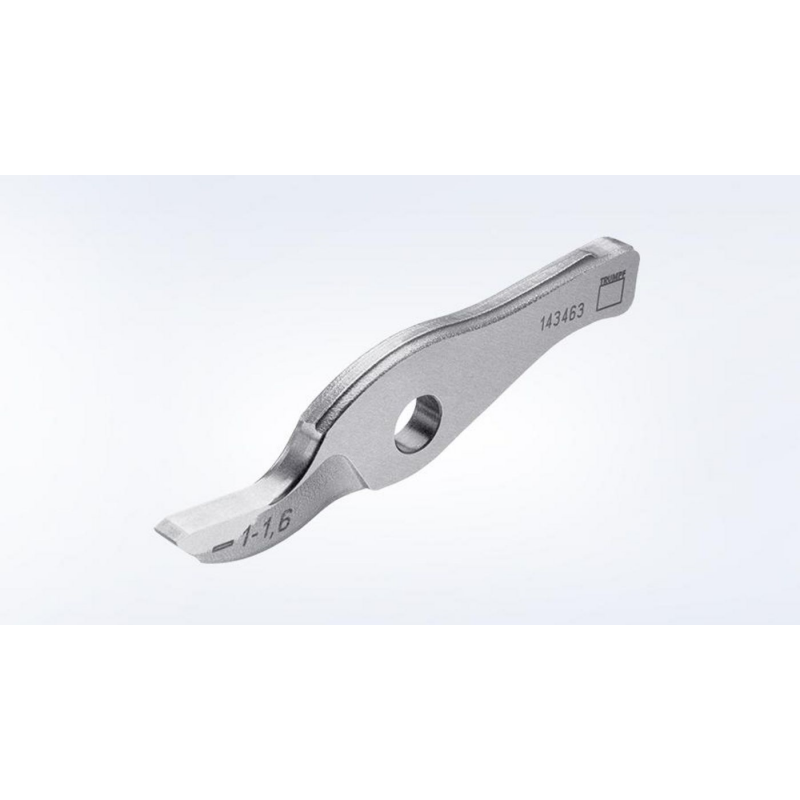

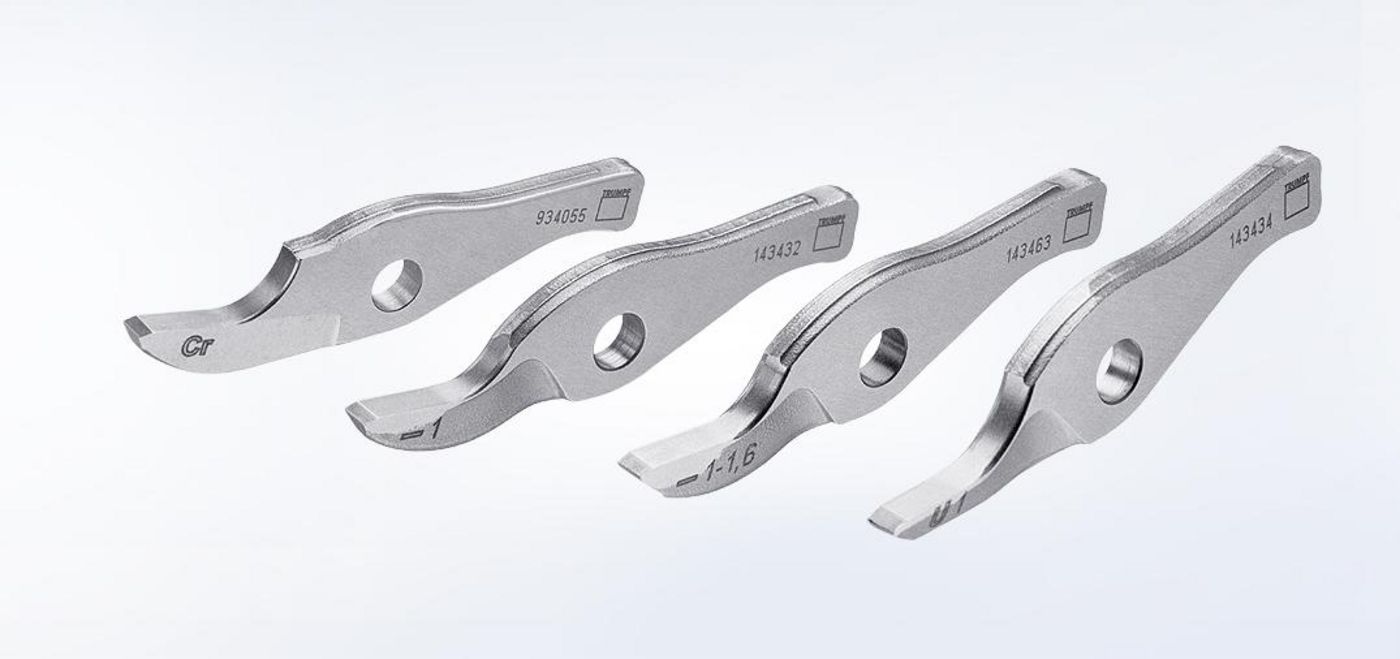

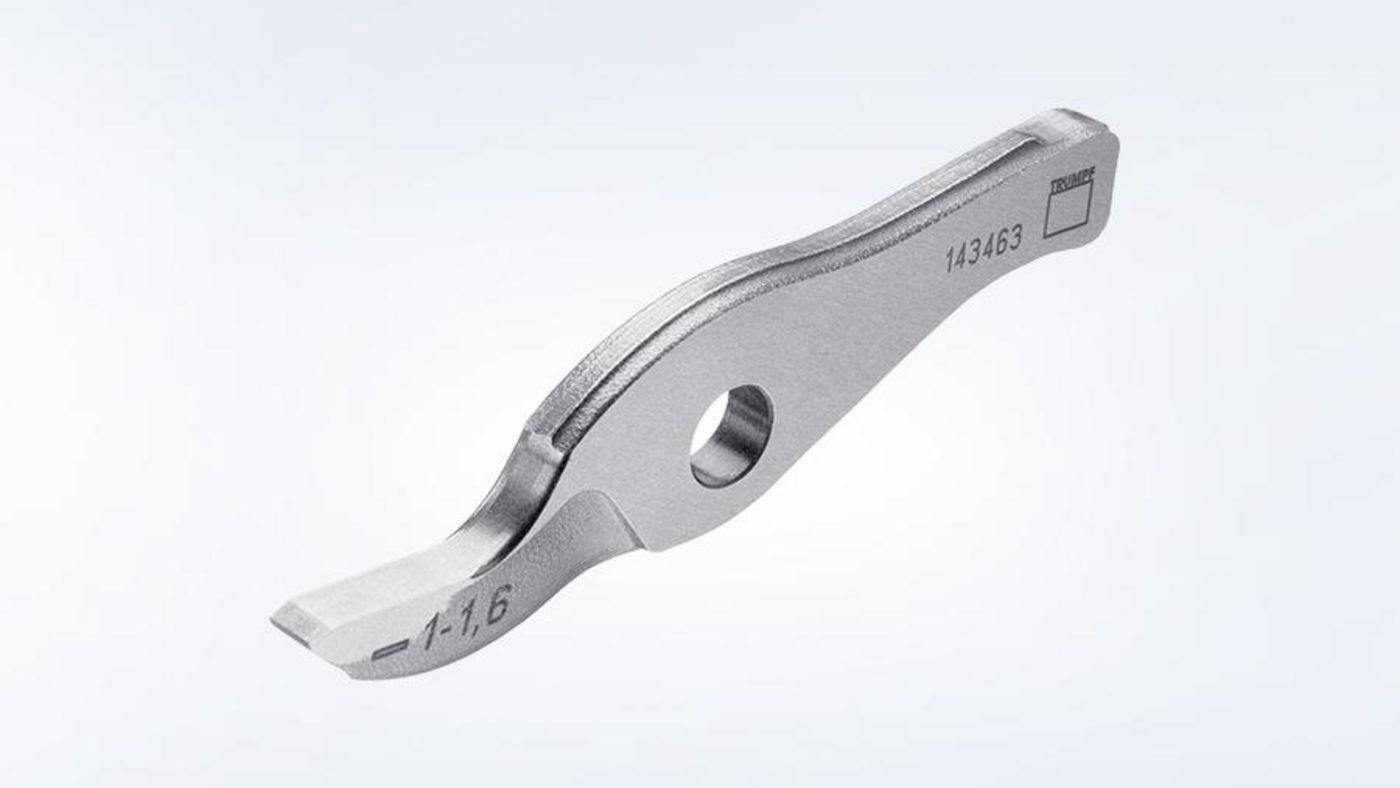

• Wide range of cutter types for different materials and tasks
• No tool adjustments required—ready to go out of the box

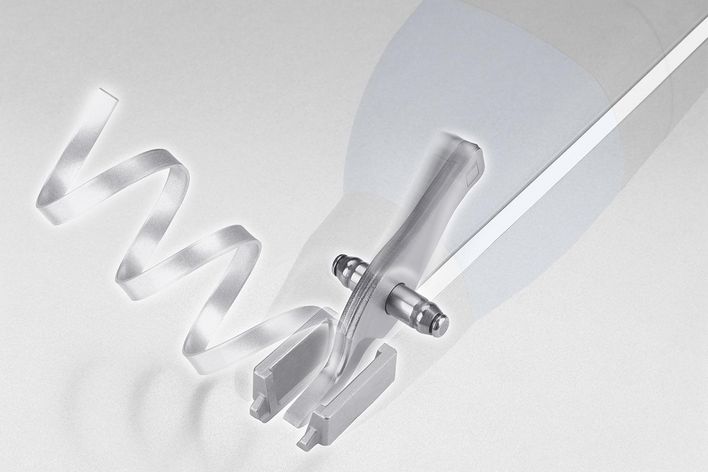

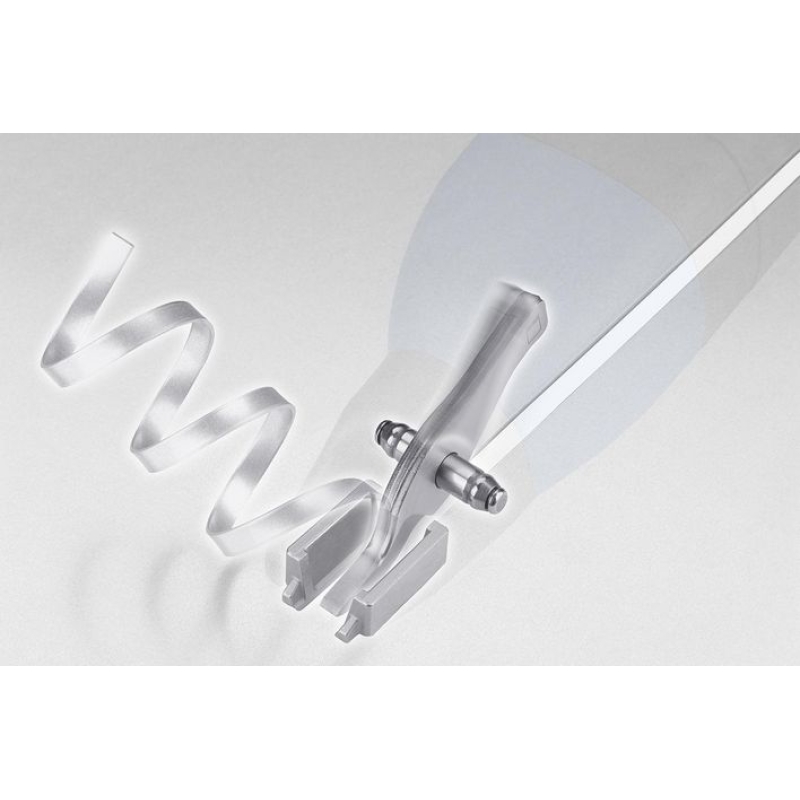

• Spiral-shaped chip rolling prevents scratching the sheet surface
• Lead time: 3–4 weeks
• 5-year warranty (with online registration)
• Made in Switzerland

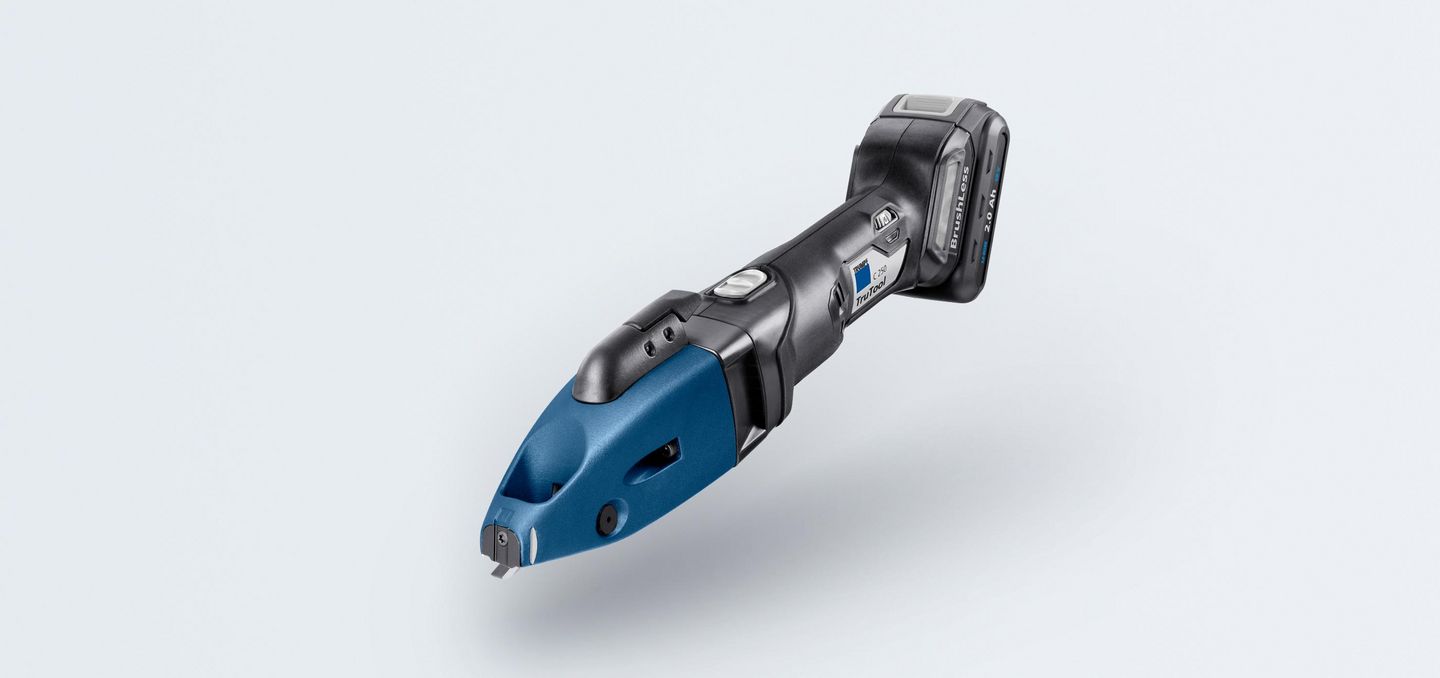

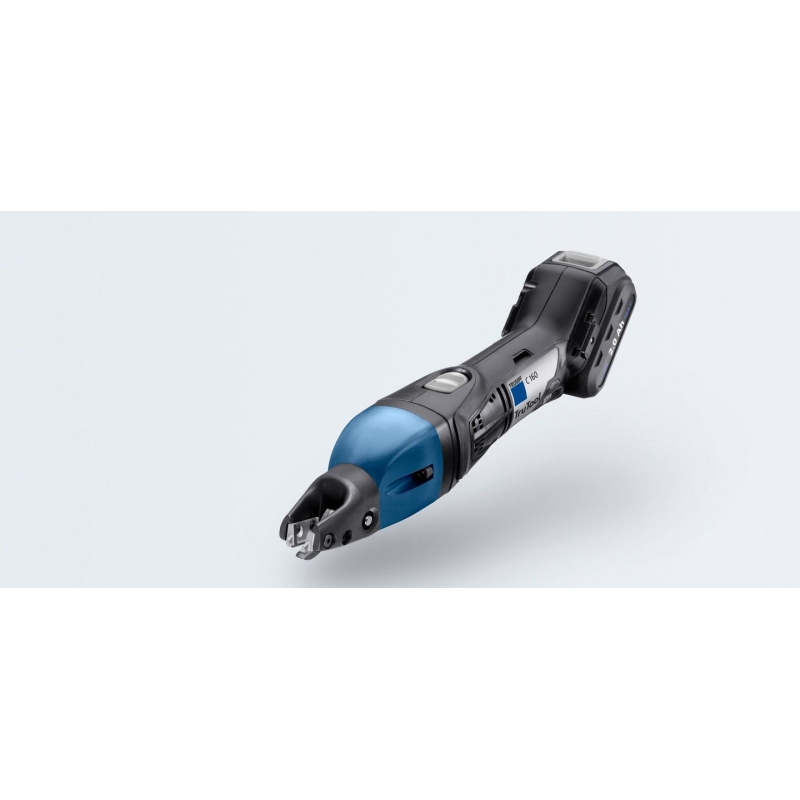

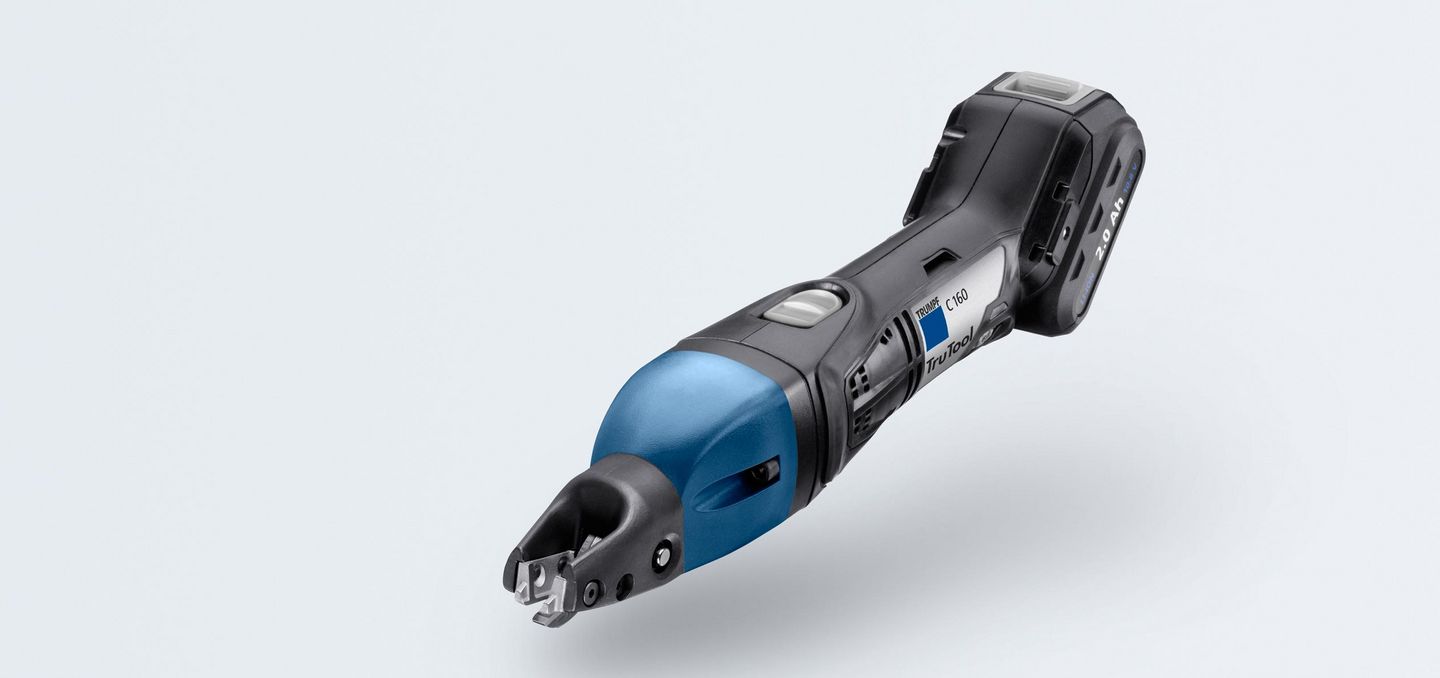

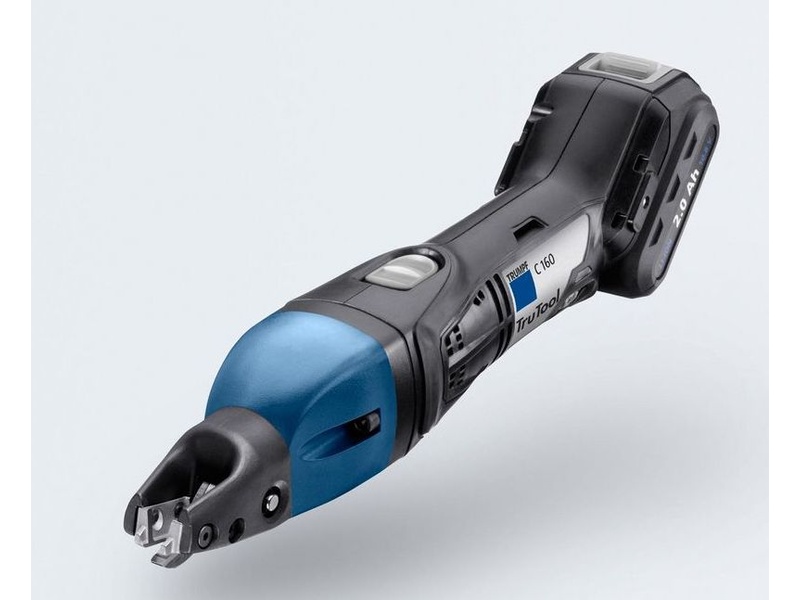

TRUTOOL C 160 (2A5) – 12V LiHD Rechargeable Battery (No Chip Clipper)

Compact, cordless slitting shear ideal for straight or curved sheet metal cutting where chip clipping isn’t needed.

Technical Data:

• Max thickness (mild steel): 1.6 mm
• Max thickness (stainless steel): 1.2 mm
• No chip clipper – ideal for full-length and clean cuts
• 4.0 Ah / 12V LiHD battery for long runtime

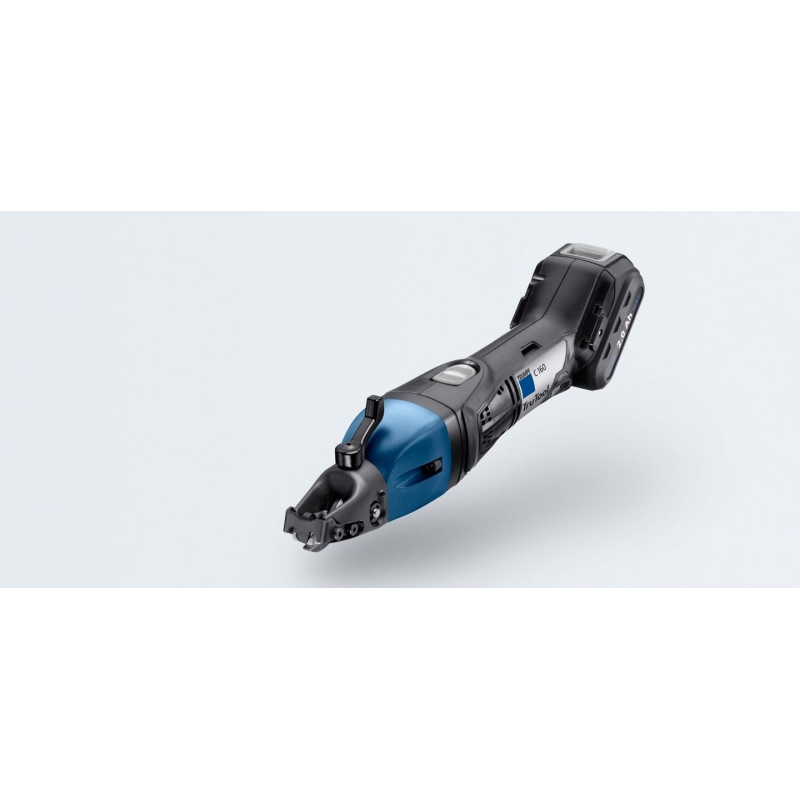

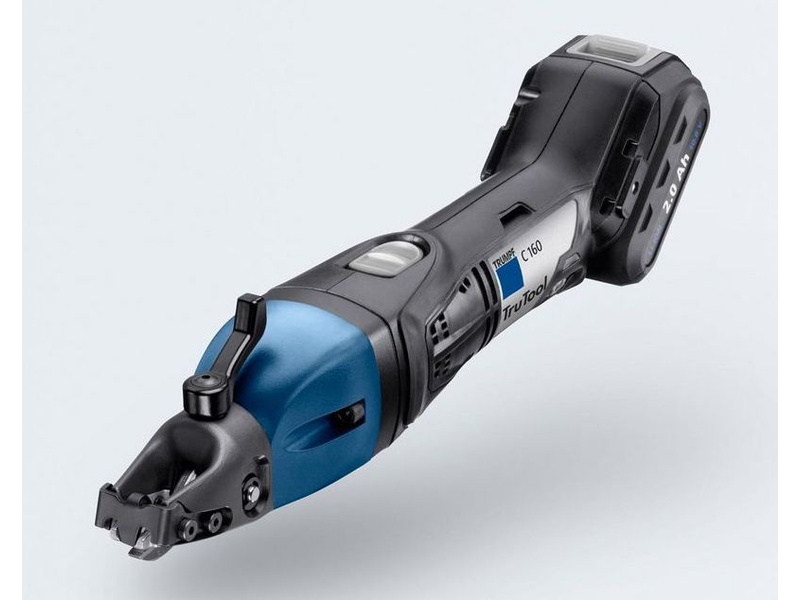

TRUTOOL C 160 (2B5) – 12V LiHD Rechargeable Battery with Chip Clipper

A two-handed cordless shear with an integrated chip clipper—ideal for notching and internal cuts.

Technical Data:

• Max thickness (mild steel): 1.6 mm
• Max thickness (stainless steel): 1.2 mm
• Built-in chip clipper for mid-cut exits
• 4.0 Ah / 12V LiHD battery for efficient operation

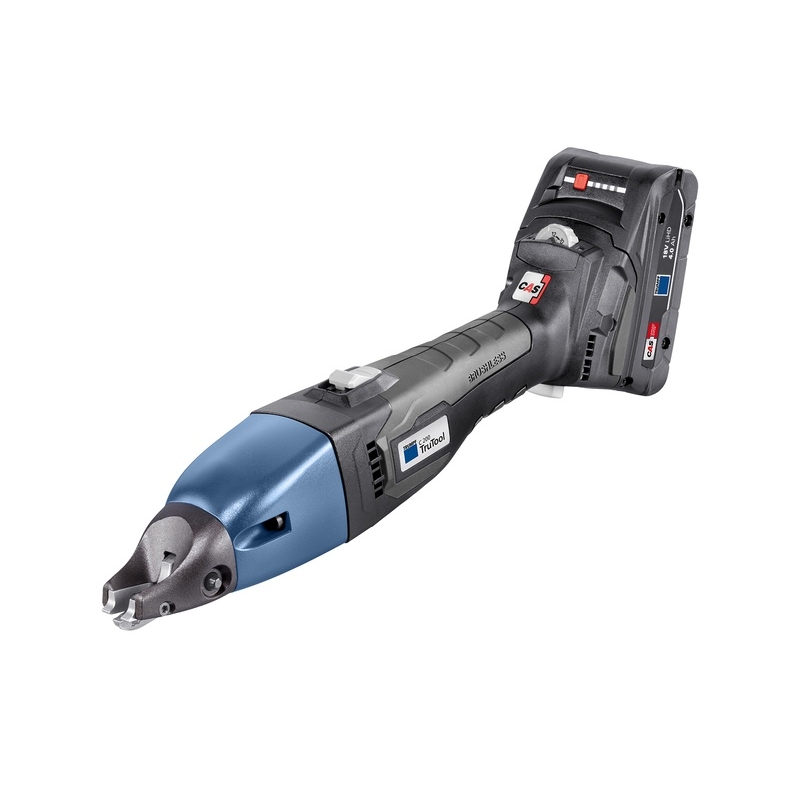

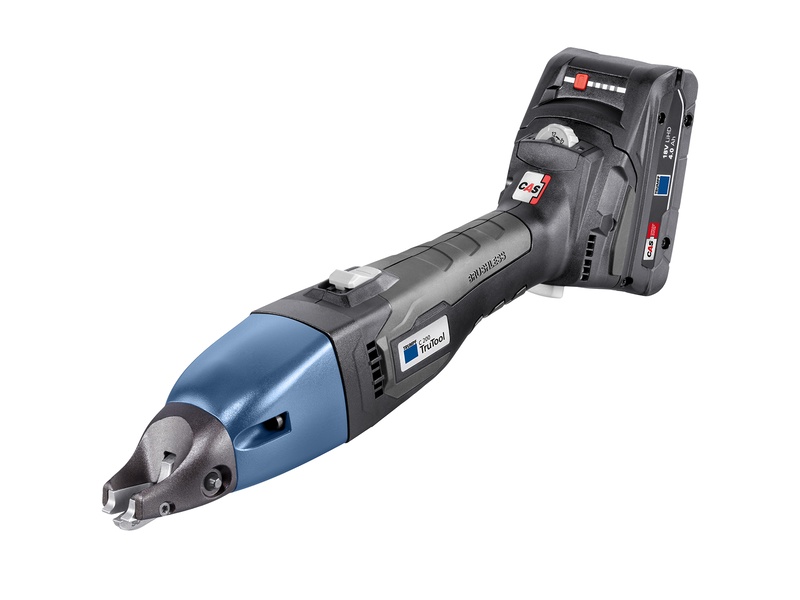

TRUTOOL C 200 (2A5) – 18V LiHD Rechargeable Battery

Versatile shear with open cutting head for fast removal from the sheet—no chip clipper needed. Perfect for spiral ducts and thick profiles.

Technical Data:

• Max fold thickness (mild steel spiral ducts): 3.6 mm
• Multiple toolsets available for material type, speed, and curve handling
• Strong steel cutting head
• 4.0 Ah / 18V LiHD battery for extended runtime

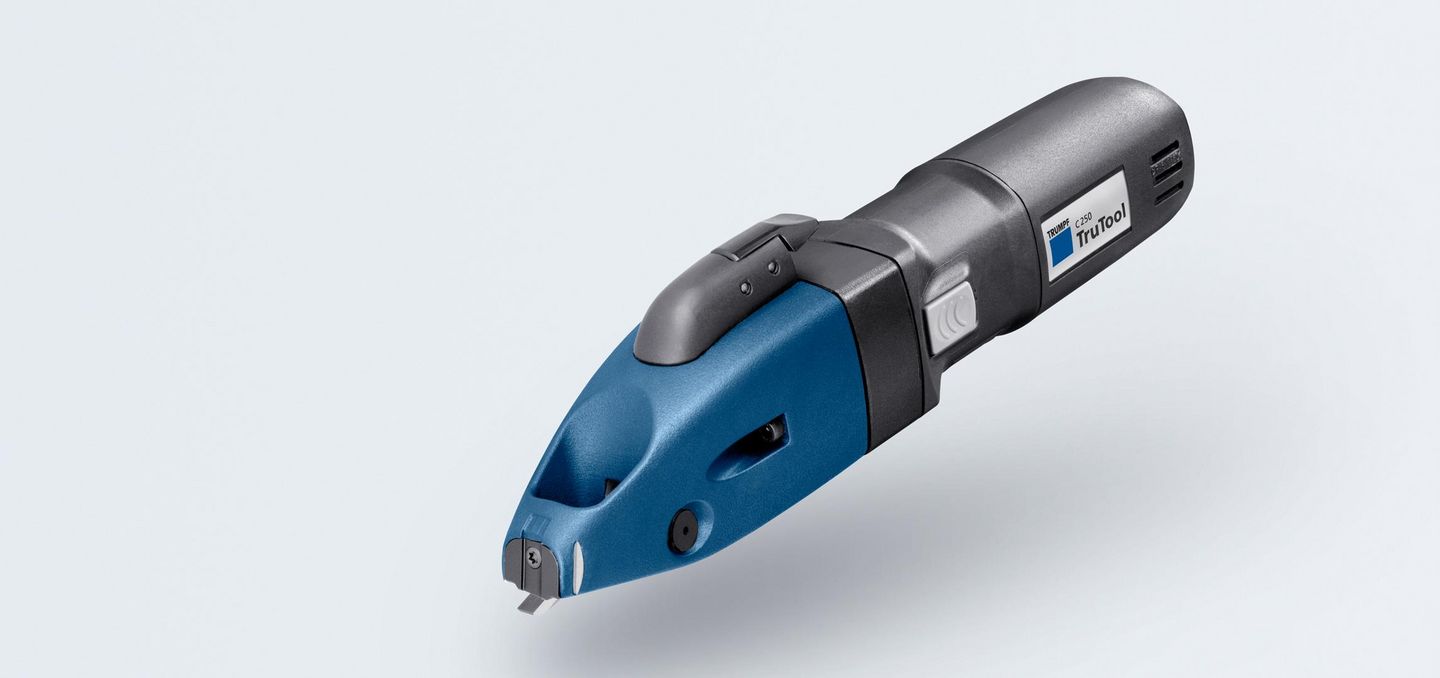

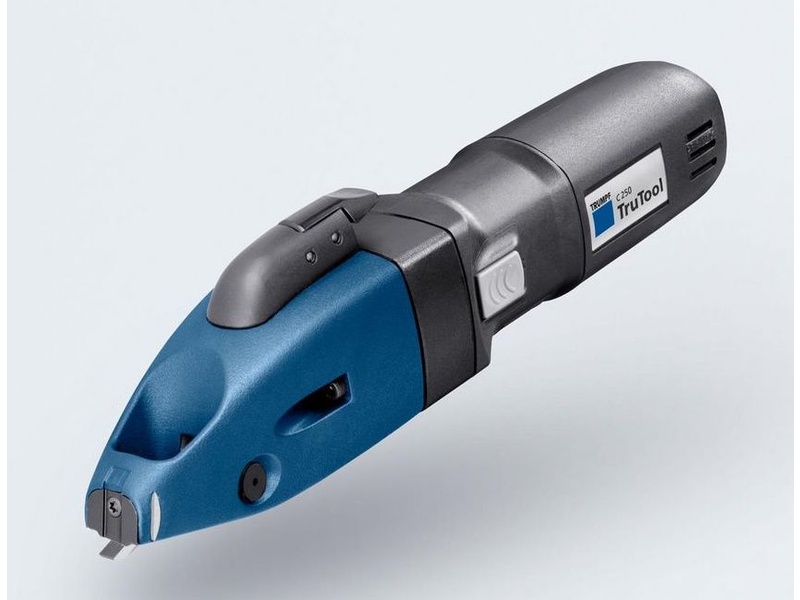

TRUTOOL C 250 (2B1) – Corded Power Tool with Chip Clipper

High-performance corded slitting shear with integrated chip clipper for one-handed use. Designed for fast, accurate work and easy repositioning.

Technical Data:

• Max thickness (mild steel): 2.5 mm
• Max thickness (stainless steel): 1.5 mm
• One-hand chip clipper
• Top speed up to 10 feet per minute

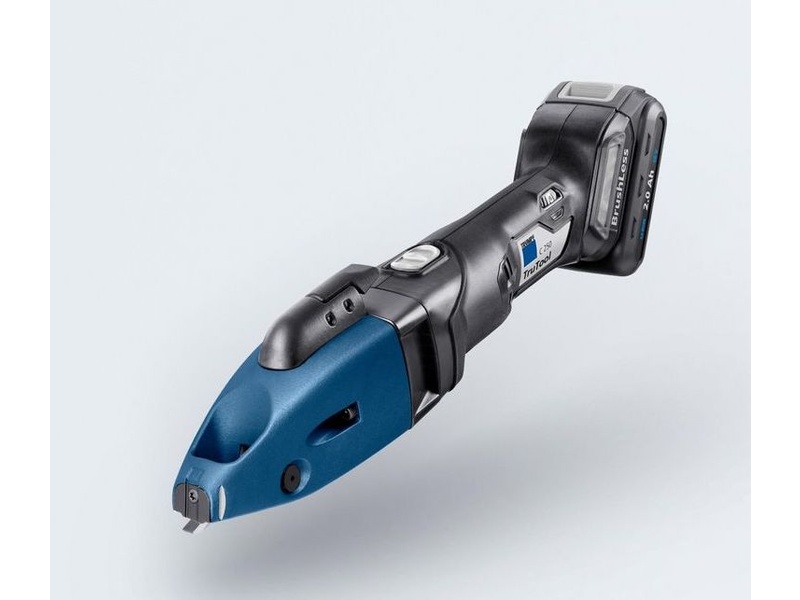

TRUTOOL C 250 (3B5) – 18V LiHD Rechargeable Battery with Chip Clipper

The most powerful cordless slitting shear in the range, offering high cutting capacity and built-in chip clipping.

Technical Data:

• Max thickness (mild steel): 2.5 mm
• Max thickness (stainless steel): 1.5 mm
• One-hand chip clipper
• Ideal for notching, cut-outs, and large sheets
• 4.0 Ah / 18V LiHD battery for long operation time
