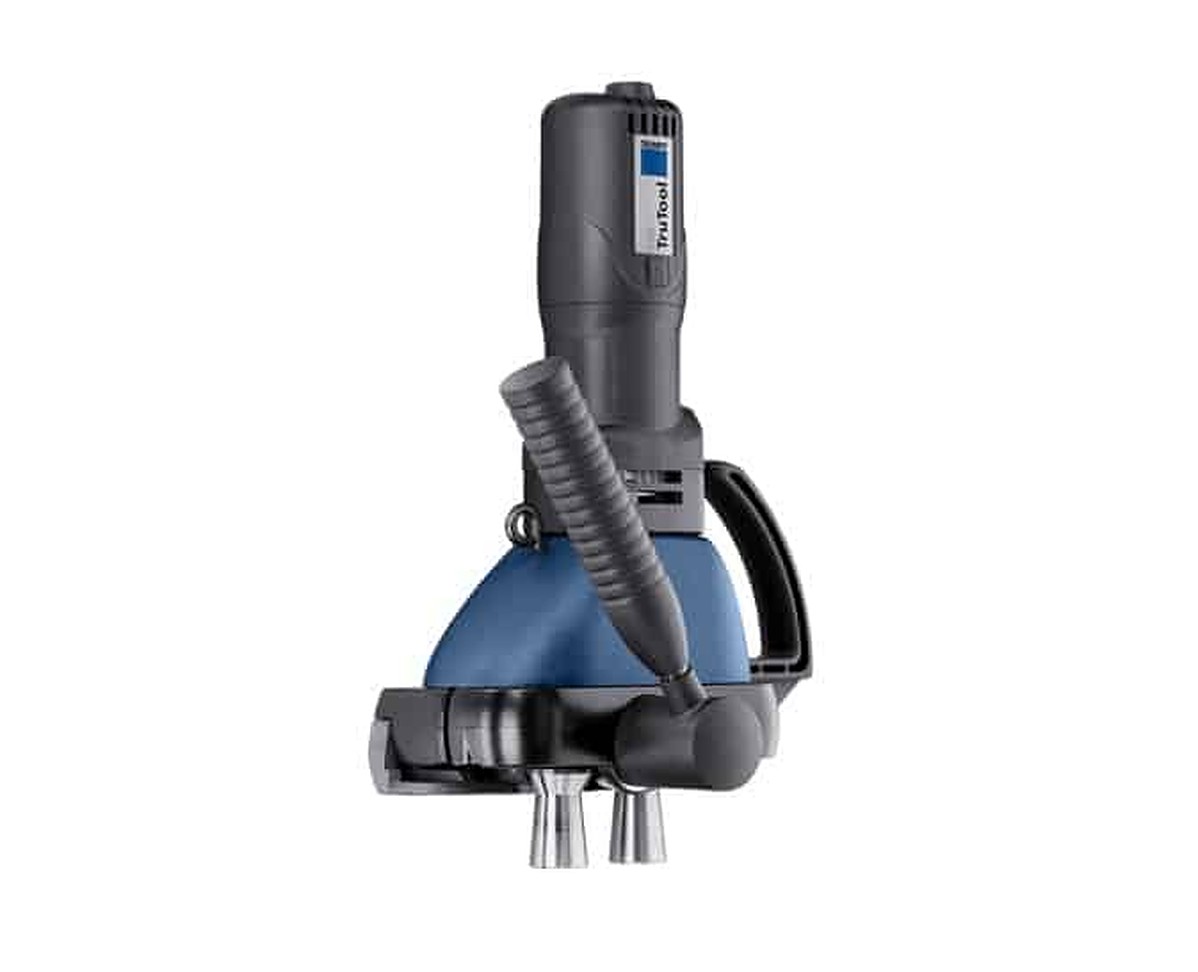

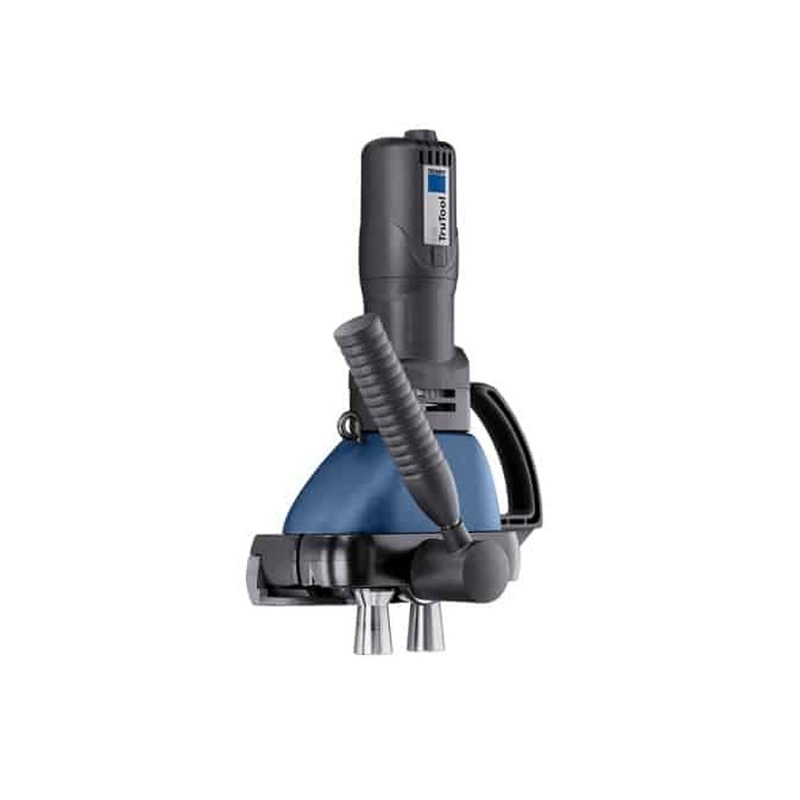

TRUMPF TRUTOOL SEAM LOCKER

TRUMPF TRUTOOL SEAM LOCKER

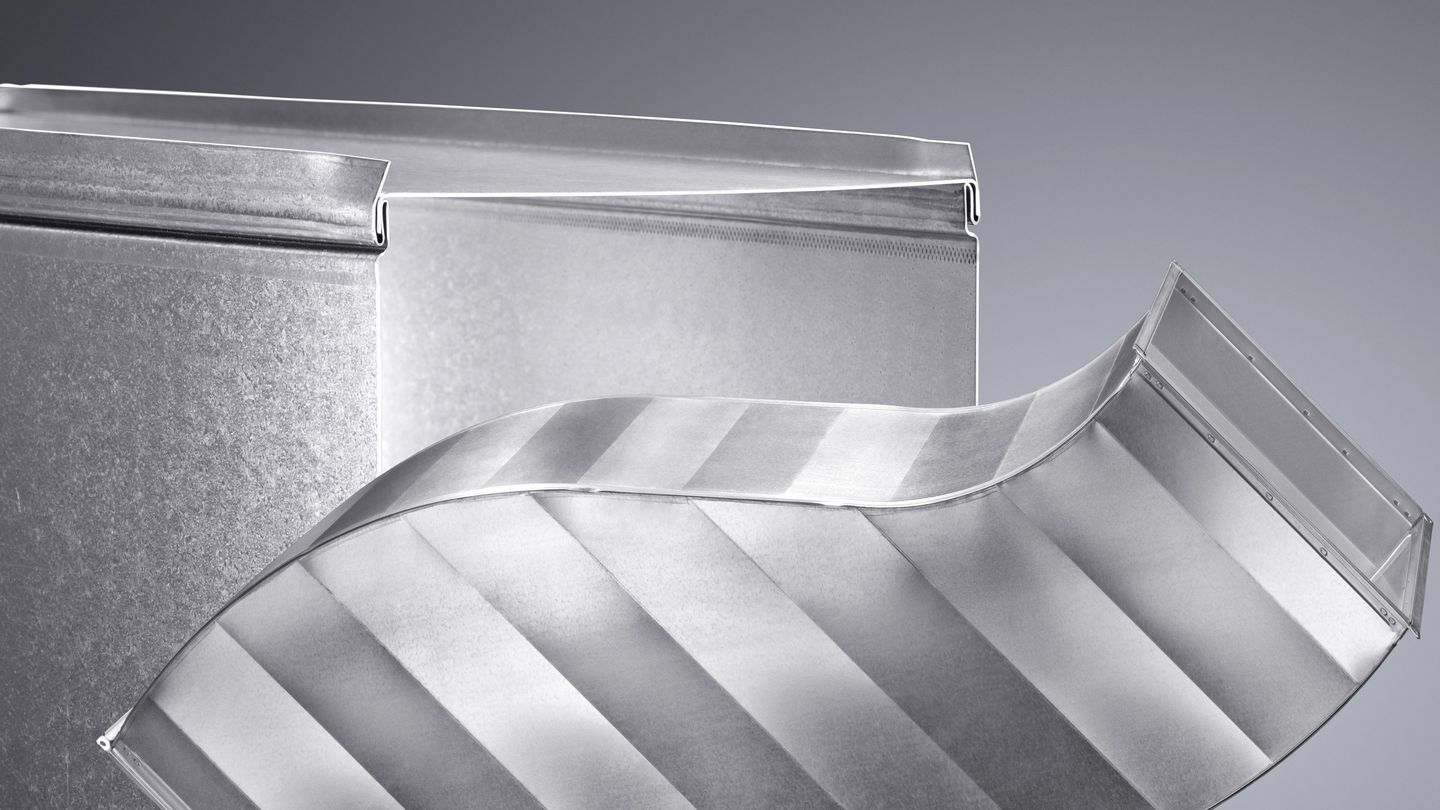

A fast and efficient solution for sealing Pittsburgh, angle, and standing seams in ductwork, façades, and industrial applications. With automatic feed and ergonomic handling, TruTool seam lockers produce tight, consistent joints, making them ideal for both on-site and workshop use. Quiet, low-vibration operation ensures a comfortable user experience with high-quality results.

Uses:

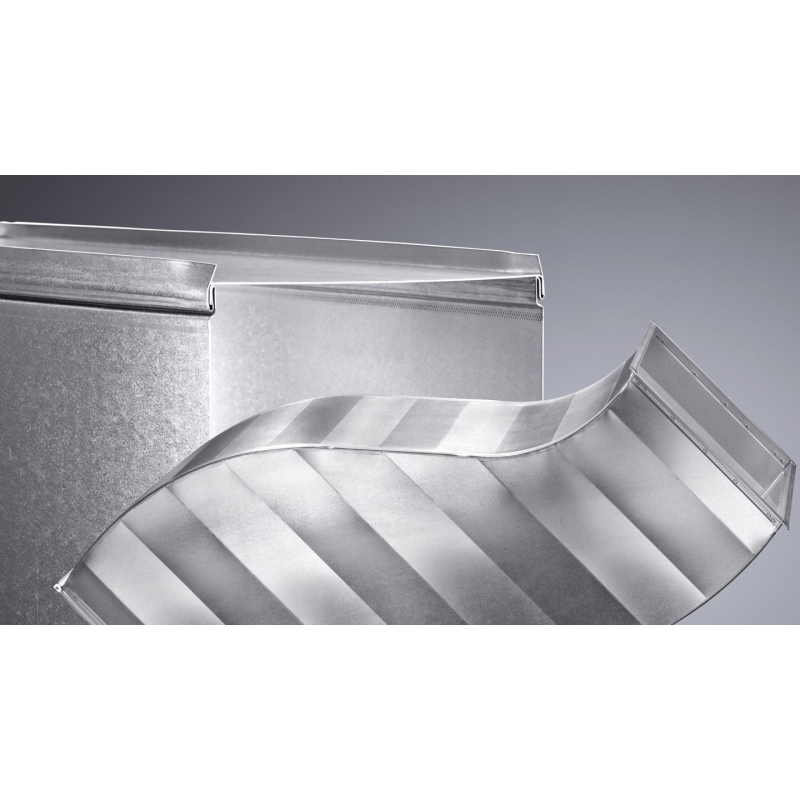

• Sealing Pittsburgh lock seams on straight and curved ducts
• Working with angle and standing seams
• Applications in HVAC, façade cladding, chimney flashings, and industrial fans
• Mobile use at installation sites

Product Details:

• Tight seam joints with automatic feed
• Quick, low-noise, and low-vibration operation
• Simple handling with minimal setup time
• Designed for use directly at the assembly point
• Suitable for both straight and curved duct geometries
• Lead time: 3–4 weeks
• 5-year warranty with online registration
• Made in Switzerland

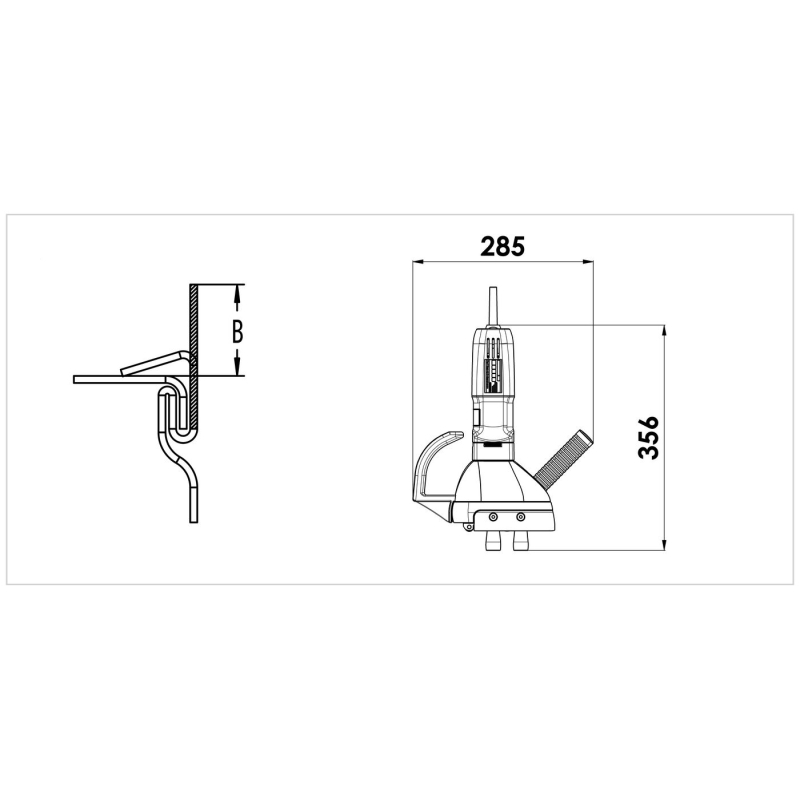

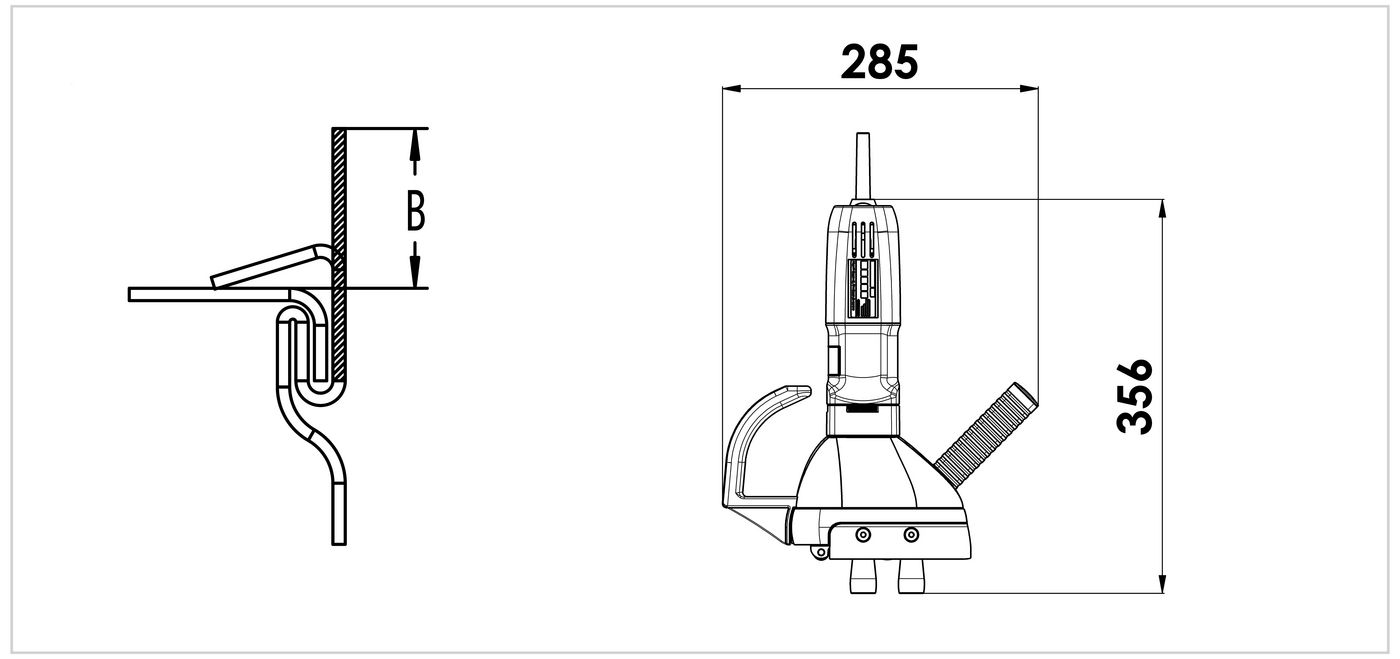

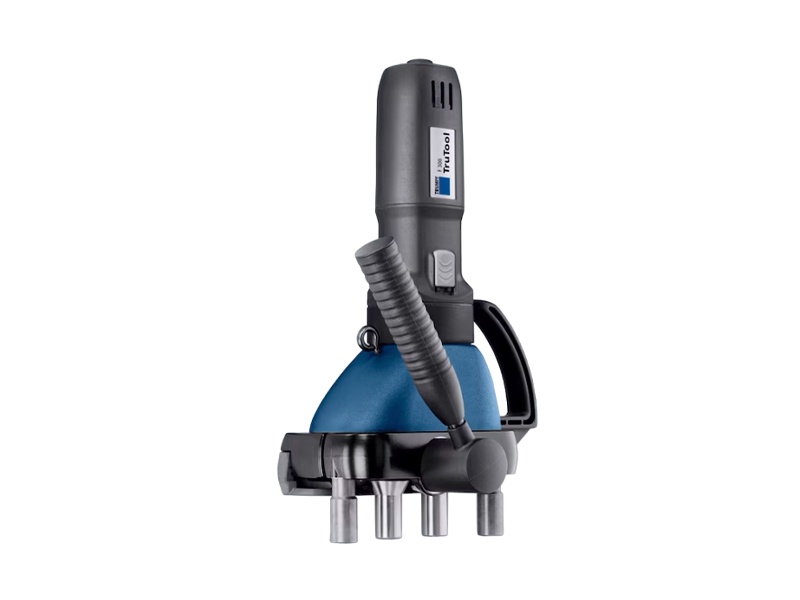

TRUTOOL F 300 (2A1)

A compact seam locker ideal for site work, designed to close Pittsburgh seams quickly and cleanly on straight or curved ducts.

Technical Data:

• Mild steel: 0.75 – 1.25 mm
• Automatic sheet thickness adjustment
• Quiet glide/roll feed for a tight connection
• Ideal for general HVAC and ducting applications

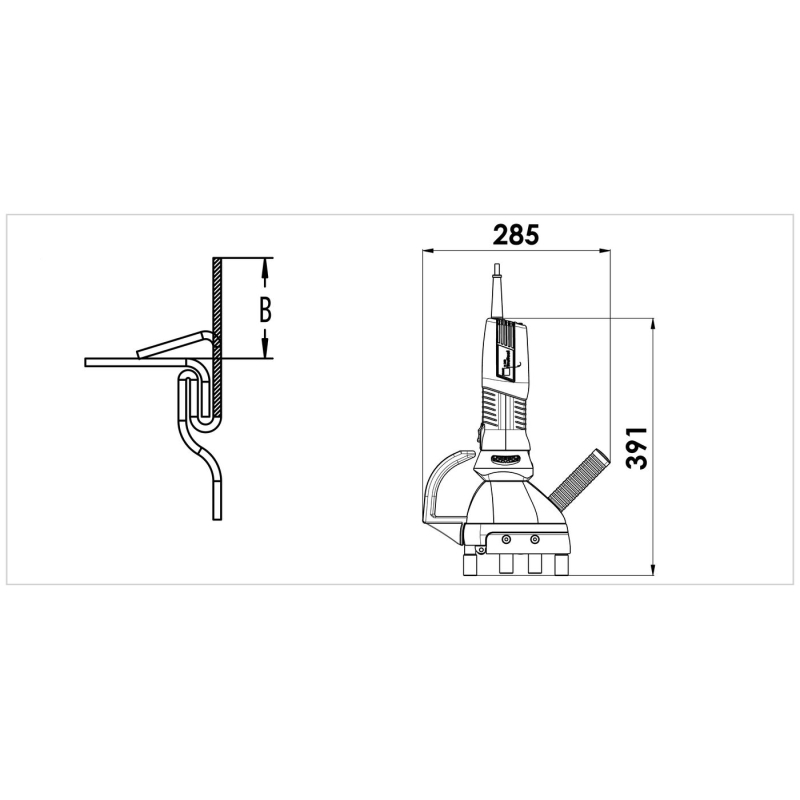

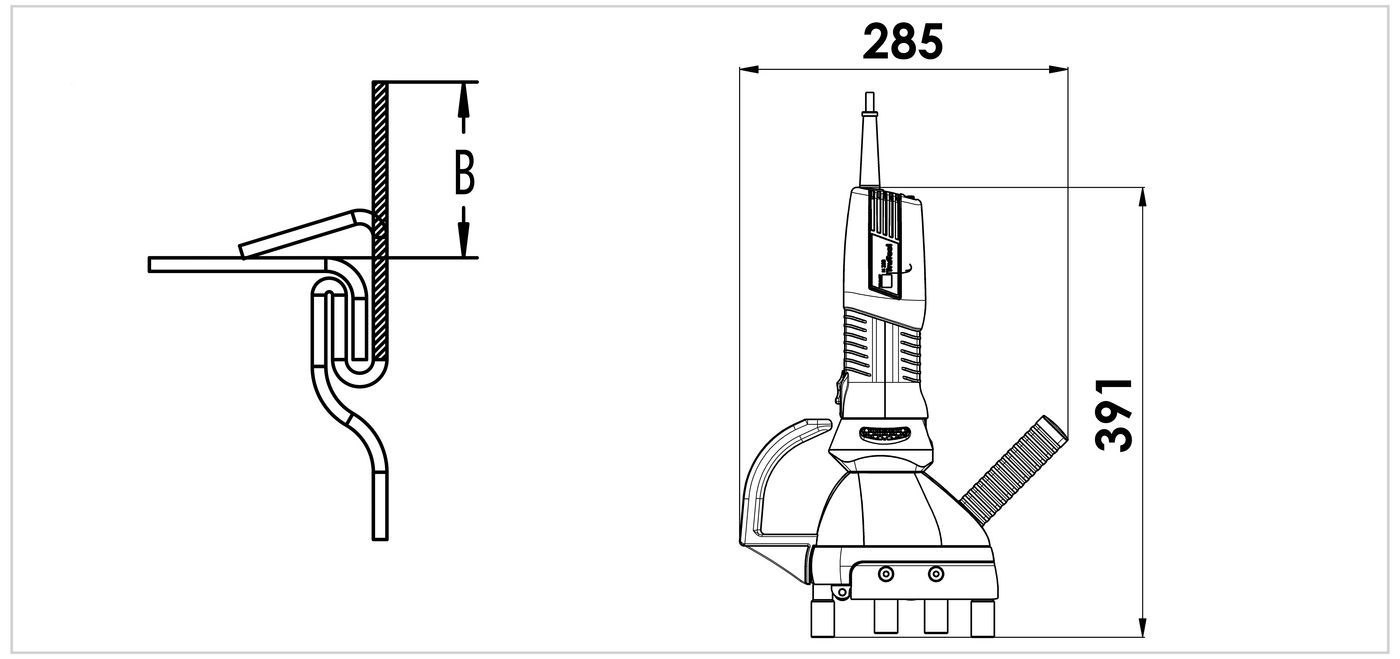

TRUTOOL F 300 (3B1) – 1700 W Motor

A more powerful variant of the F 300, suited for thicker materials and higher productivity. Ideal for contractors needing speed and consistent seam quality.

Technical Data:

• Motor: 1700 W
• Mild steel: 0.75 – 1.25 mm
• High working speed and reliable sealing
• Automatic sheet thickness adjustment
• For high-demand duct installations

TRUTOOL F 301 (2A1)

Designed for thinner mild steel ducts, this model delivers smooth sealing with no refitting needed for formed or folded parts.

Technical Data:

• Mild steel: 0.45 – 1.00 mm
• Automatic sheet thickness adjustment
• Consistent seam tightness with forward feed
• Perfect for lightweight ducts and curved sections
