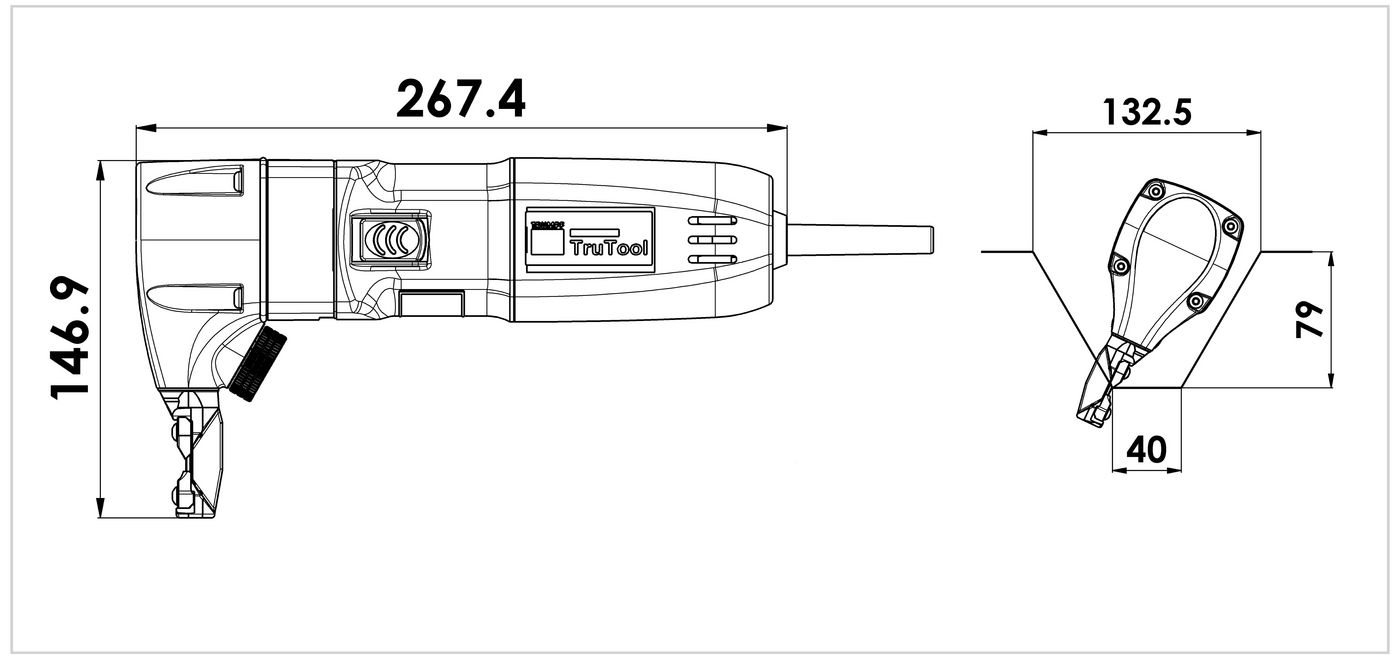

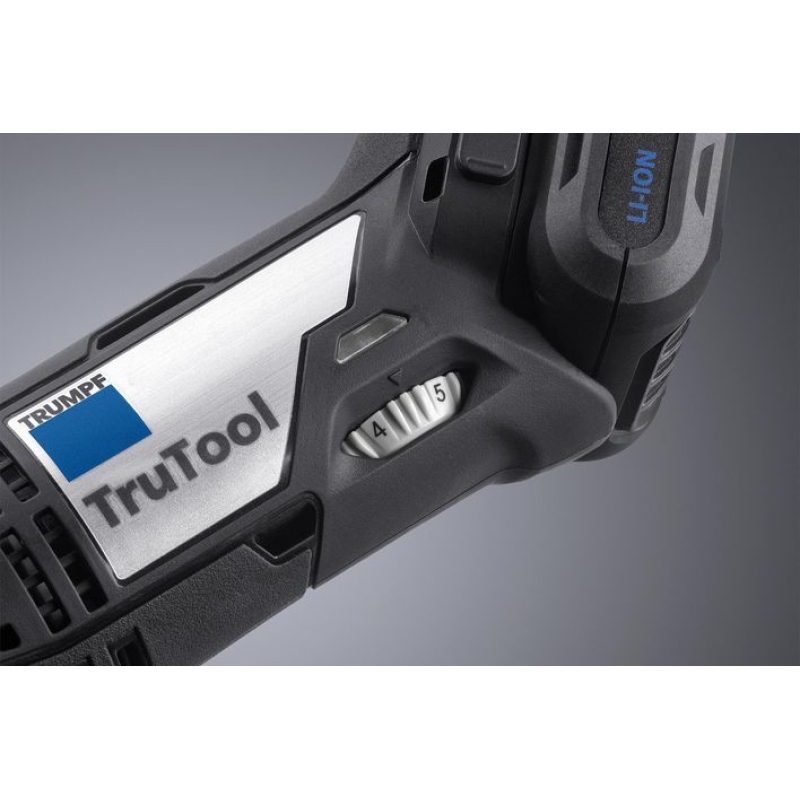

PN 200PN 200PN 200PN 200PN 200DIMENSIONAL DRAWINGSPEED CONTROLLERPUNCH GUIDESTANDARD DIETOOL PN 200WEAR PLATESTANDARD PUNCHRETRO FIT TOOLSBOX S1TRAPEZOIDAL SHEETCORRUGATED SHEET METALPROFILEMADE IN SWITZERLAND

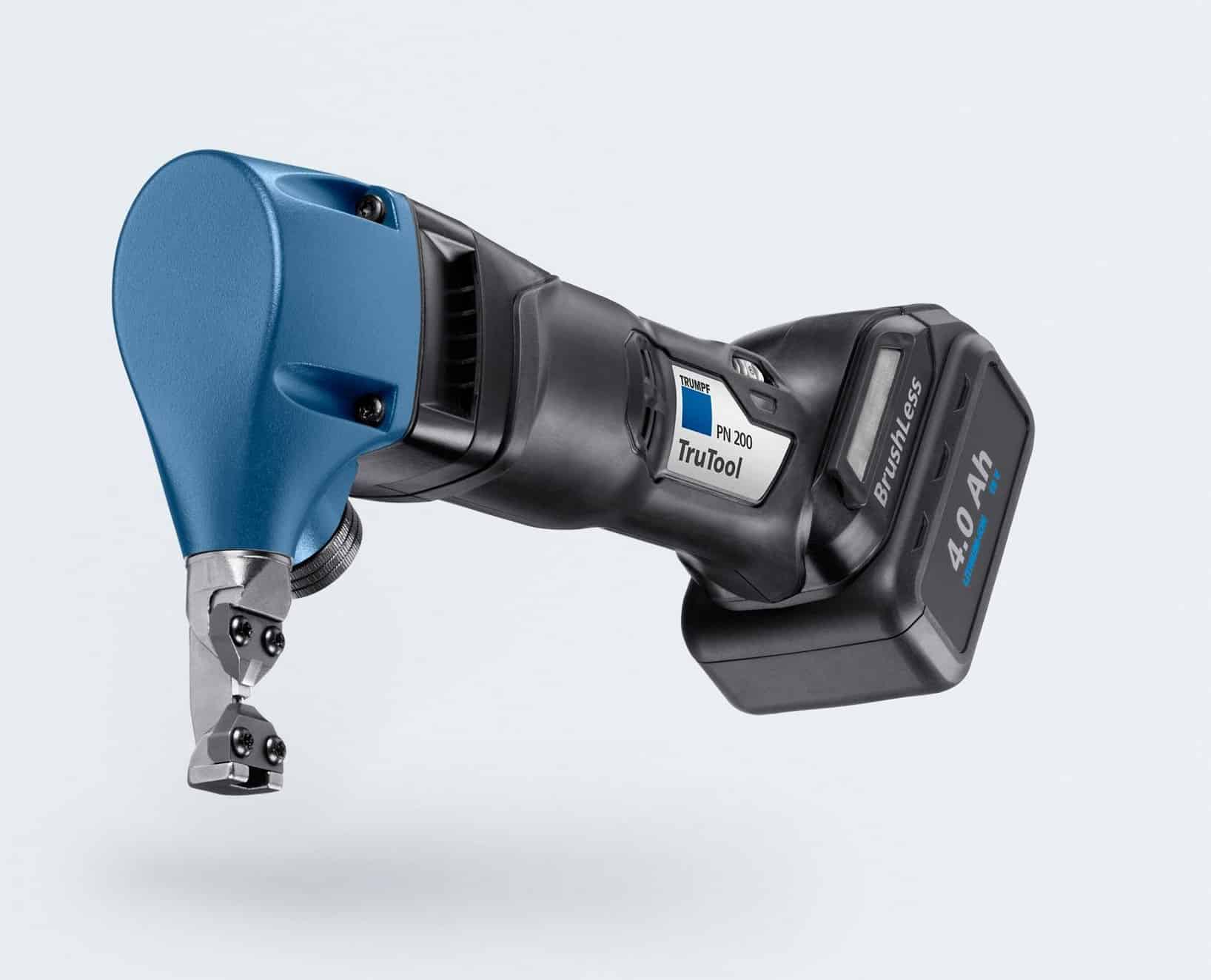

TRUMPF TRUTOOL PN 200 PROFILE NIBBLER POWERTOOL

Watch video

MADE IN SWITZERLAND WITH 5 YEARS WARRANTY

SKU

TRU1751836

Price

On Request

Add to wishlist

Description

Profile nibbler:

Not only for profiles. TRUMPF has developed the perfect tools for tinsmiths, plumbers, as well as roof and façade constructors: With our profile nibblers, you can work in a way that is gentle on surfaces. You always achieve visually high quality edges without corrosion or oxidation.

  • Distortion-free cutting edges without corrosion: Profile nibblers are gentle on surfaces, resulting in visually high quality edges.
  • Comfortable operation: You can work quickly, and with low vibration, making fast progress.
  • Optimal contouring and profiling: Ideal for hard-to-reach places – you can change the cutting direction at any time.
  • Punch and tool carrier can be changed without tools: The changeover does not require tools and is extremely fast, enabling you to keep setup times to a minimum.
  • Low operating costs: Since the punches can be reground several times, you can achieve a long service life.

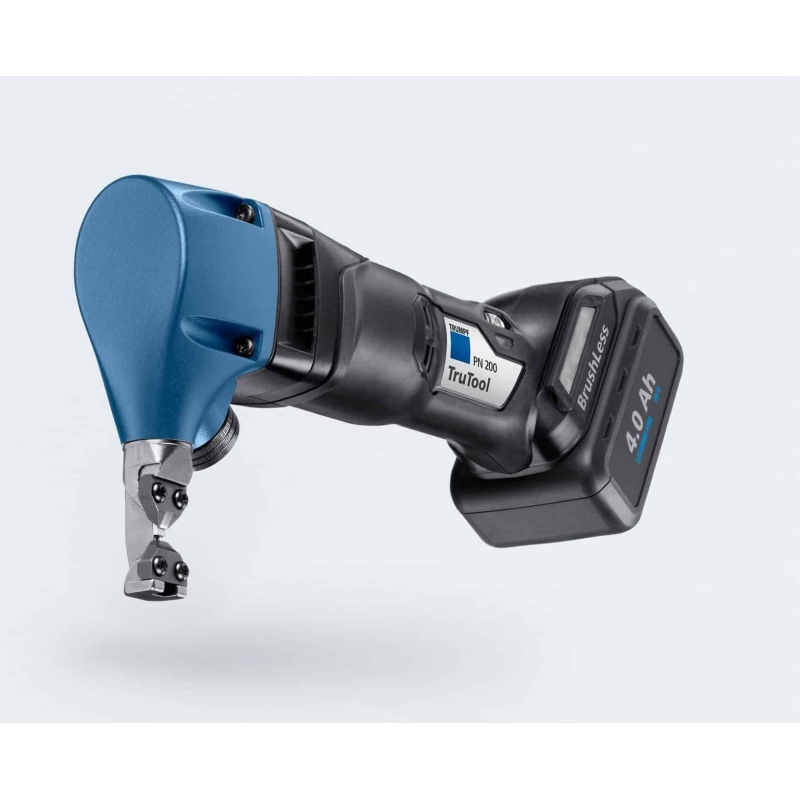

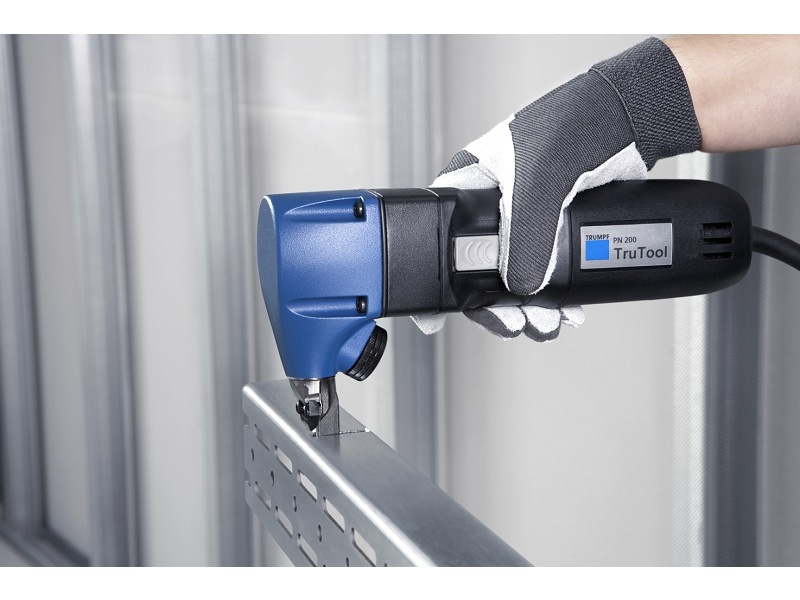

TRUTOOL PN 200 PROFILE NIBBLER

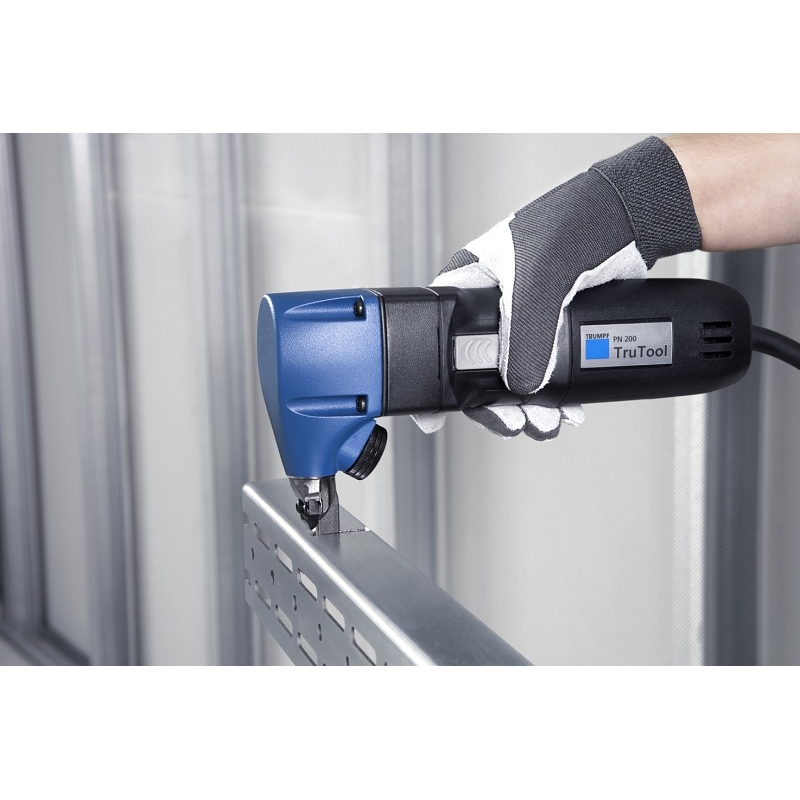

Powerful and flexible for profiles, up to a depth of 85mm. With its short tool, the TruTool PN 200 is specifically designed for trapezoidal sheets up to a profile depth of 85 mm and C-L-U profiles. Its performance is powerful enough for up to 2 mm in mild steel and 1 mm in stainless steel and it even cuts doubled sheets. You can also rotate the tool through 360° on the spot. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. You can choose from various tool depths to broaden the areas of application.

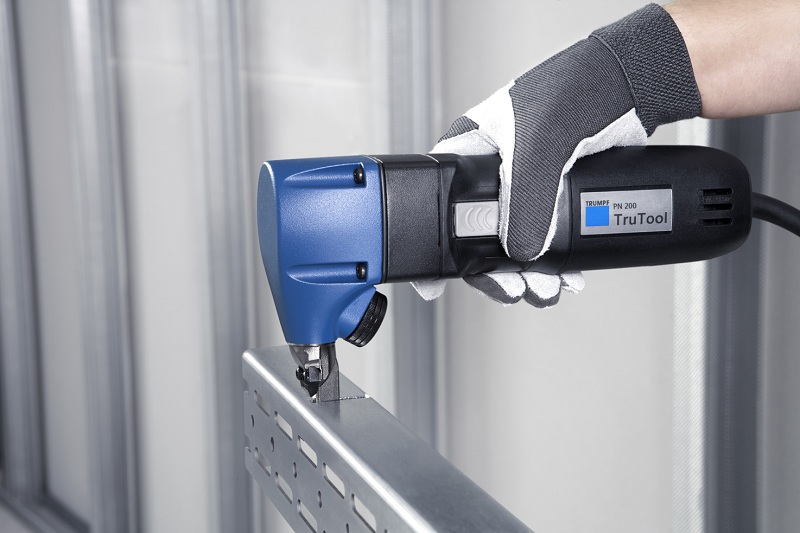

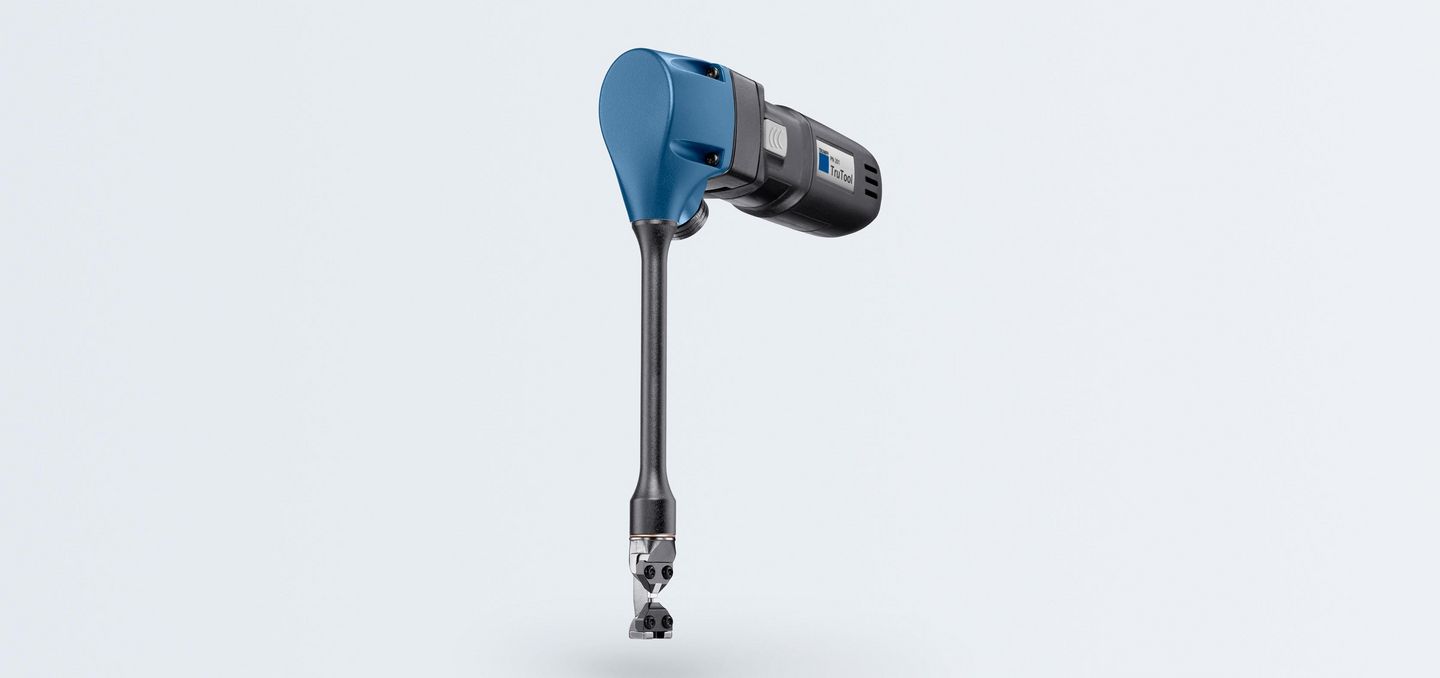

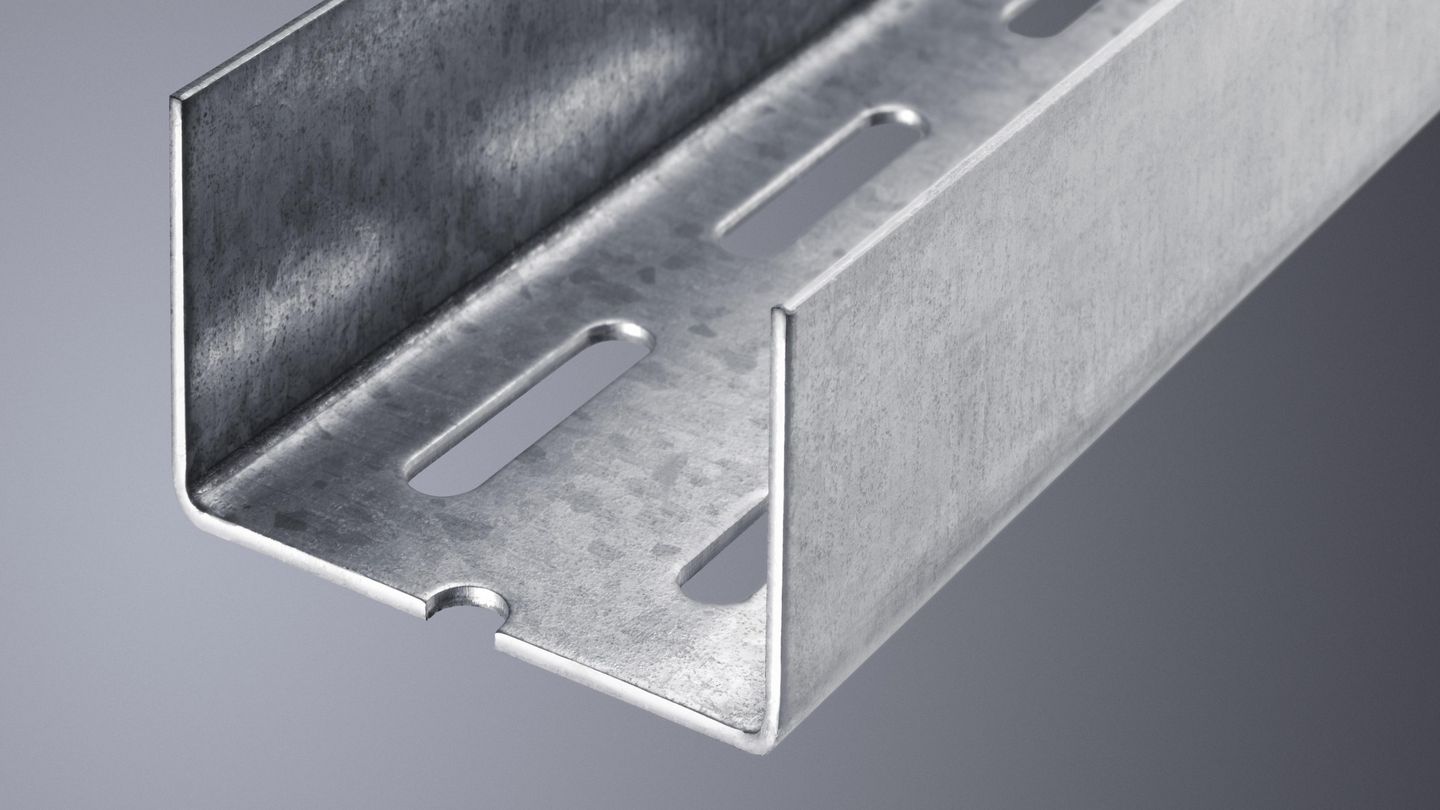

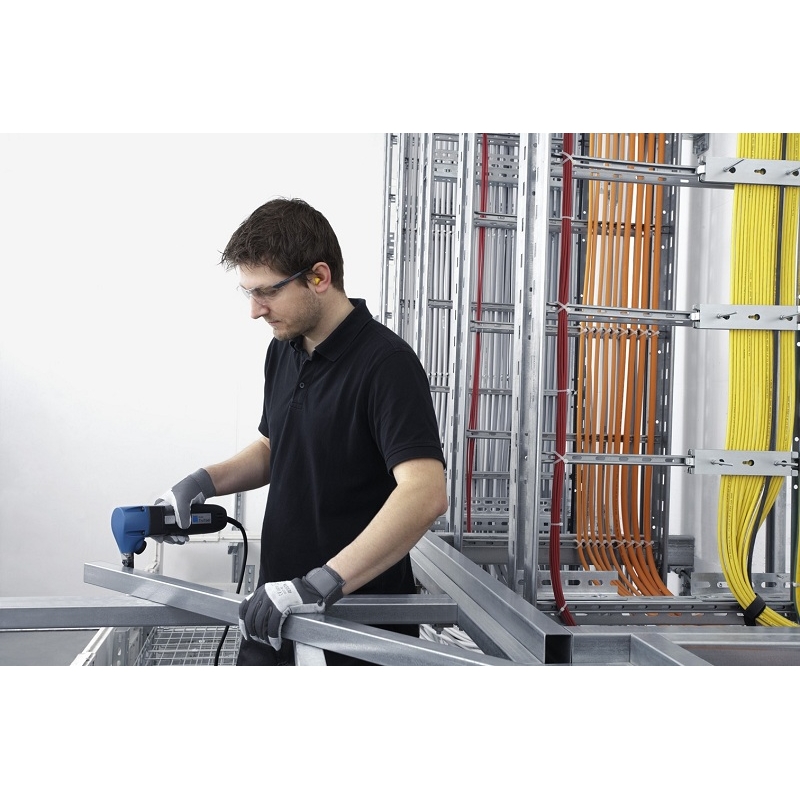

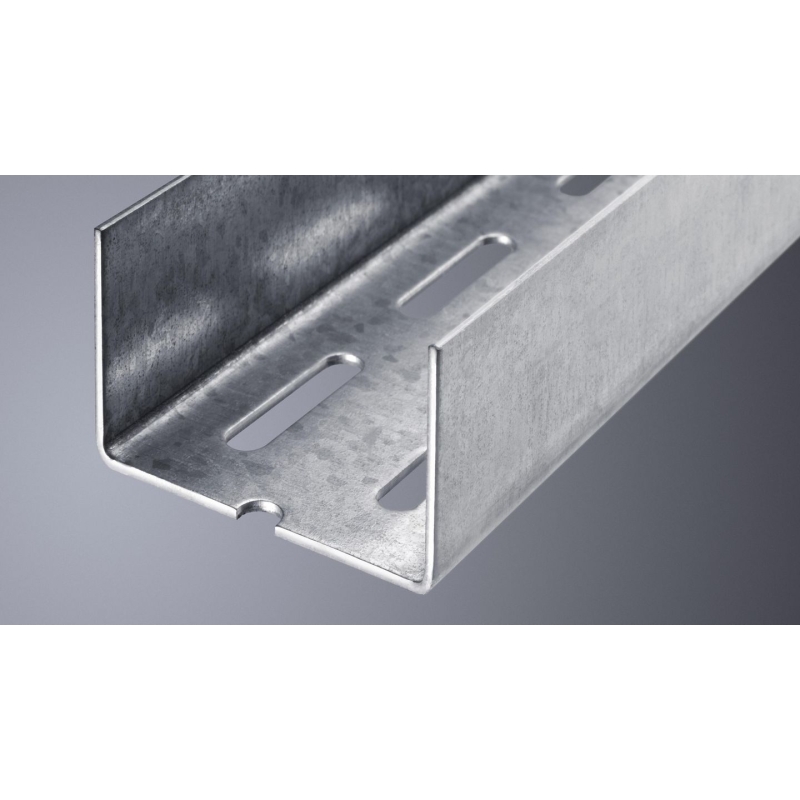

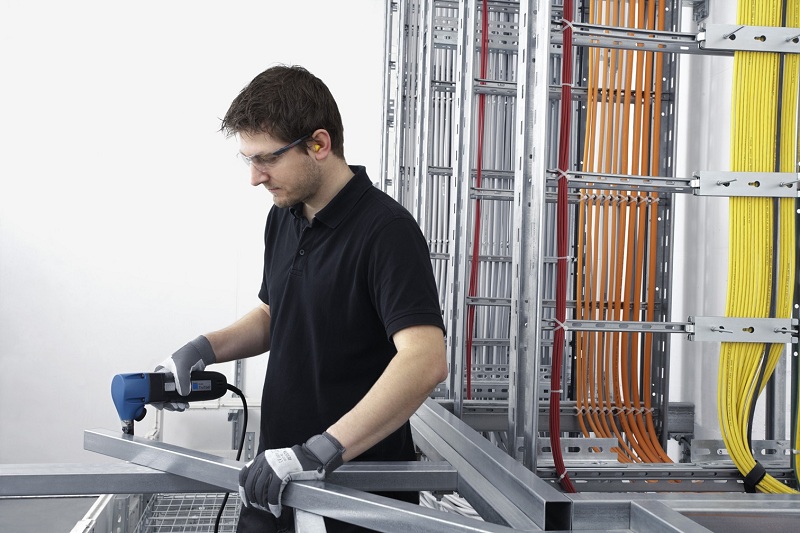

  • Machine with short tool: For processing profile depths of up to 85 mm and C, L, and U profiles. It is also well-suited for corrugated sheet.
  • Ideal for hard-to-reach places: You can easily adjust the working direction through 360 degrees, in steps of 45 degrees, without tools.
  • Minimizes setup times: The punch and die carrier can be changed quickly without tools.
  • Unbeatably fast: Fast and powerful with 2.1 metres per minute in 400N/mm2 mild steel.

Applications:

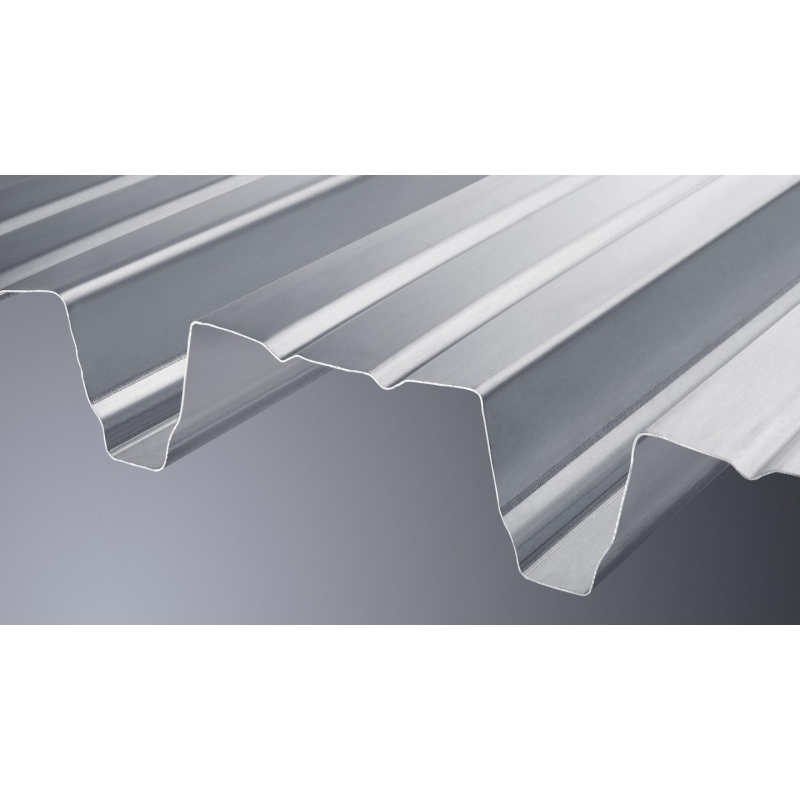

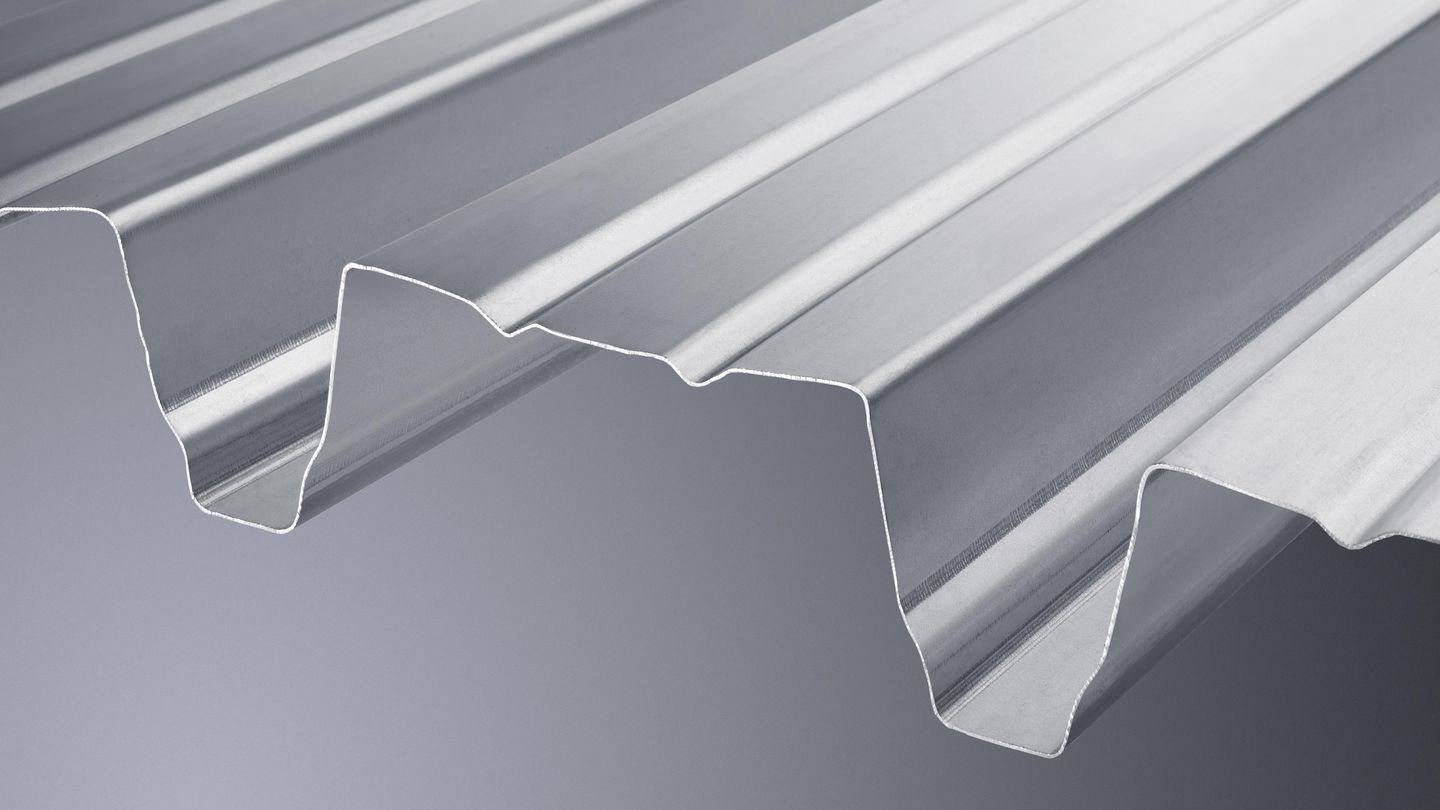

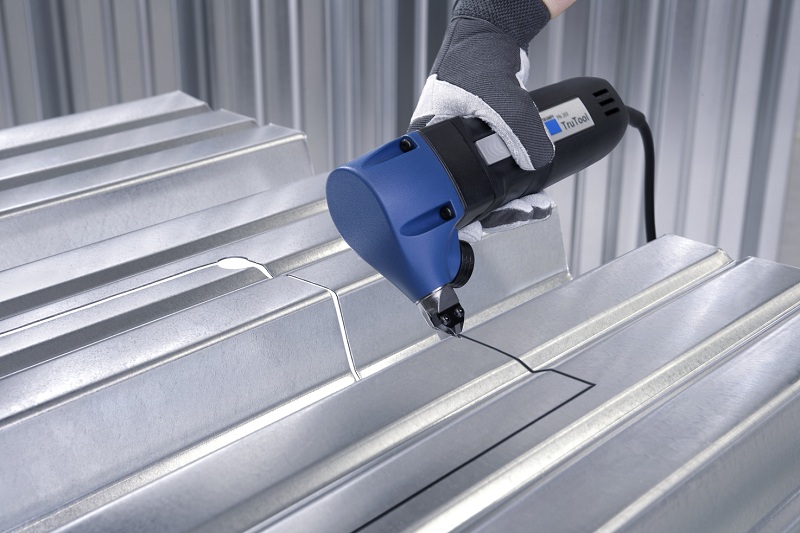

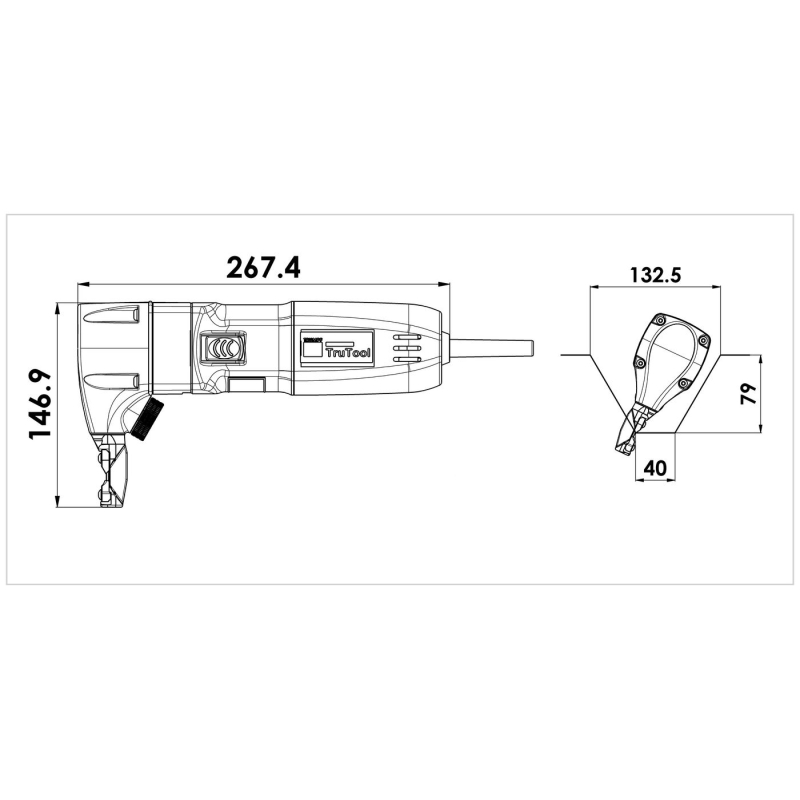

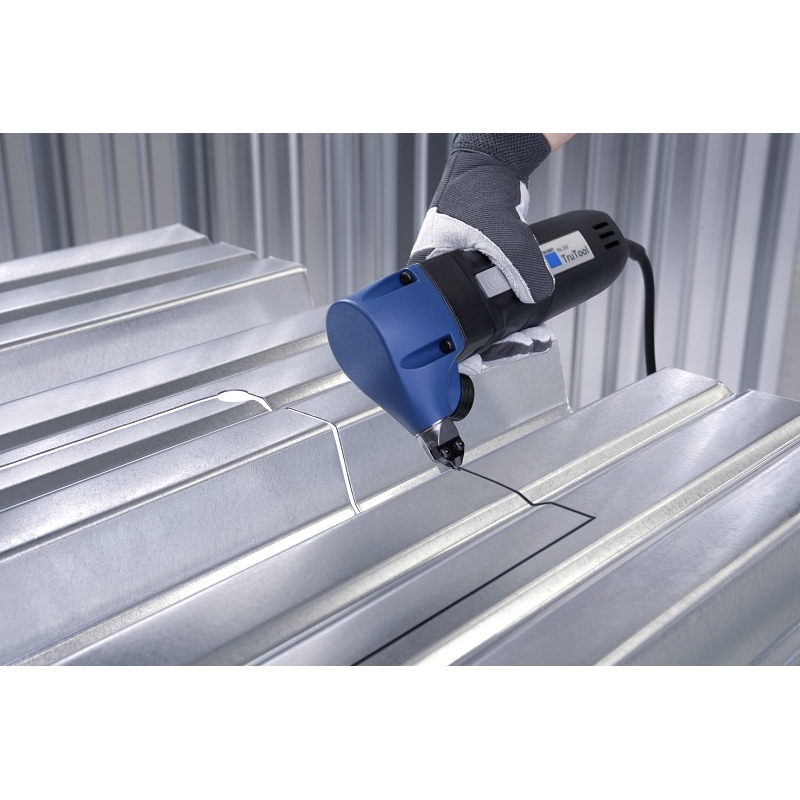

  • TRAPEZOIDAL SHEET: For cutting profile depths of up to 86 mm and 132.5/40 mm wide. For straight and diagonal cuts.
  • FLAT SHEET: For cutting and trimming flat sheets. For radial and interior cutouts, as well as notches.

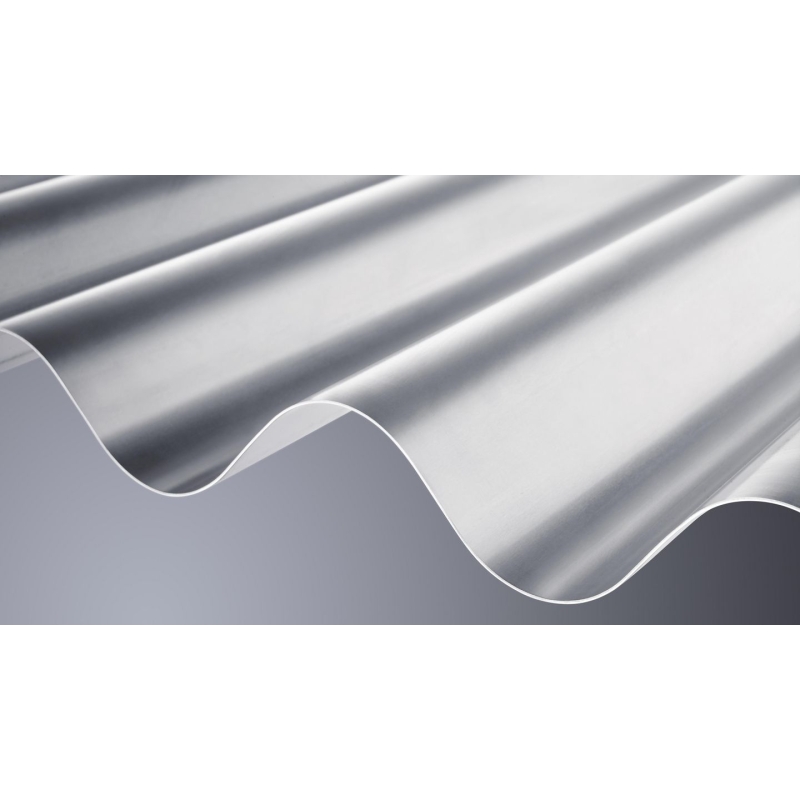

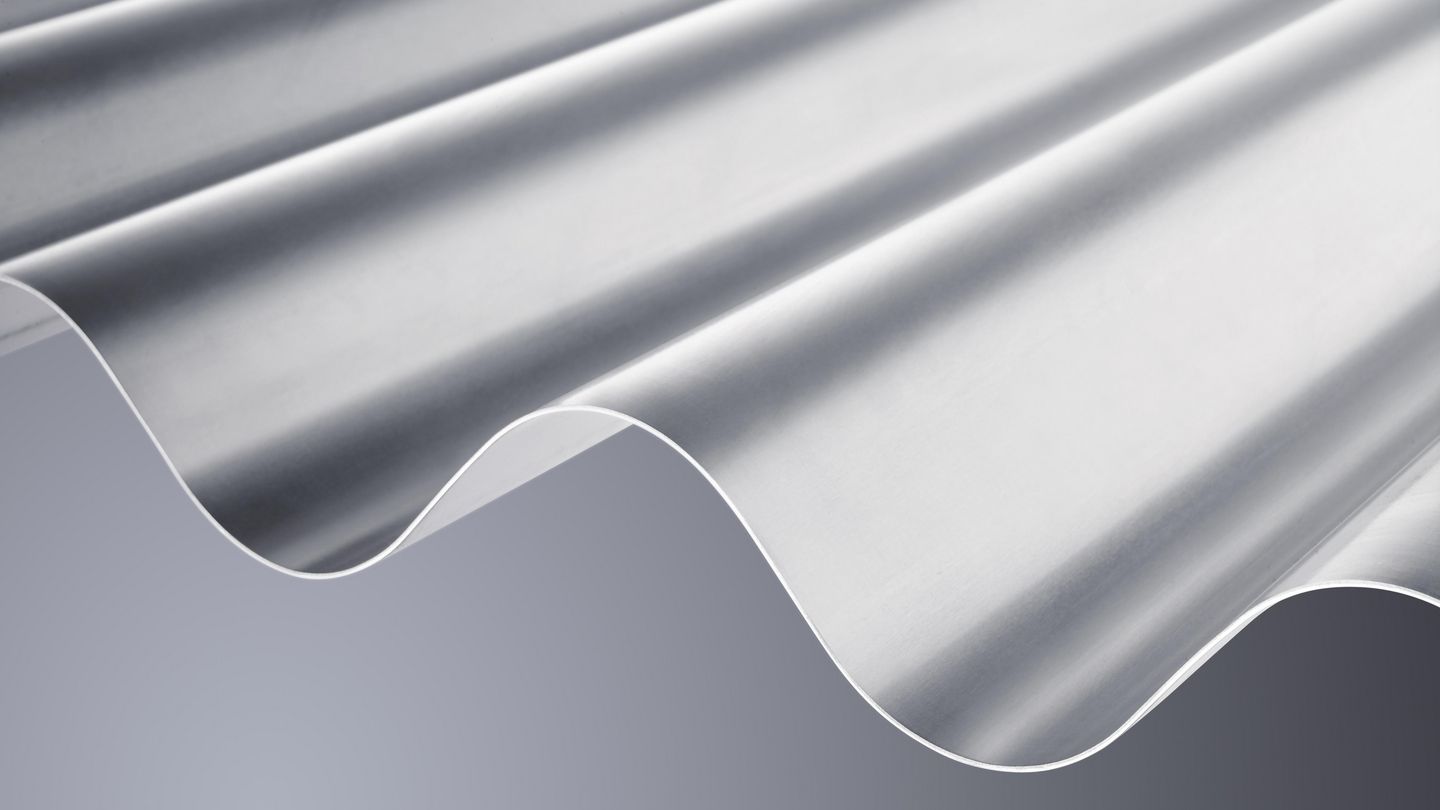

  • CORRUGATED SHEET: For trimming to length and cutting. For diagonal cuts, interior cutouts and radial cuts.

Included accessories Trutool PN 200:

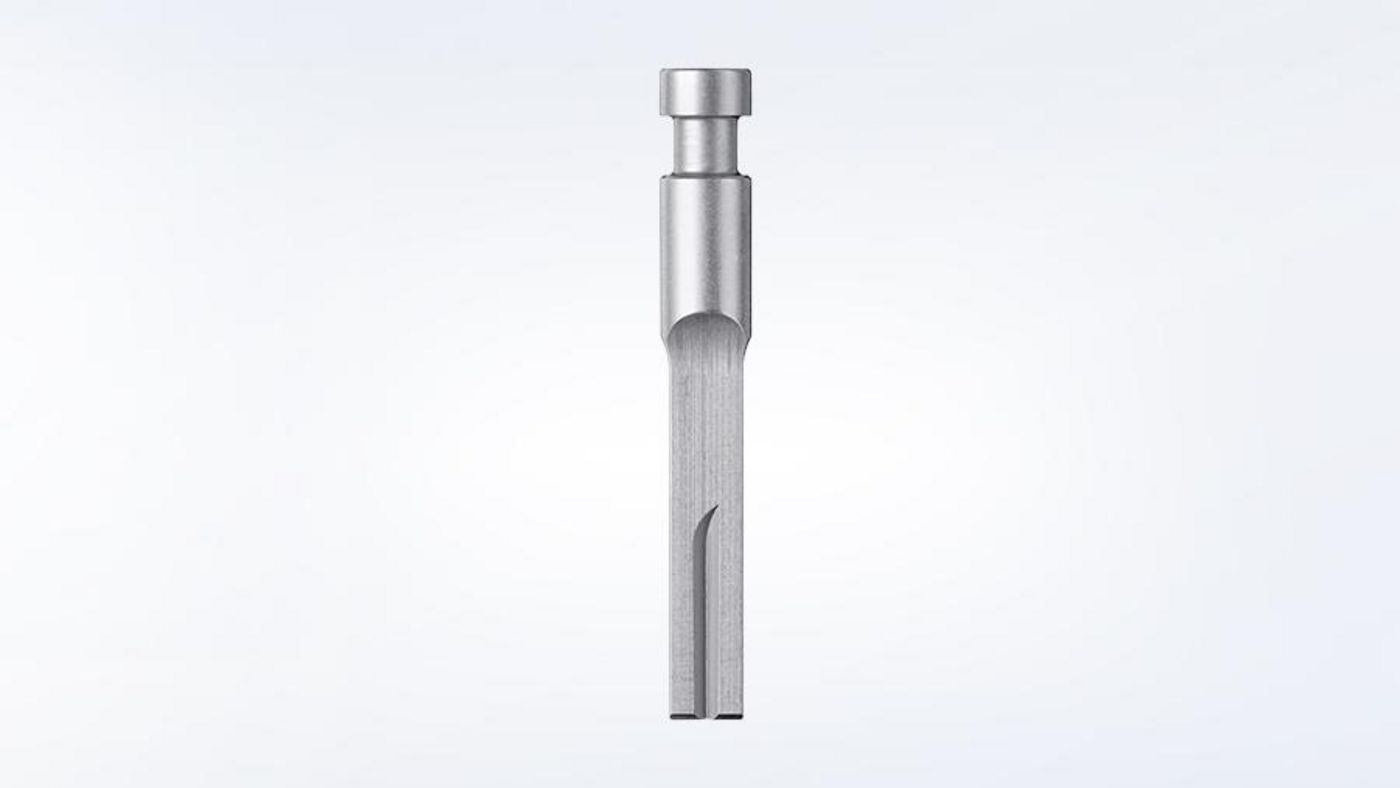

  • Standard Punch

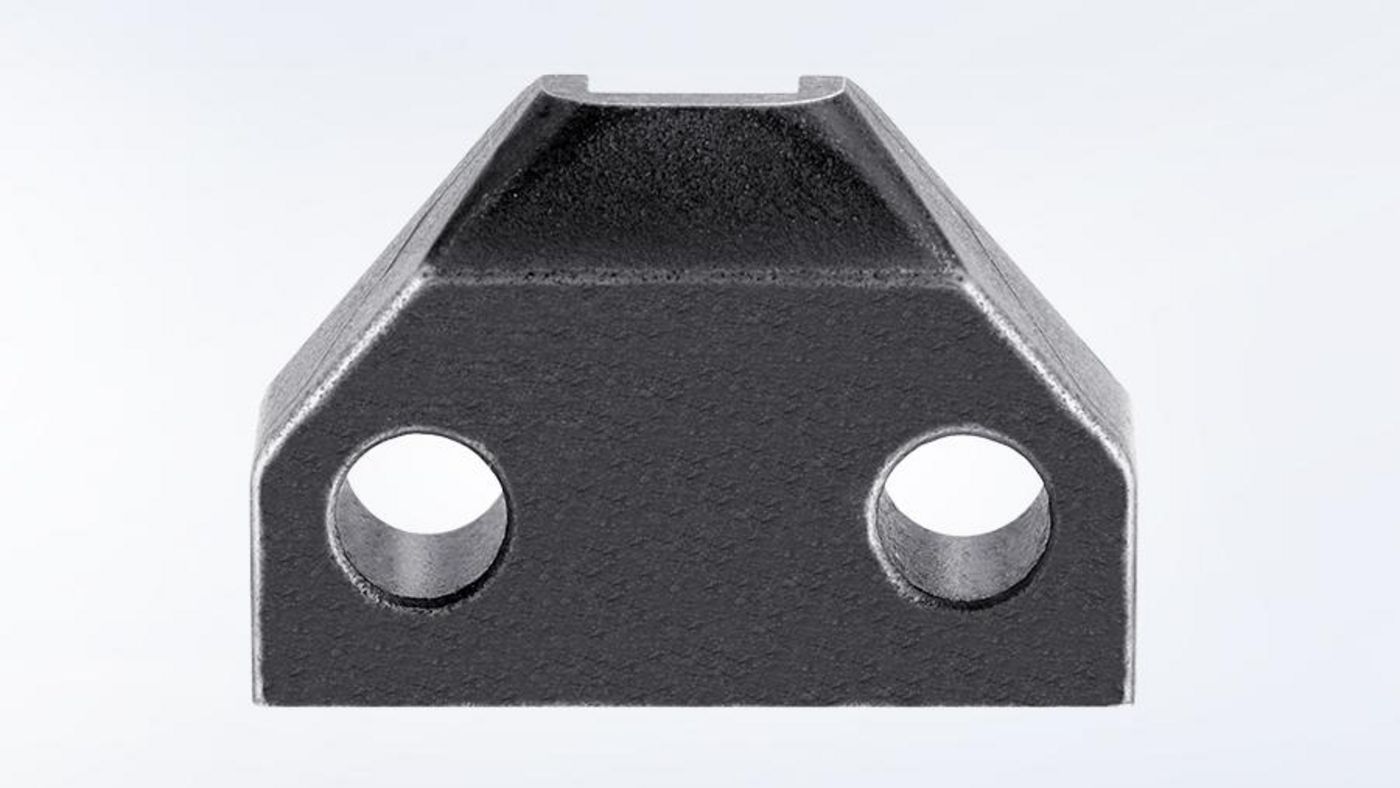

  • Standard Die
  • Punch guide

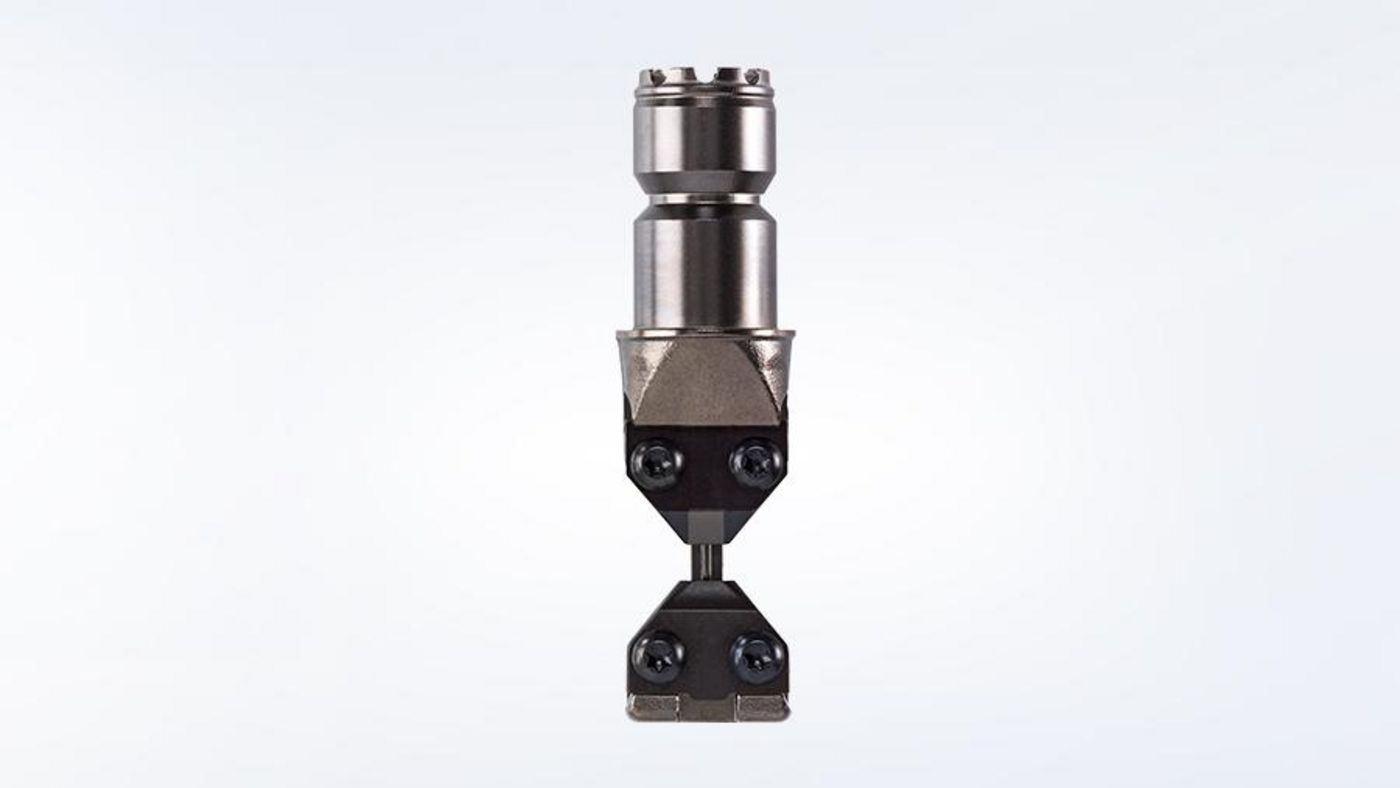

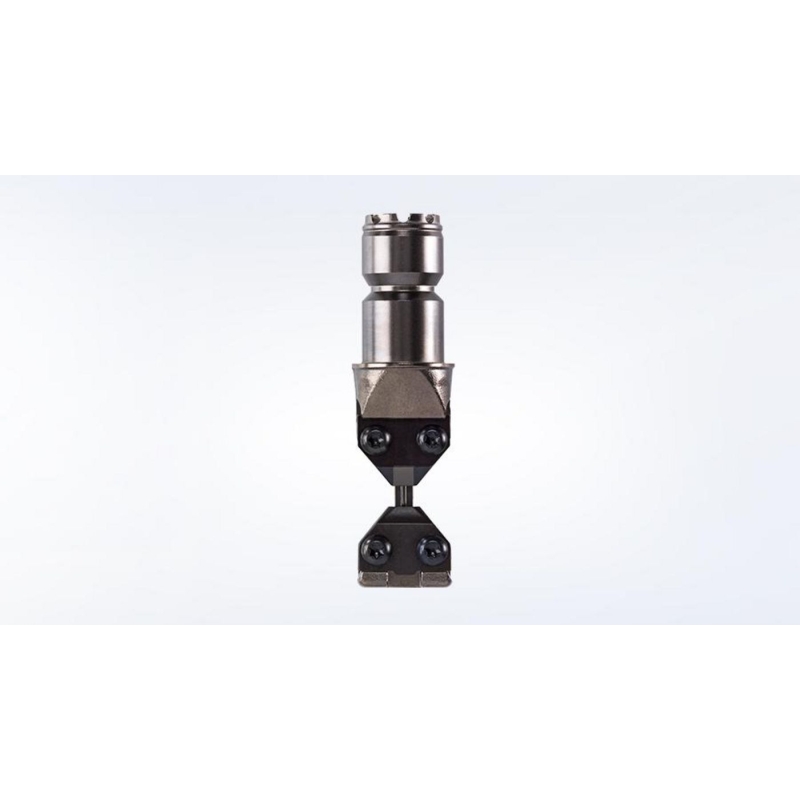

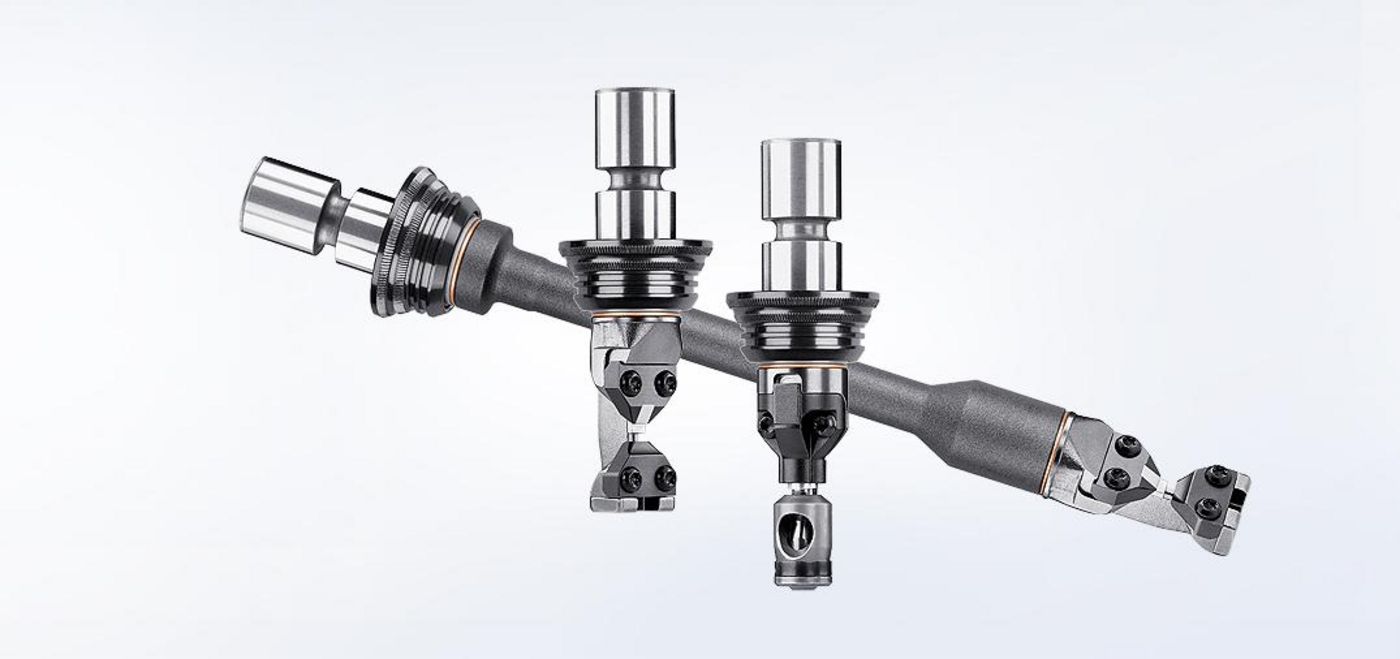

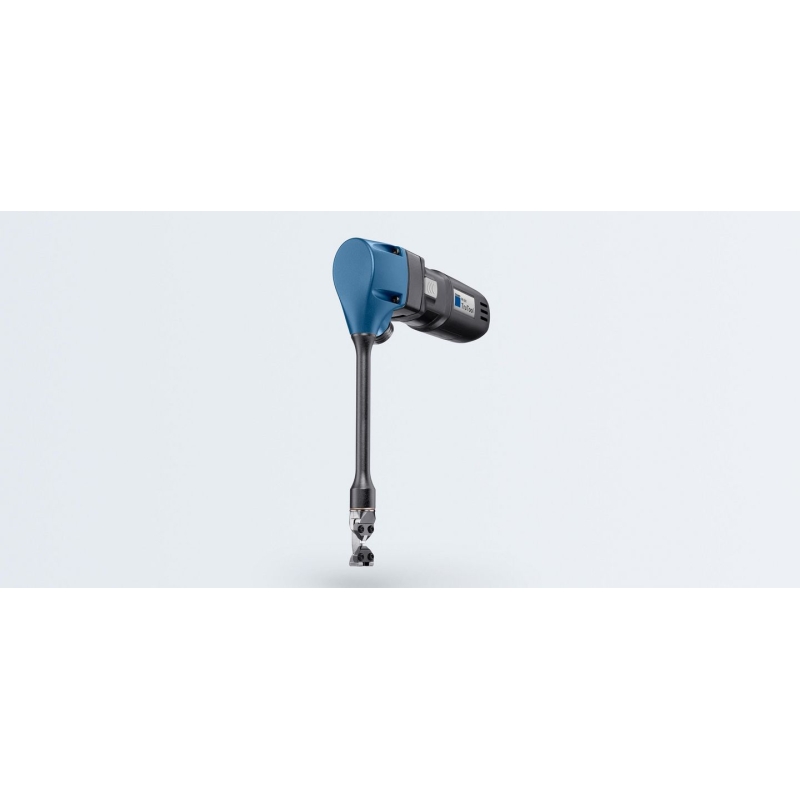

  • Tool PN 200

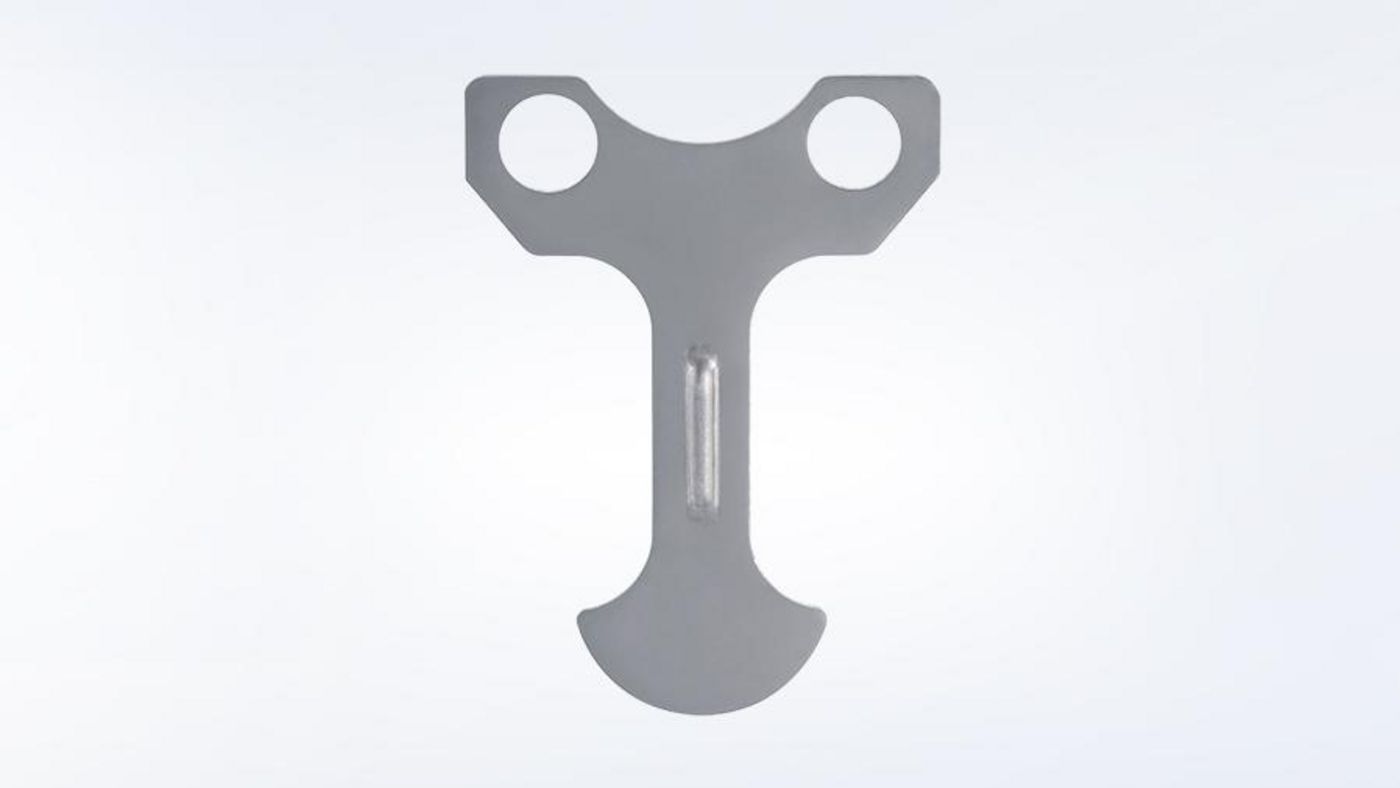

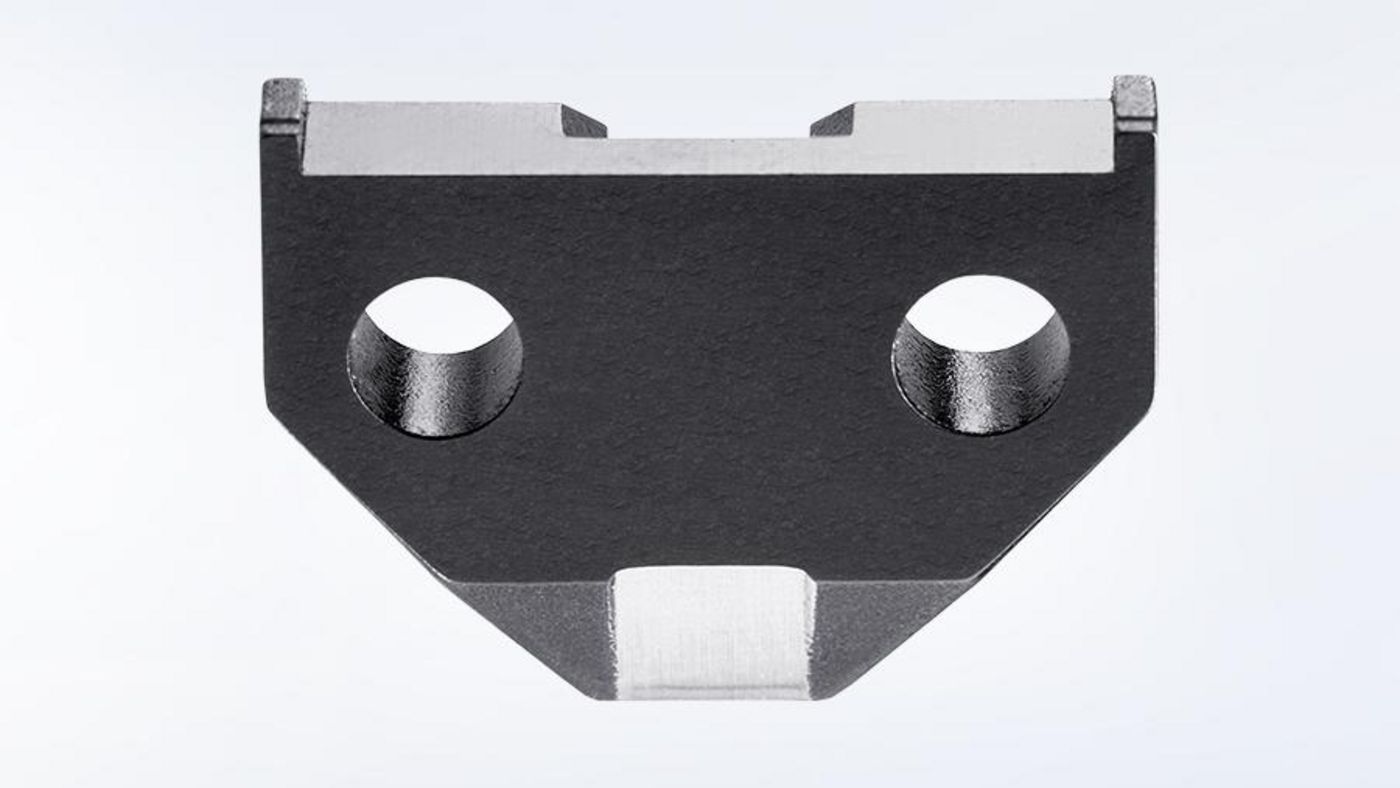

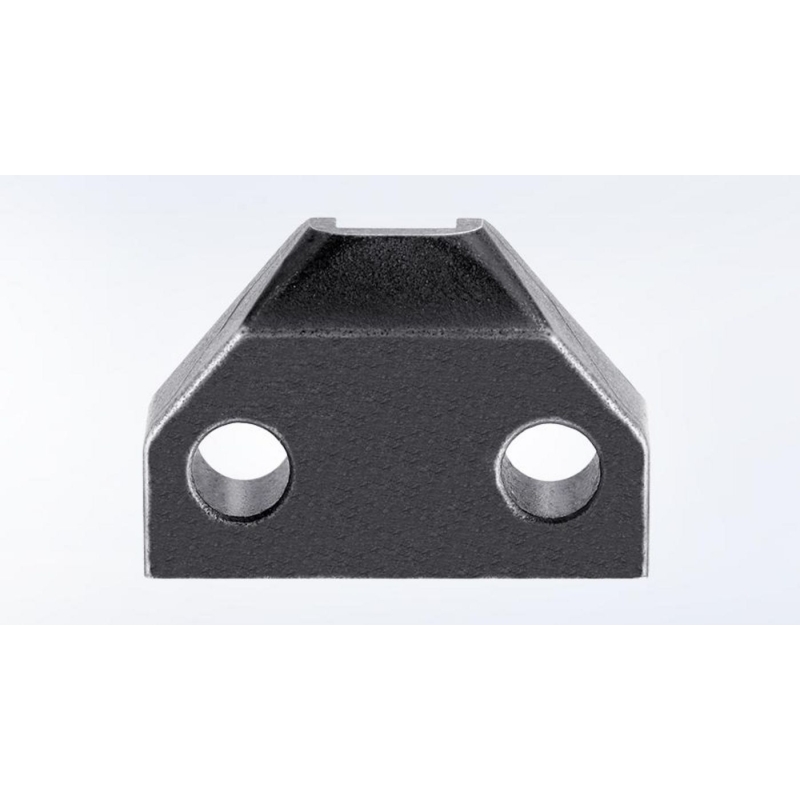

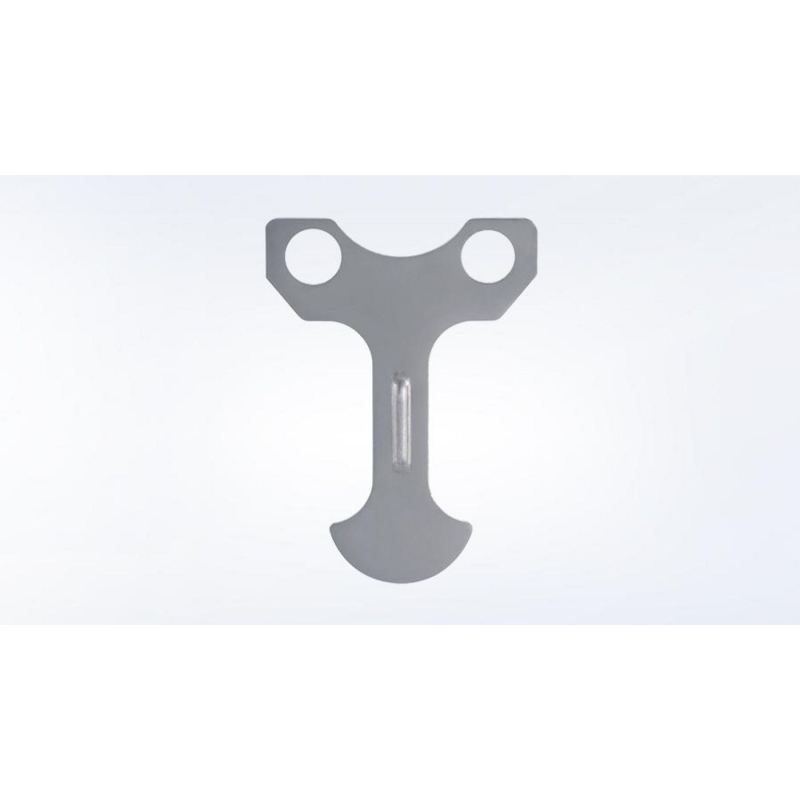

  • Wear plate
  • Hexagonal wrench T x 20

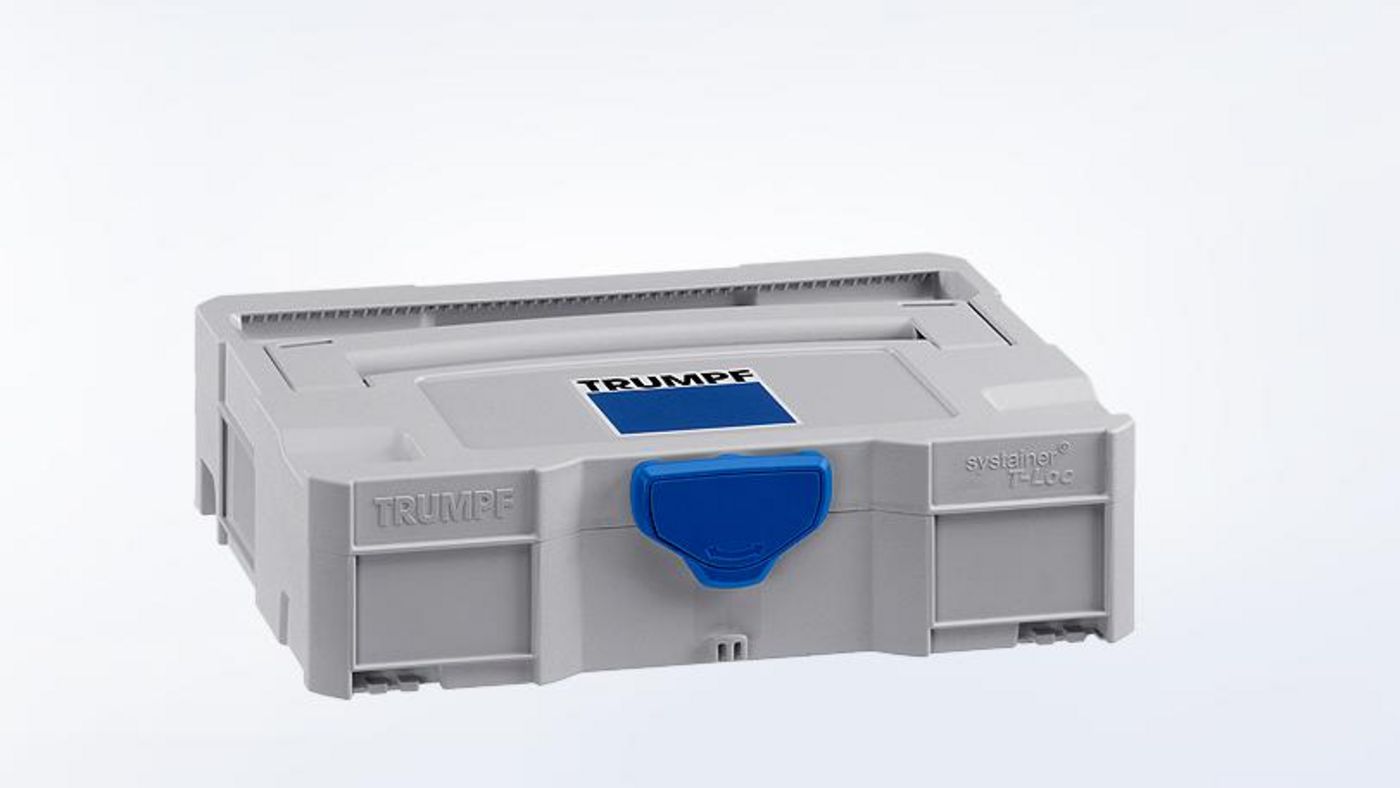

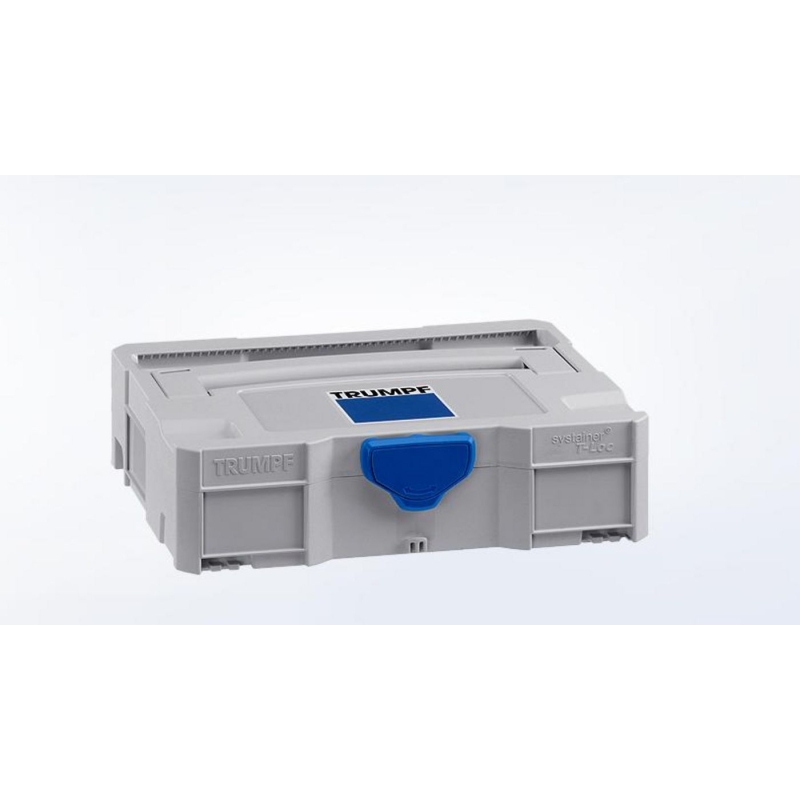

  • TRUMPF box S1
  • NZ Plug inclusive: AS/NZ 3760/2010 Test & Tag
  • 5  Year warranty (register online)

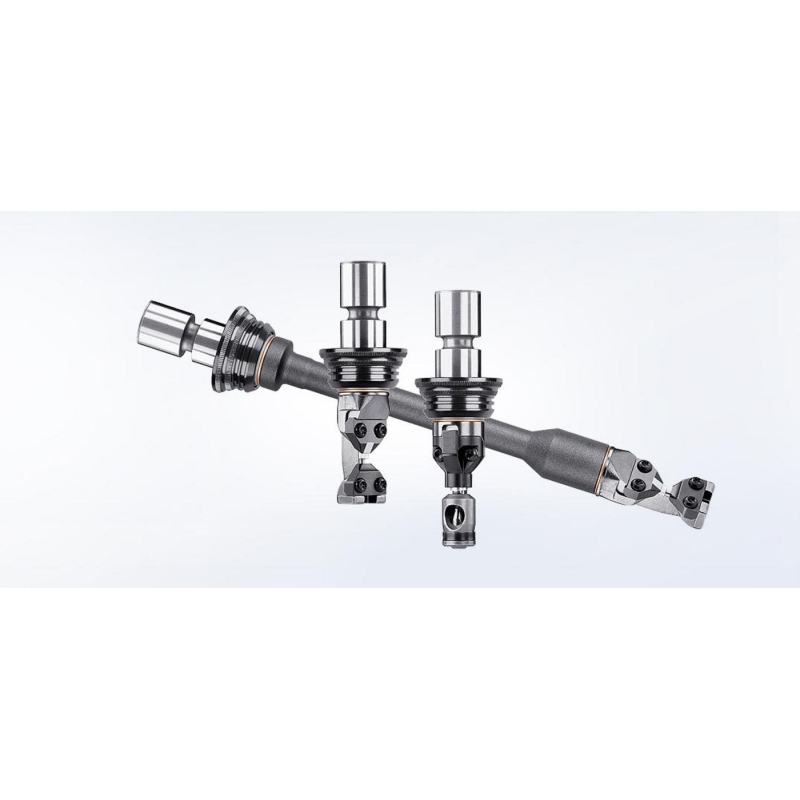

1 MACHINE - 3 TOOLS

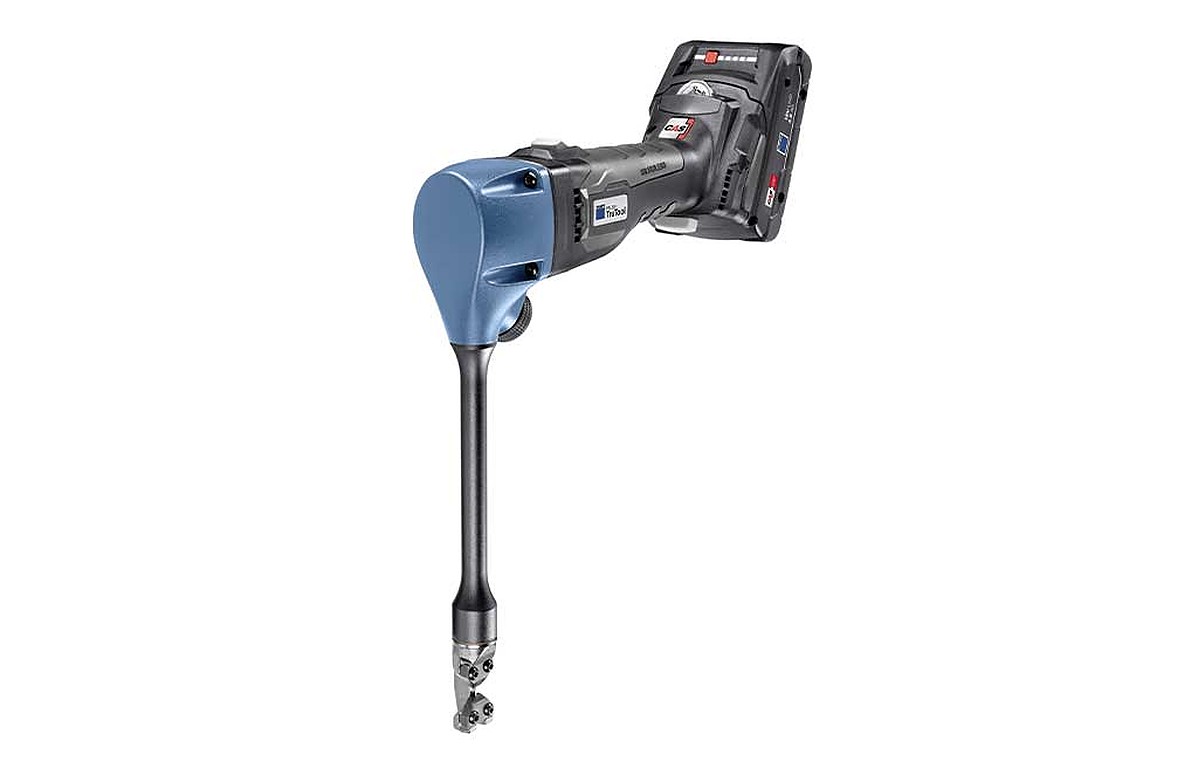

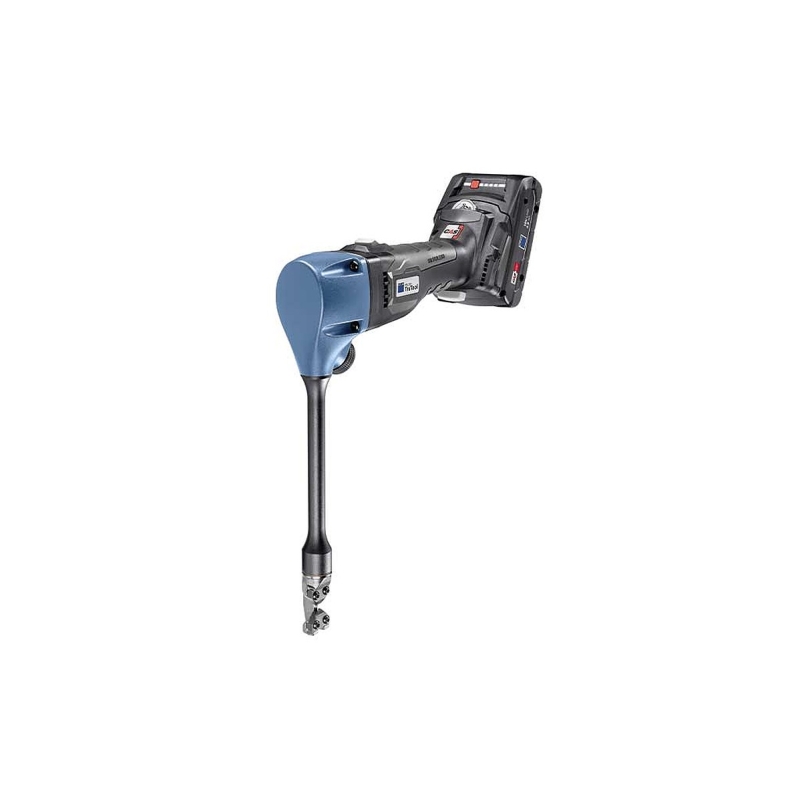

The TruTool PN 201, PN 200, and N 200 are built on the same multi-functional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 3.34 in. deep and C, L, and U profiles; and TruTool PN 201 for trapezoidal sheets up to 6.37 in. in depth.
