SCHECHTL MANUAL SEGMENT BENDING MACHINE TBS 100 / 125

NOW AVAILABLE

Mobile Bender To Take To Construction Sites

MODEL

Price

From $12,090.00 NZDex GST

TBS 100 or TBS 125 incl. X-frame

MOBILE LIGHTWEIGHT FINGER-BENDER FOR CONSTRUCTION SITES

  1. The smallest of the manual segment bending machines of the Schechtl product range “our most flexible one for building sites “.
  2. Thanks to their small dimensions it is easy to move a TBS around on construction sites “between floors, on the scaffolding and in narrow spaces “

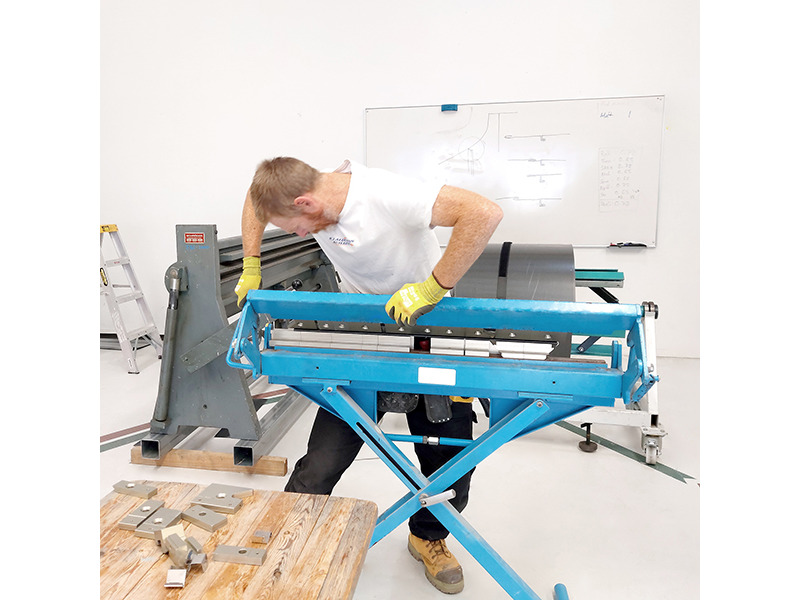

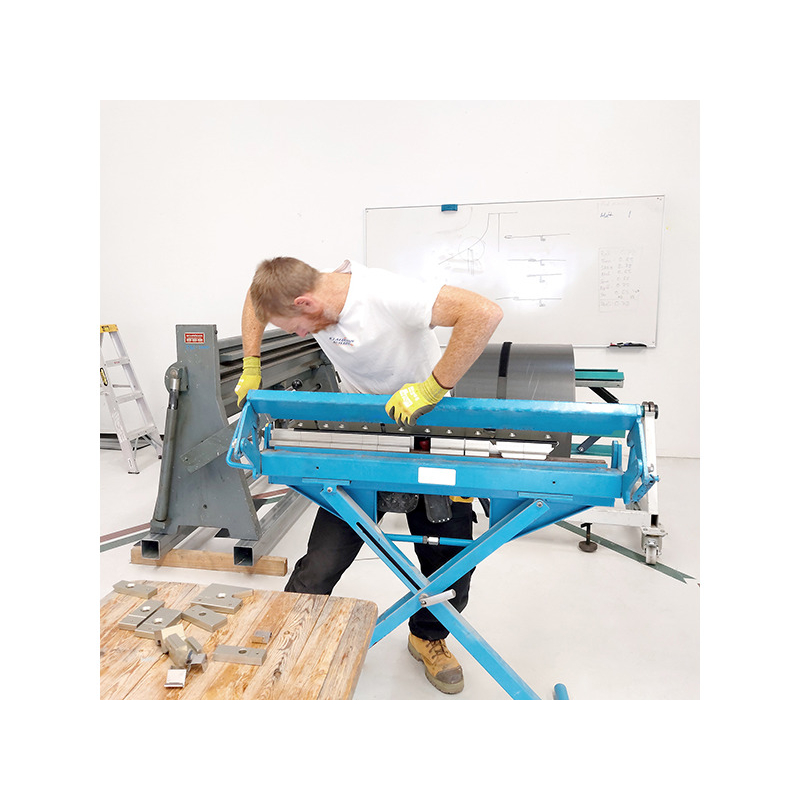

EASY TO USE ON BUILDING SITES OR IN THE WORKSHOP

  • Efficient and productive - all segments can be changed tool-free
  • Easy to transport and set up by one person
  • Fold your TBS and pull it like a luggage trolley on wheelies behind you

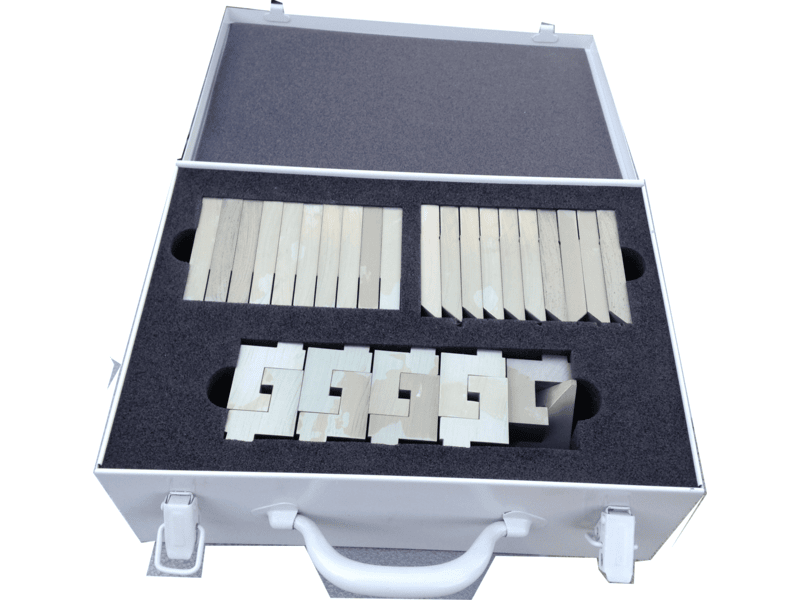

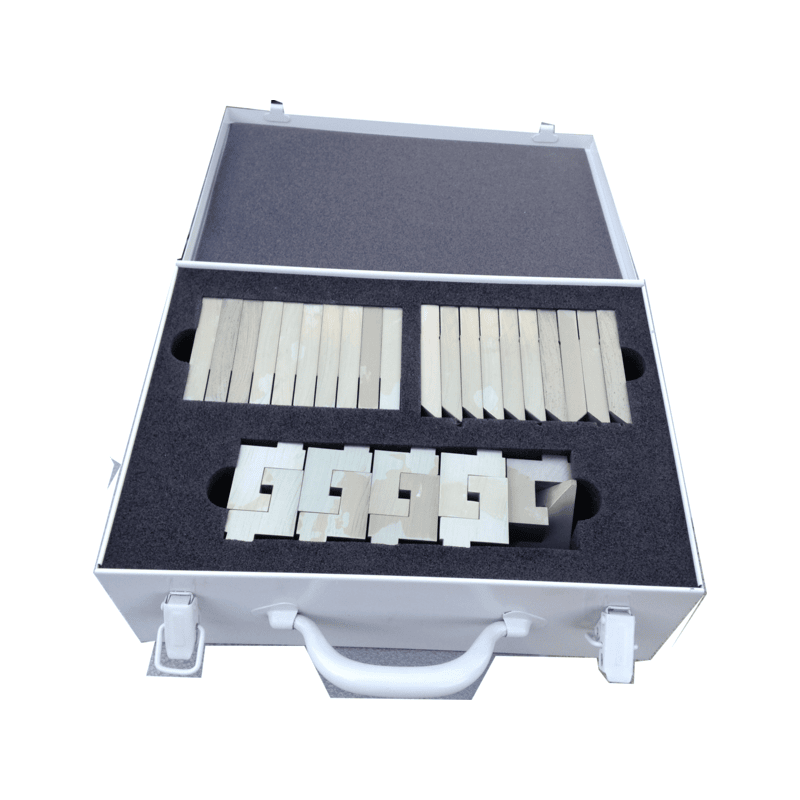

  • Reduce transport box weight by storing segments in a separate storage box - safely stored and optimal protected
  • Suitable for mounting onto a work bench or on construction vehicle (without X-Frame)

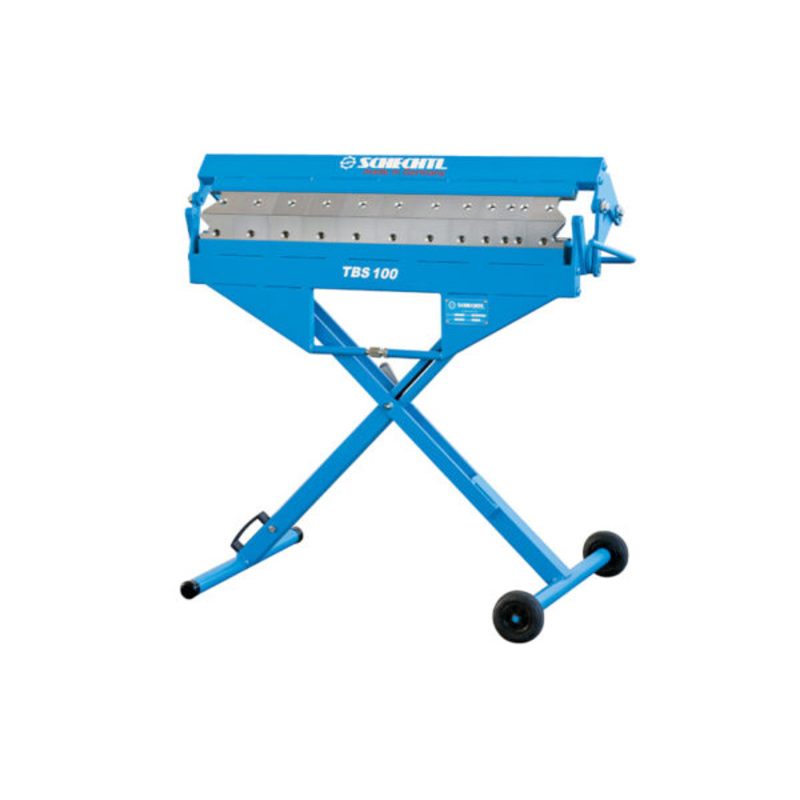

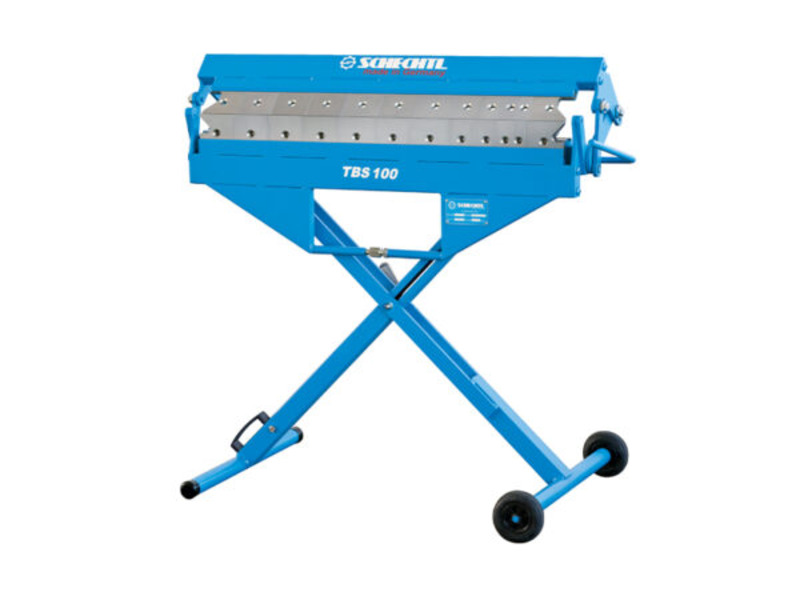

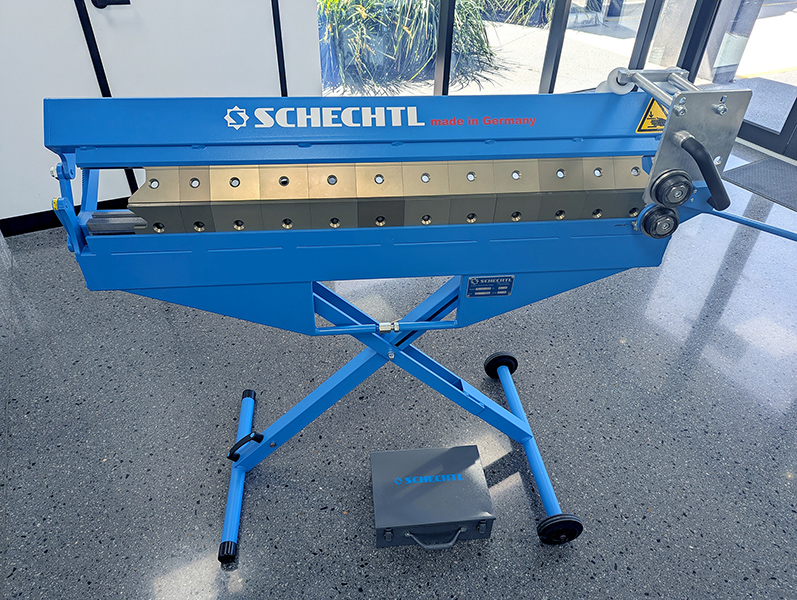

  • Unique X-frame - stable and comfortable while moving around (optional accessories)
  • Capacity: Steel (400N/mm²) 0.63 or  Aluminium (250N/mm²) 1.00 or  Stainless Steel (600N/mm²) 0.50 or  Copper (300N/mm²)  0.80 or  Zinc (150N/mm²)  1.00
  • In two different lengths available

STANDARD EQUIPMENT

  • Segments with a quick clamping system for upper, lower and bending beams on the whole working length.
  • Passage height of upper beam segments 40 mm.
  • Passage height of lower and bending beam segments 40 mm.
  • Upper beam opening height 45 mm
  • Upper beam pressure setting
  • Bending beam lowering device
  • X-frame 17kg

MODELS:

TBS 100

  • Working length: 1000mm
  • Segment Divisions: 1x Corner left 100mm, 1x Corner right 100mm, 1x 30/40/60/70 mm, 2x 50 mm, 5x 100mm

TBS 125

  • Working length: 1250mm
  • Segment Divisions: 1x Corner left 100mm, 1x Corner right 100mm, 1x 30/40/60/70 mm, 1x 50 mm, 8x 100mm

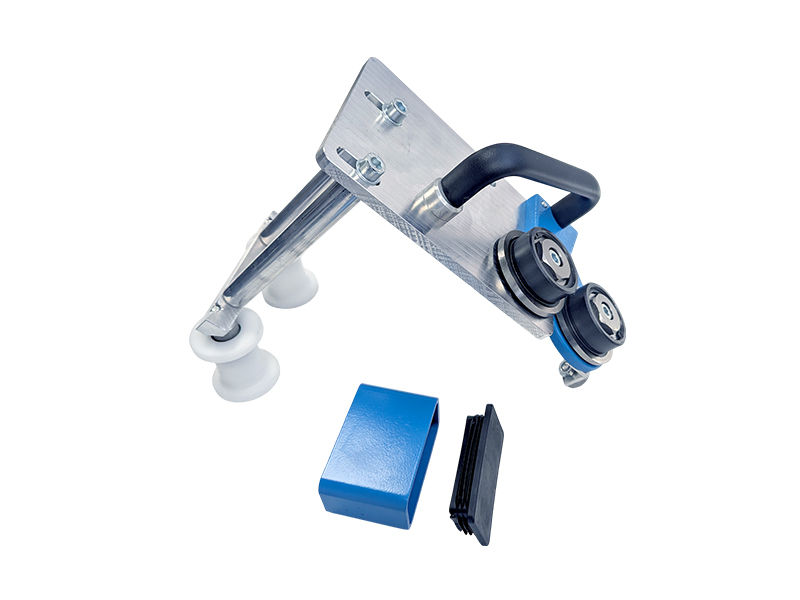

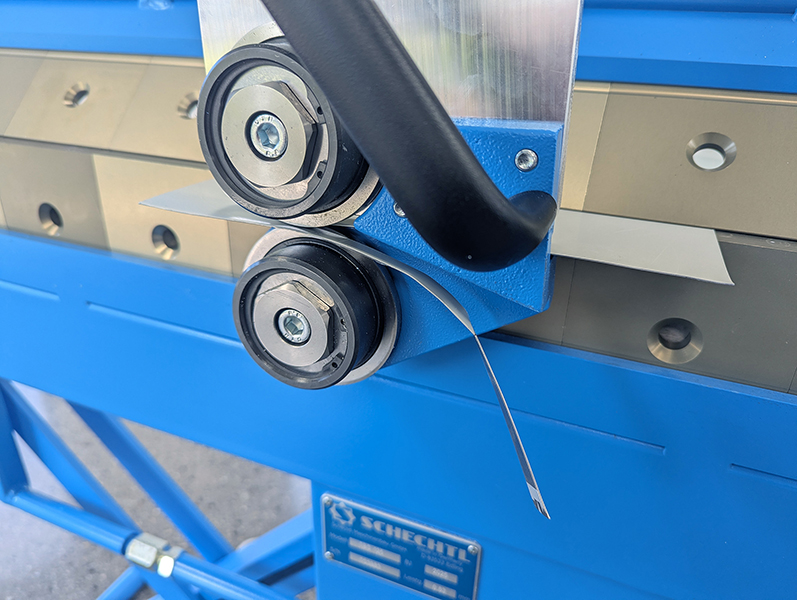

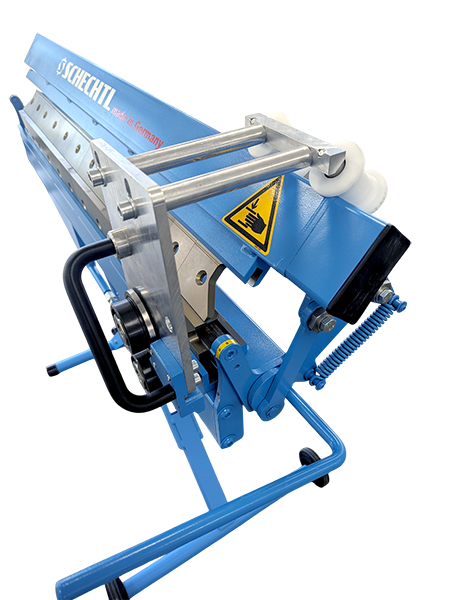

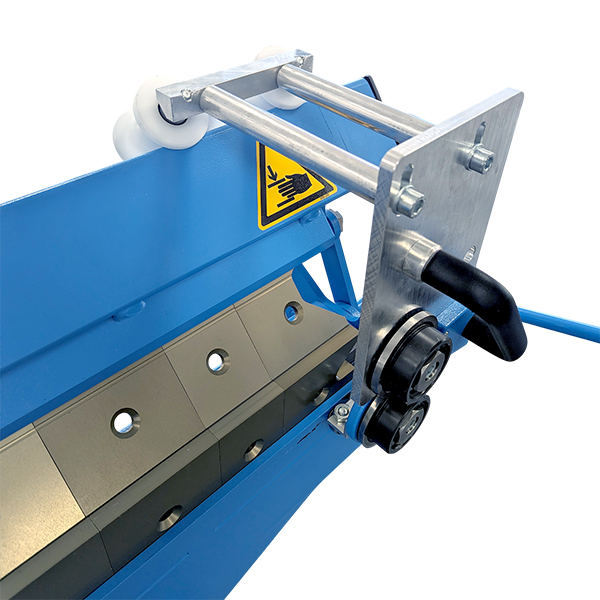

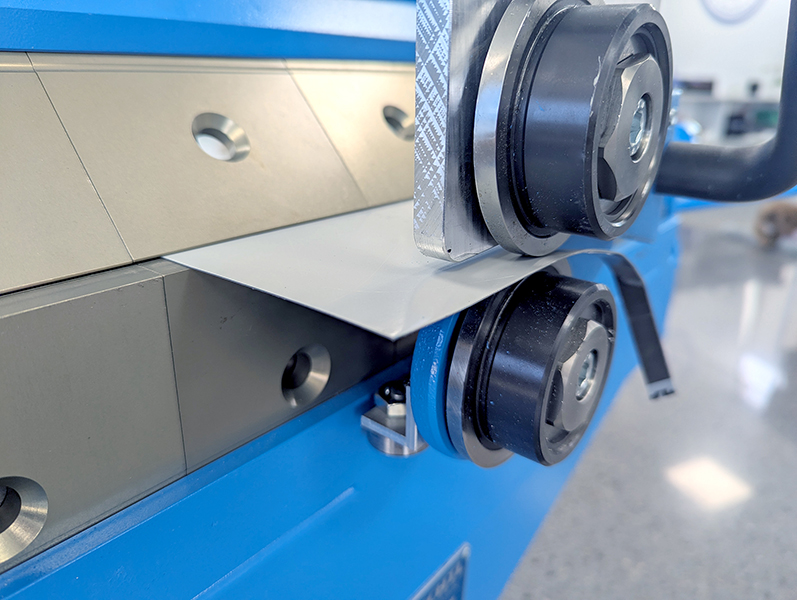

ACCESSORIES

***Freight charges within NZ not included, will be invoiced accordingly***

Testimonial - TBS 100

A recent purchase was a portable site folder TBS 100. This has been a game-changer for the team. Initially brought for a large standing seam job to fold ends of sheets, we now find the team using it on-site weekly. On a recent project - the roof had 15 square roof ducts to come through the roof. Most of the flashings were under 1200mm. We craned up the flat sheets, installed the roof, then went straight on to installing the flashings for the roof penetrations. Eliminating the lead time on custom-made flashings manufactured in a warehouse, and installing the flashings straight after the roof meant no more water got into the build and sped the whole process up.

Jonathan
Makuch Roofing

Testimonial - TBS 100/125

We made the investment over the years into the machines and would never look back, Prior to the TBS we would use hand rollers and tools, this still works with care but if you want to speed up your prep work and have crisp lines then I recommend any of the TBS site folders. These are just handy having on site to fold up chimney crickets or that more detailed flashing system. Having the correct tools and machines gives you confidence going into any tray project knowing your company can deliver the finish in which is expected installing bespoke high-profile projects.

Eifion
Prestige Roofing
