HA-5350

Hover for zoomClick to enlarge

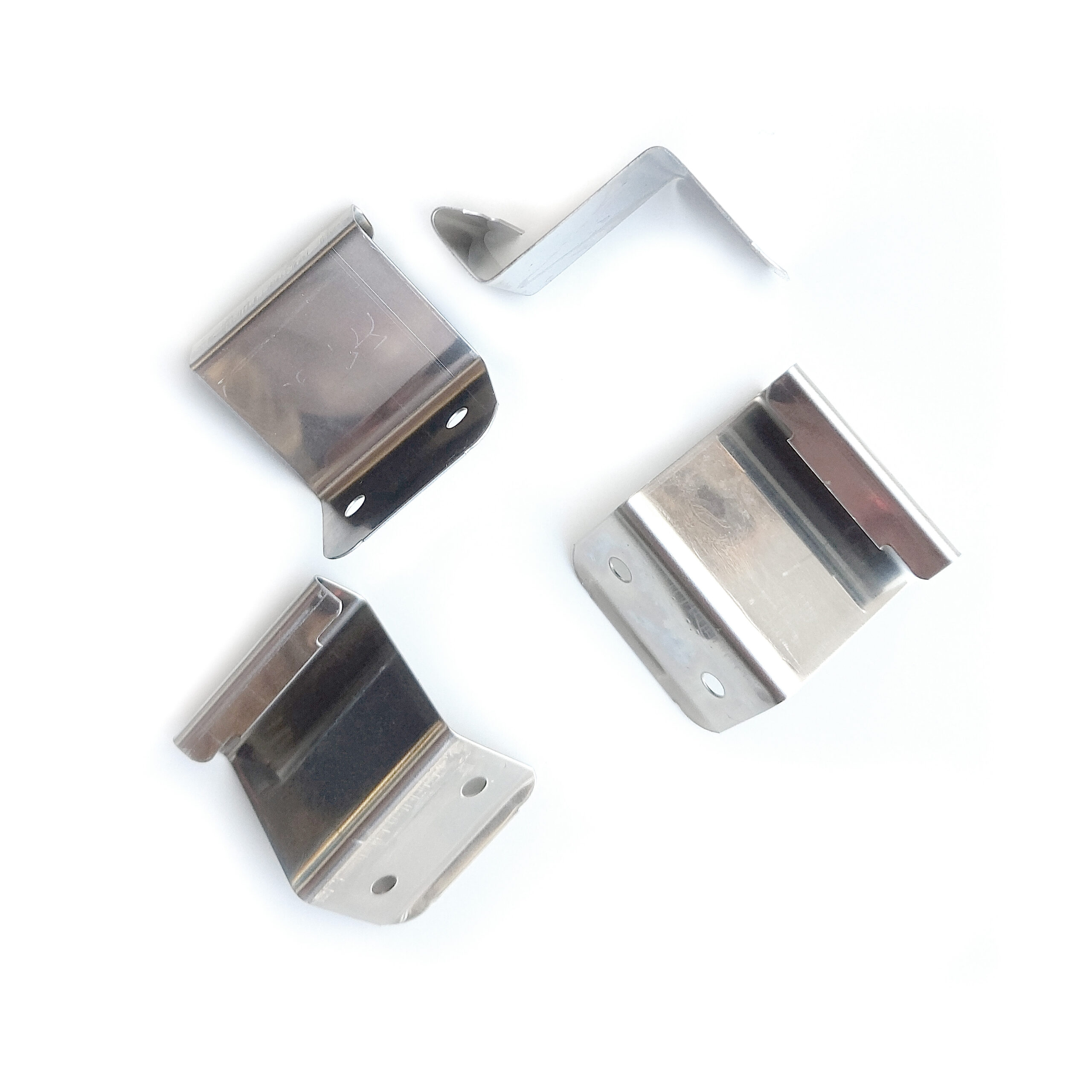

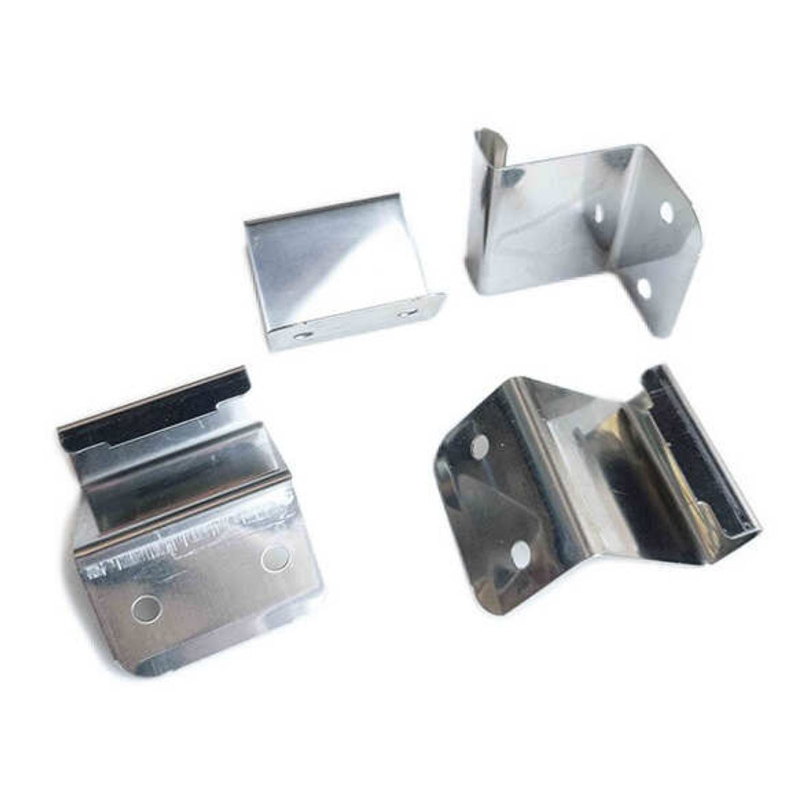

HA-5350HA-5350HA-5350STANDING SEAM FIXED CLIPS

REES STANDING SEAM FIXED CLIPS

Euro Tray Clips - 500/Box - Assorted sizes

SIZES

Price

From $166.00 NZD ex GST

Description

Designation with rounded edges and a fine splay at the foot end.

Fixing clip suitable for angle and double standing seam. Attaching on the pre-profiled standing seam. With rounded corners and a fine splay at the foot end. Our clips are manufactured according to the technical rules for the German plumbing trade regarding material, strength and design. The special shaping of the upper part of our fixing clips results in a slight clamping effect in the pre-profiled seam, which contributes to the fact that the suspended attachments do not slide downwards.

  • Fixed clips No. 5
  • Material: Stainless steel A2 or Zinc coated (galvanised)
  • 30mm wide
  • 500 clips/ box
  • Min. order quantity: 1 box
  • Fixing with nails

Size Stainless Steel clips:

  • HA-5350:      25 mm
  • HA-5350-28: 28 mm
  • HA-5350-30: 30 mm
  • HA-5350-32:  32 mm

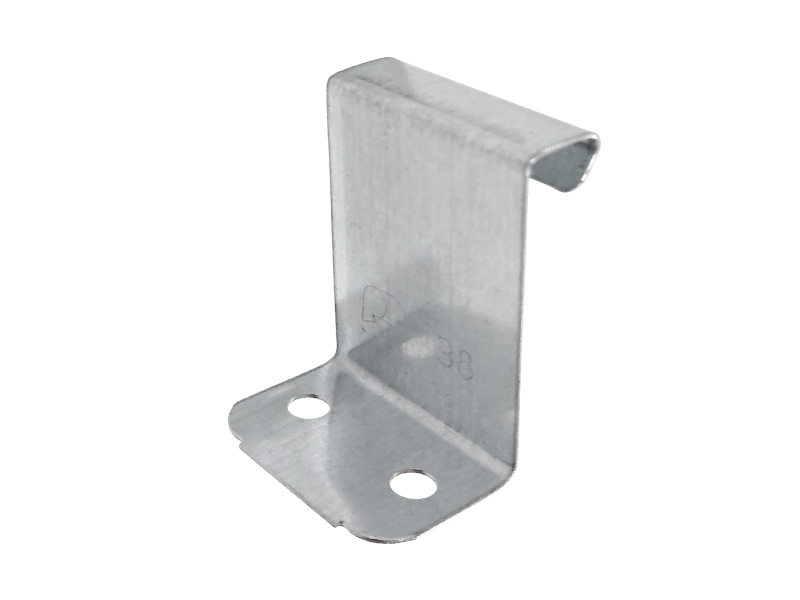

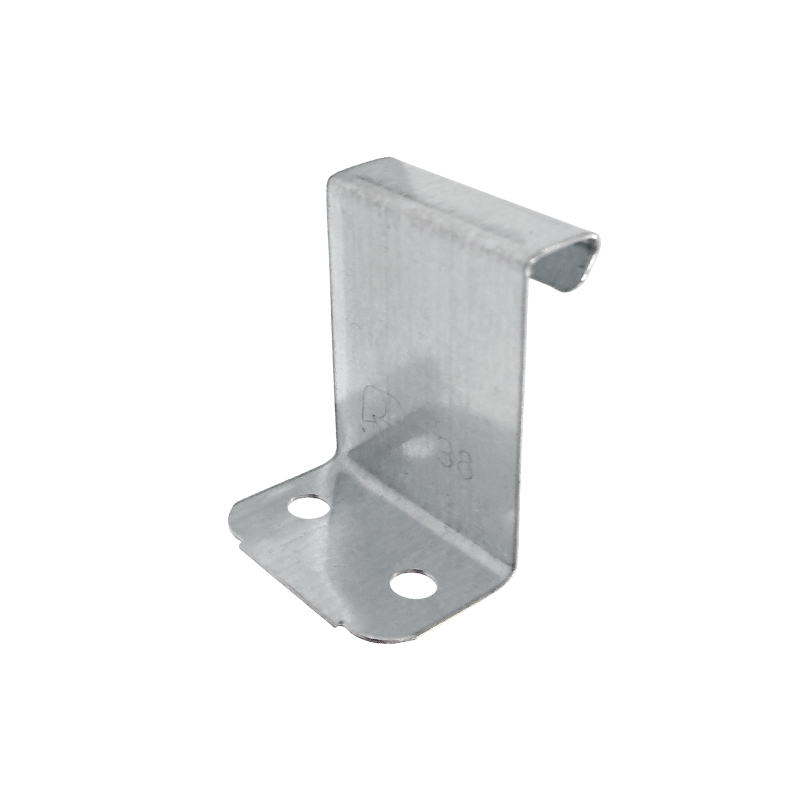

  • HA-5350-H38: 38 mm

Size Zinc clips:

  • HA-5150-H38: 38 mm

Technical Data Sheet:

 Brochure sliding and fixing clip
 Product specification fixing clip
 Assembly instructions clips
 Brochure clips

Made in Germany

ALL REES PRODUCTS MUST BE USED ACCORDING TO THE GUIDELINES OF NZ METAL ROOF AND WALL CLADDING CODE OF PRACTICE.
