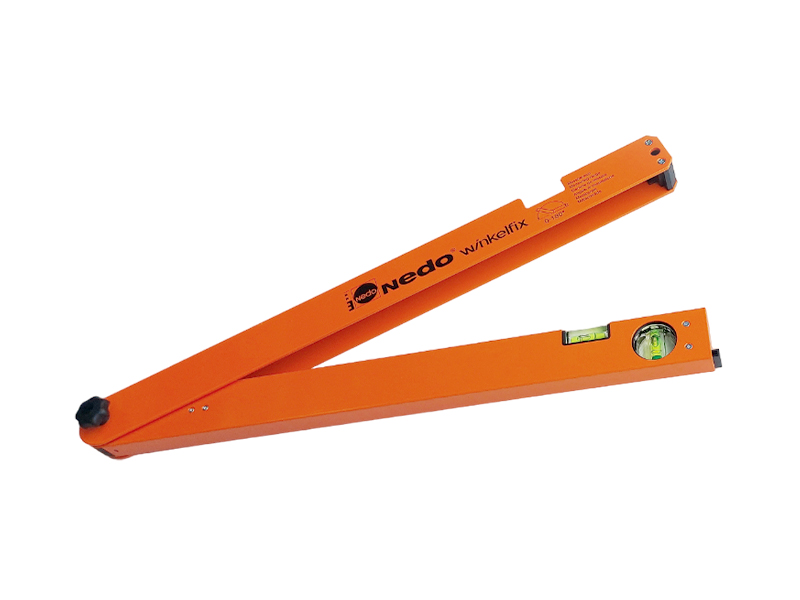

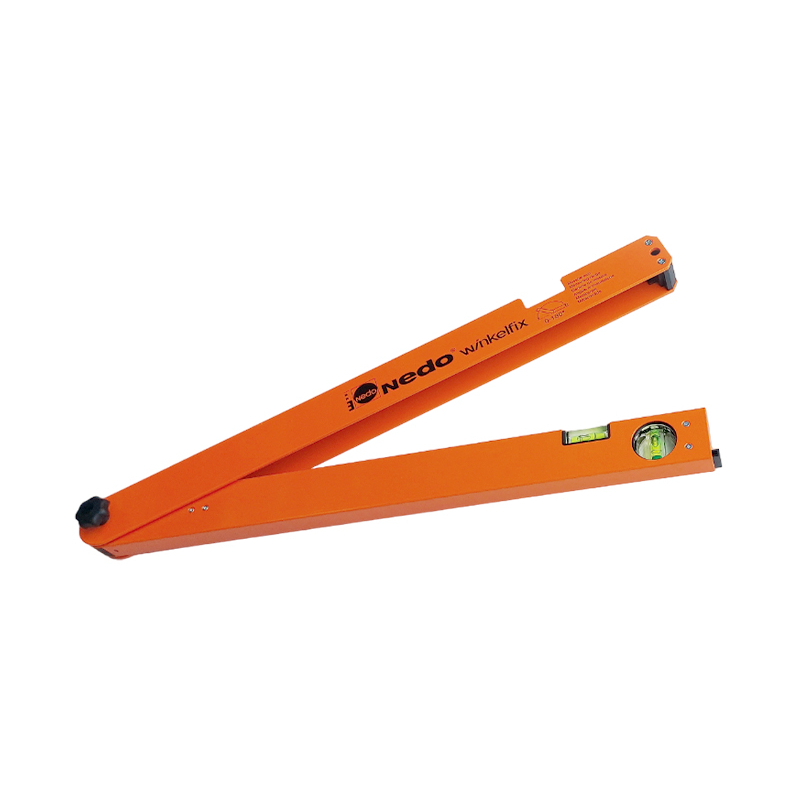

WINKELFIX

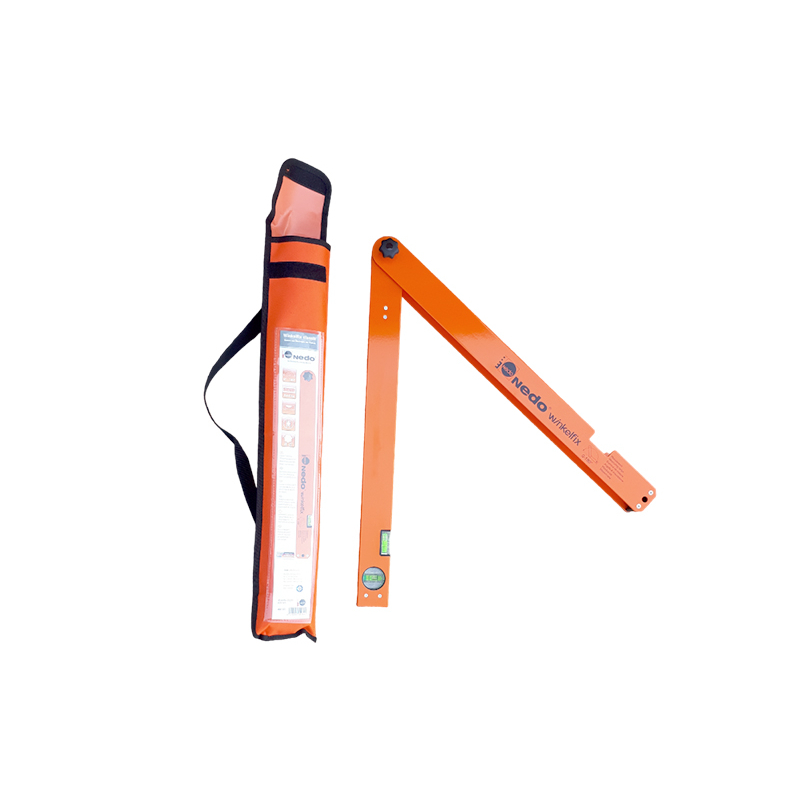

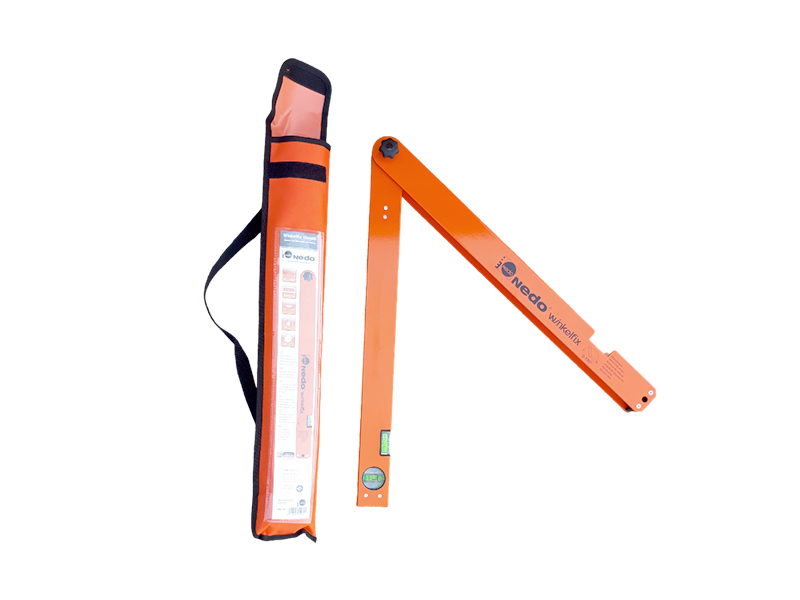

NEDO WINKELFIX INCL. CARRY CASE

Precise And Easy Measuring Of Angles

Model

Price

From $417.00 NZD ex GST

Description

  • With the Winkelfix, measurements of angles are performed quickly, precisely and with the utmost ease.

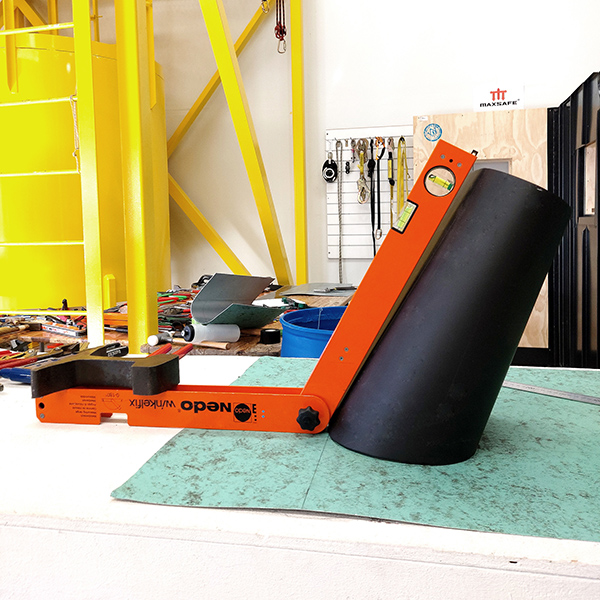

  • Simply place the Winkelfix in position and the angle can rapidly read off from the analogue display.
  • Two integral spirit levels ensure true horizontal and vertical positioning.
  • Thanks to its reliability, sturdiness and convenience, the Nedo Winkelfix has proven its value to the building trade over and over again.
  • Degrees can be immediately read off the analogue display.

Technical data 450111

  • Model: Mini
  • Shank length: 430 mm
  • Display graduation: 0.5°
  • Measuring accuracy: 0.25°
  • Graduation: degrees
  • Measuring range: 0° to 180°
  • Compass points: No
  • Carry case: Yes
  • Weight: 0.9kg

Technical data 450121

  • Model: Classic
  • Shank length: 600mm
  • Display graduation: 0.5°
  • Measuring accuracy: 0.25°
  • Graduation: degrees
  • Measuring range: 0° to 180°
  • Compass points: No
  • Carry case: Yes
  • Weight: 1.2kg
