MAXSAFE ANCHOR FOR STANDING SEAM ROOF PROFIL 25kN
Designed To Be Fixed On Tray Roofing

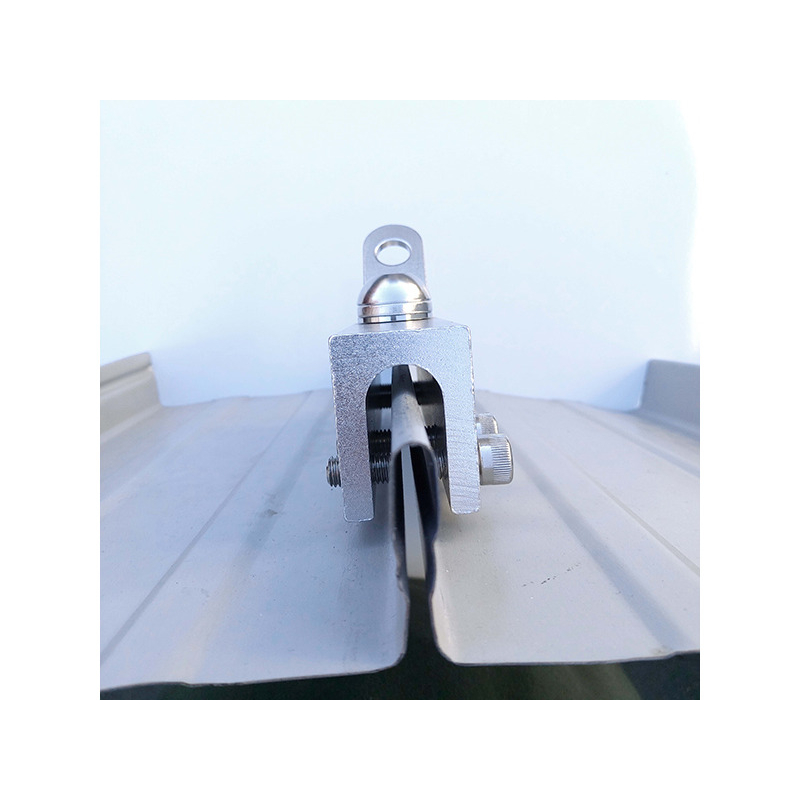

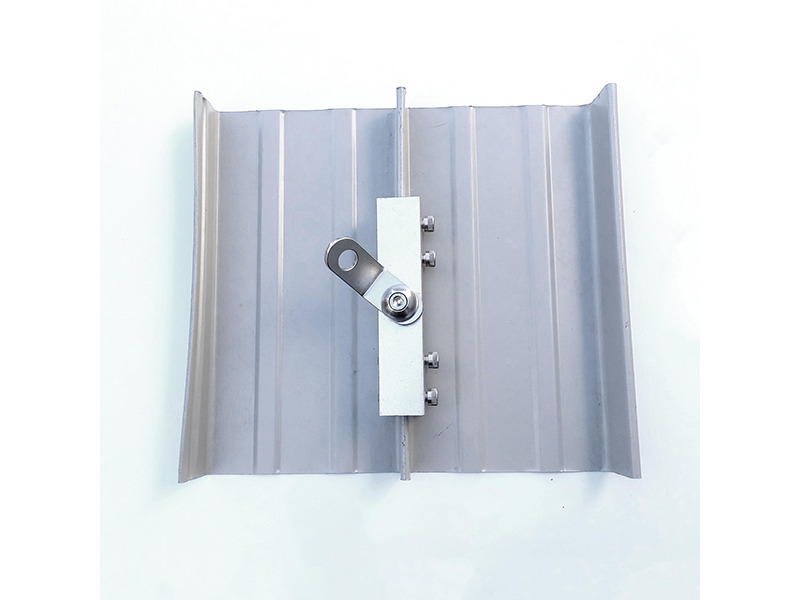

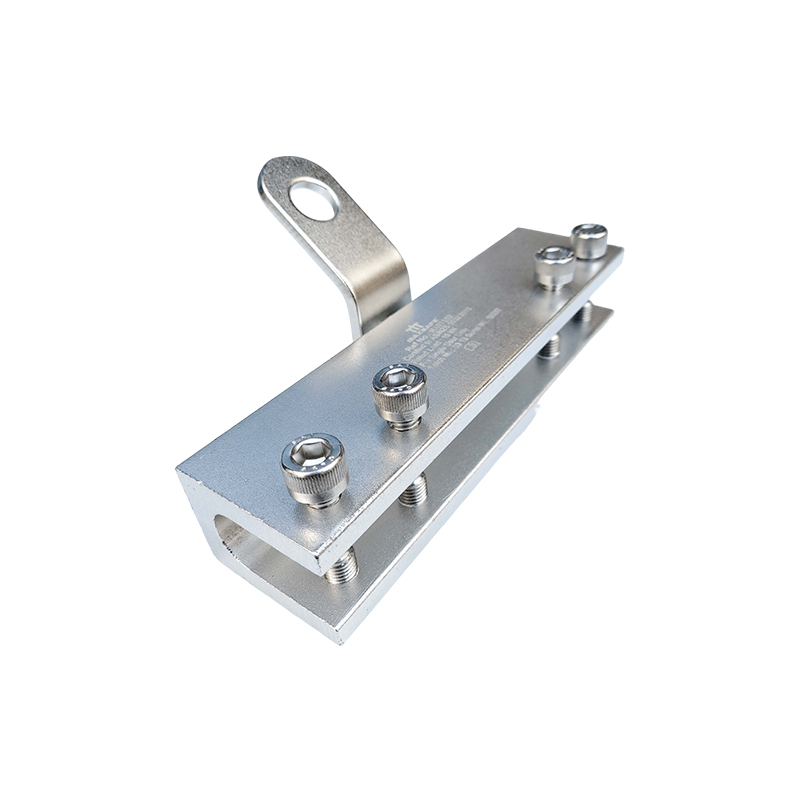

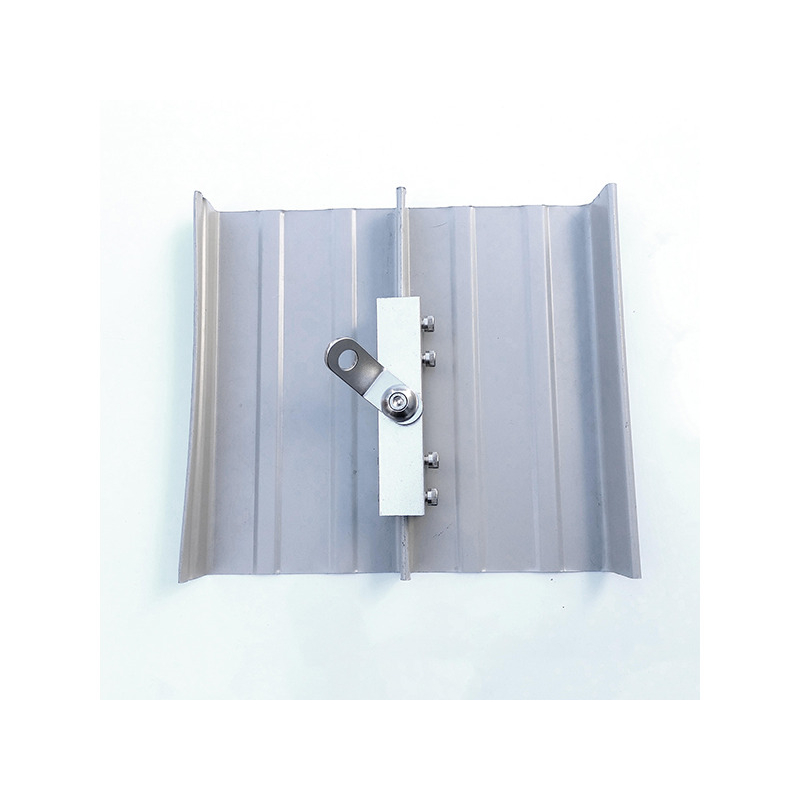

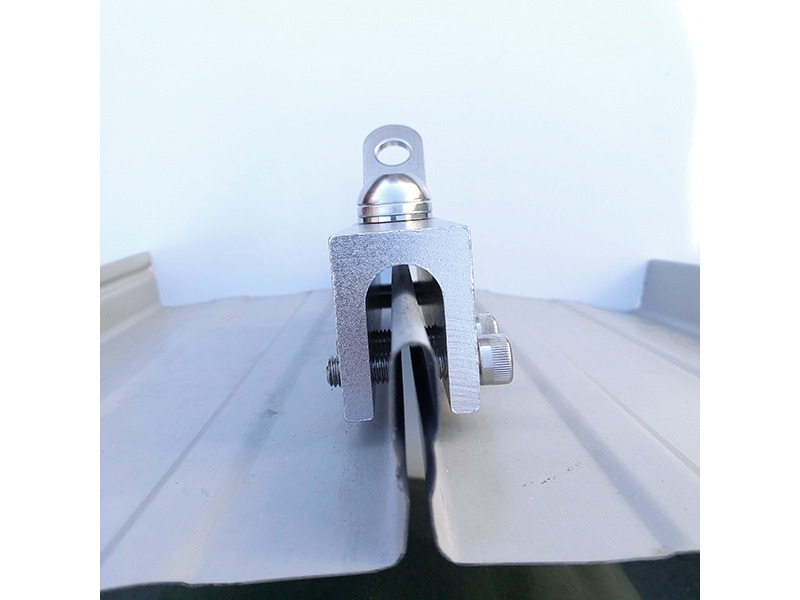

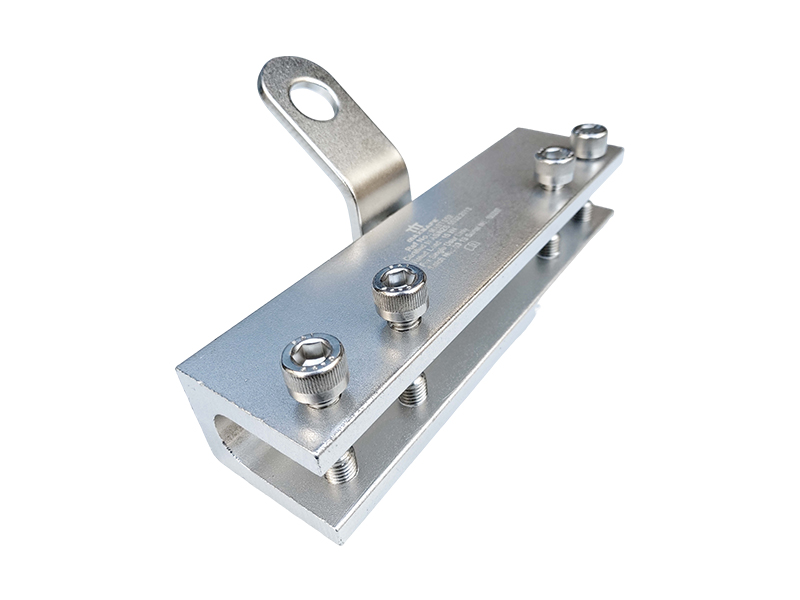

MAXSAFE® Roof Top Anchor device is designed to be fixed on metal standing seam roof. Trolley lateral hinge (Swivel anchorage eye) on the top provides universal connection and is used as an anchorage point.
The anchor is fixed on the roof top by use of Grub Screw.
- Material : Aluminium Alloy & Stainless Steel
- Finish : Natural Silver, Adodized
- Minimum Breaking Strength : 25kN
- Weight : 834 gms ± 10 gms
- Conforms: EN 795:2012 Type A & ANSI Z 359.1-2007
Click here to download User Instruction Manual
