JOUANEL MANDREL – DECOILER ON WHEELS DVS

Description

JOUANEL MANDREL – DECOILER ON WHEELS DVS

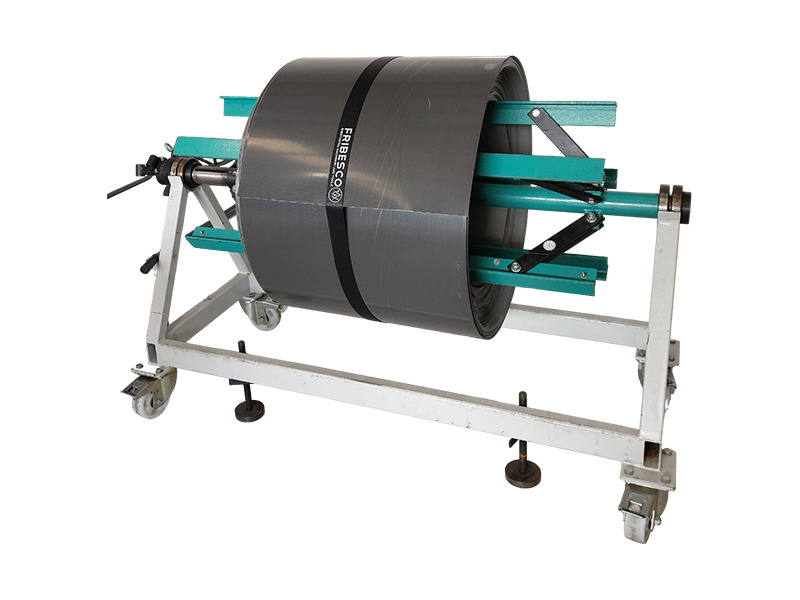

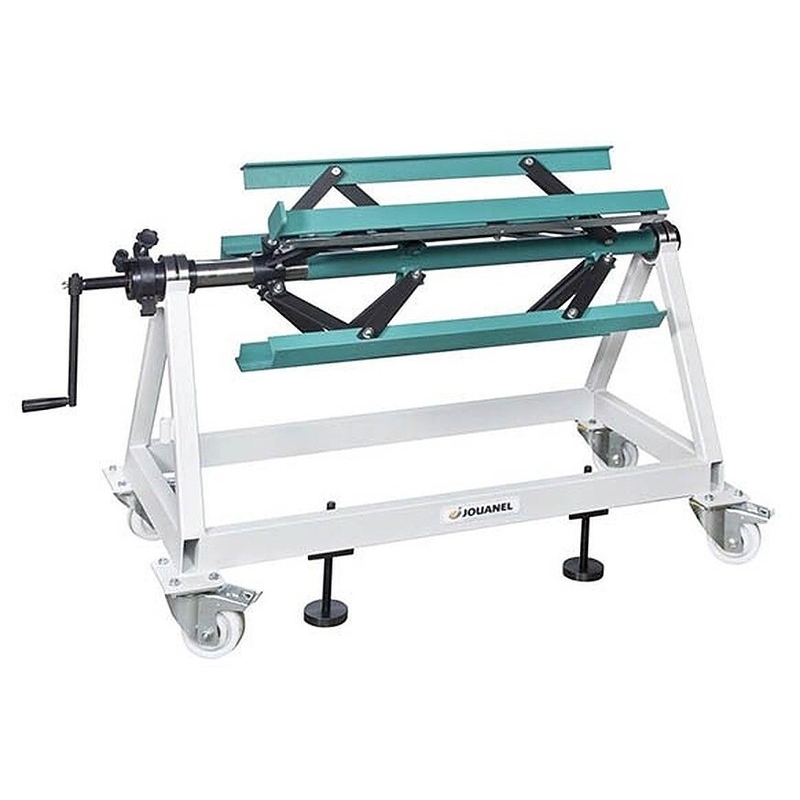

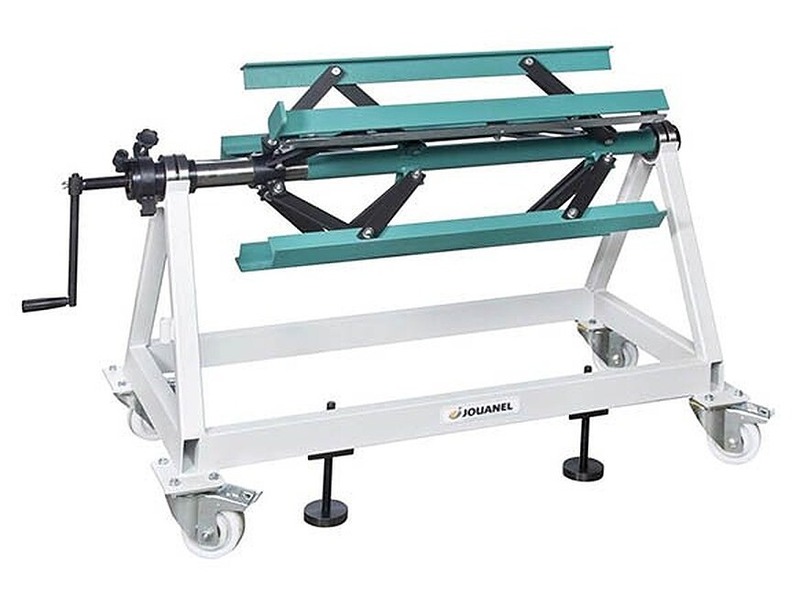

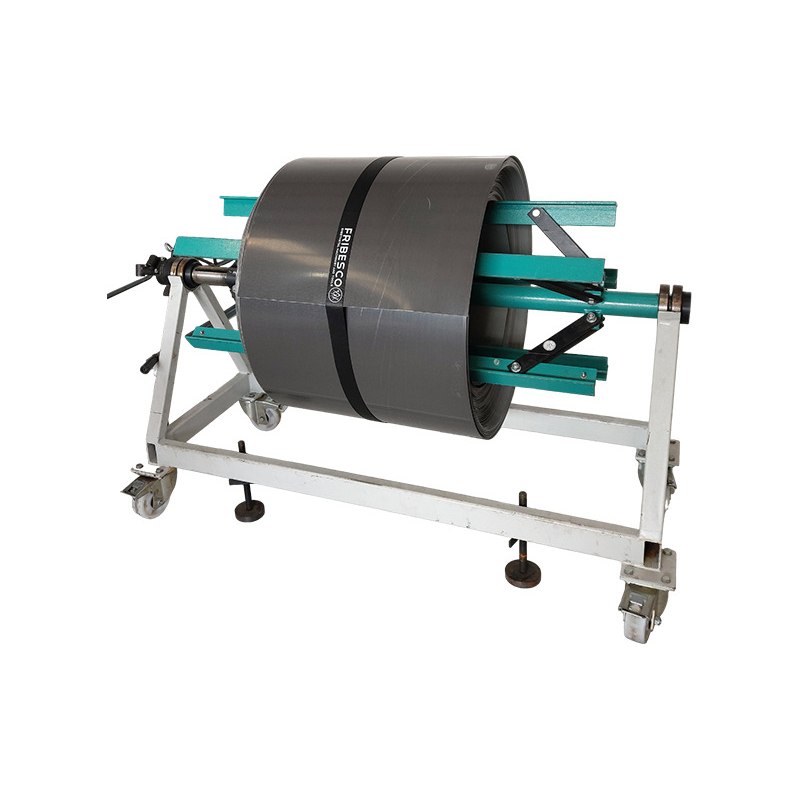

The Jouanel Mandrel Decoiler on Wheels DVS is a heavy-duty manual tool designed for unwinding coils with ease and precision. Its robust build and convenient wheel system make it ideal for use in roofing and other construction projects. With a manual expansion feature, it accommodates a variety of coil sizes, and the swivel wheels with brakes offer easy mobility and stability during operation.

Uses:

• Ideal for unwinding metal coils in roofing and construction applications
• Suitable for use in workshops and job sites requiring mobility and precise coil handling
• Manual operation for expanding and adjusting the mandrel size (from Ø 285 to 540 mm)

Product Details:

• Equipped with 4 swivelling wheels, each with a brake for easy mobility and stability
• Wheel axis mounted on ball bearings

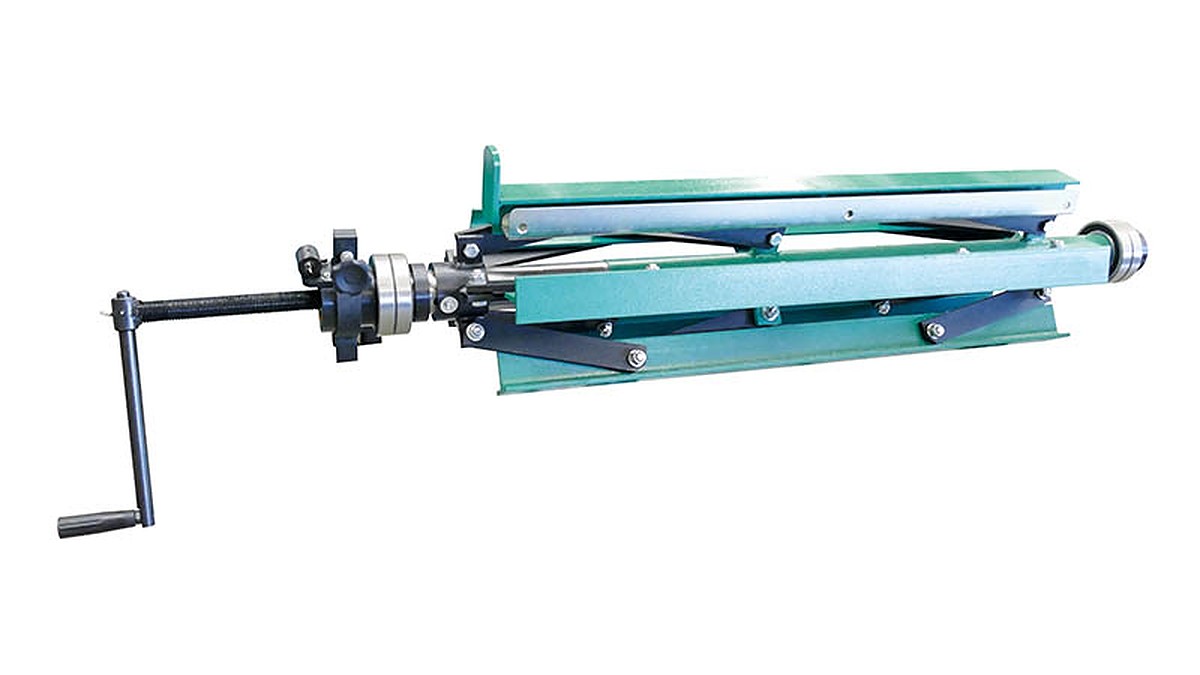

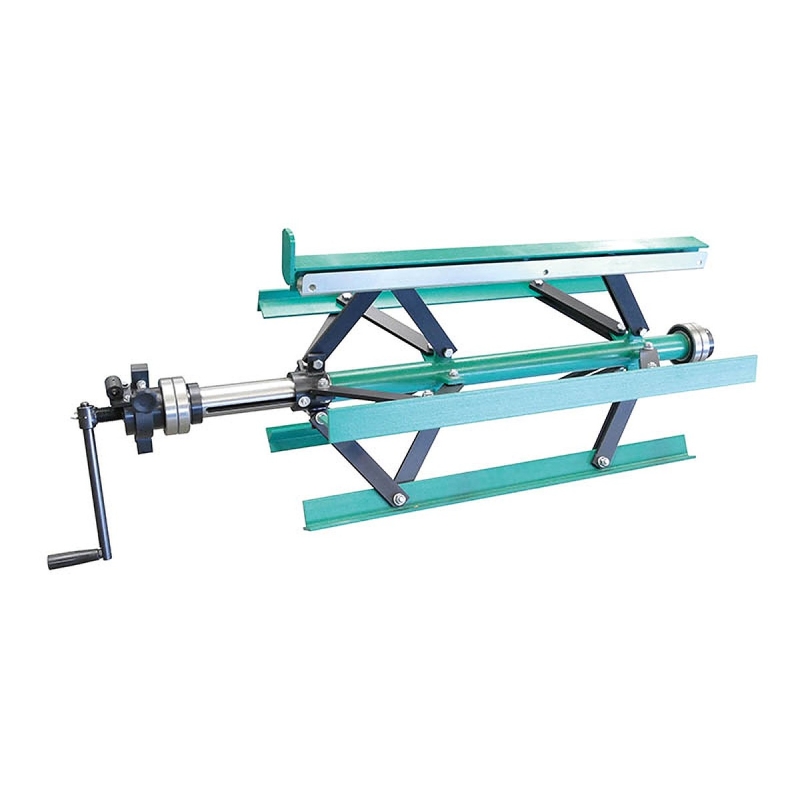

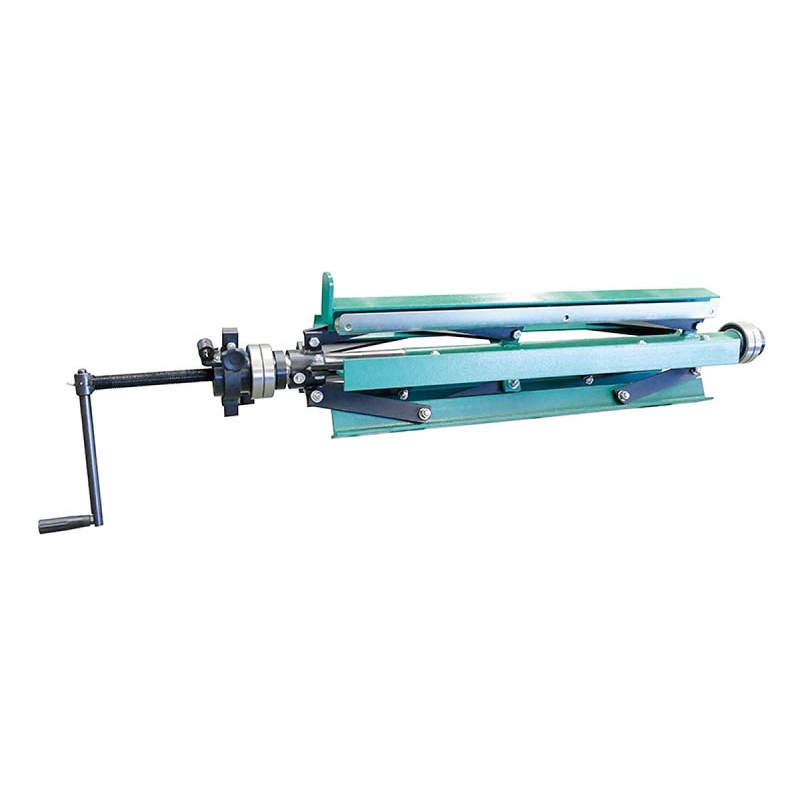

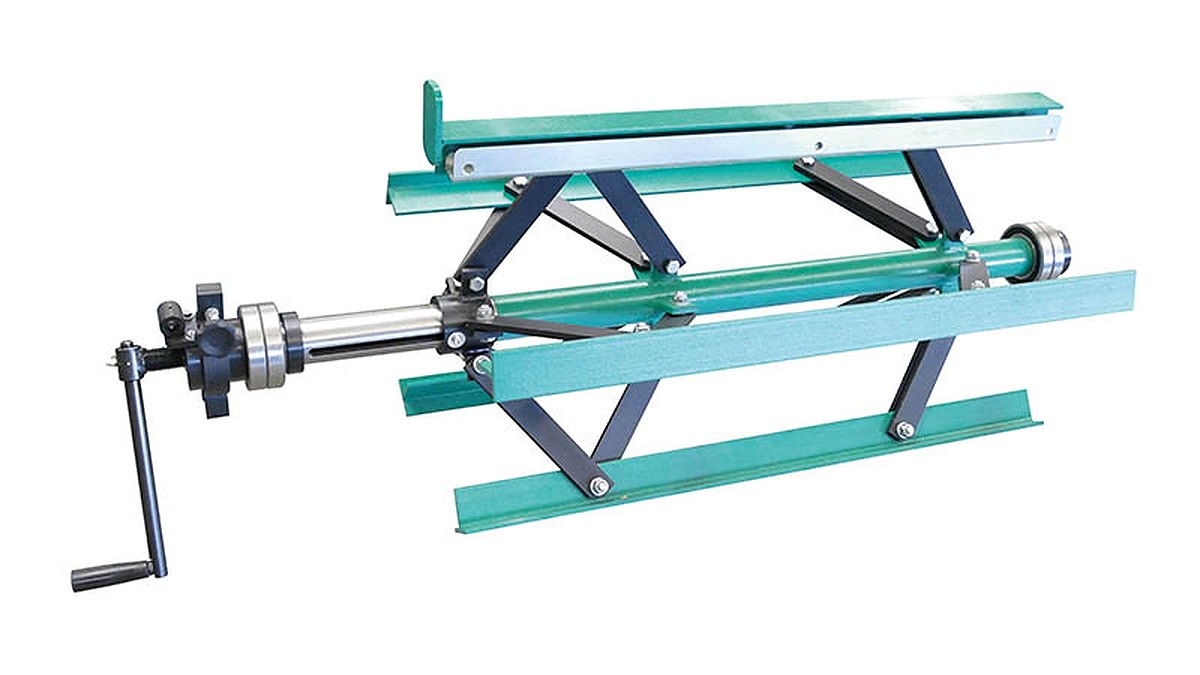

• Manual expansion from Ø 285 to 540 mm
• Maximum external diameter of the coil: 1000 mm
• Manual brake on the same side as the handle for quick and easy adjustment
• Allows rewinding without action on the hub expander
• Maximum load capacity: 1000 kg
• Net weight: 126 kg
• Net weight of one expanding hub: 77 kg

Please note:

INTERNATIONAL AND DOMESTIC FREIGHT ARE NOT INCLUDED (INVOICED SEPARATELY)
