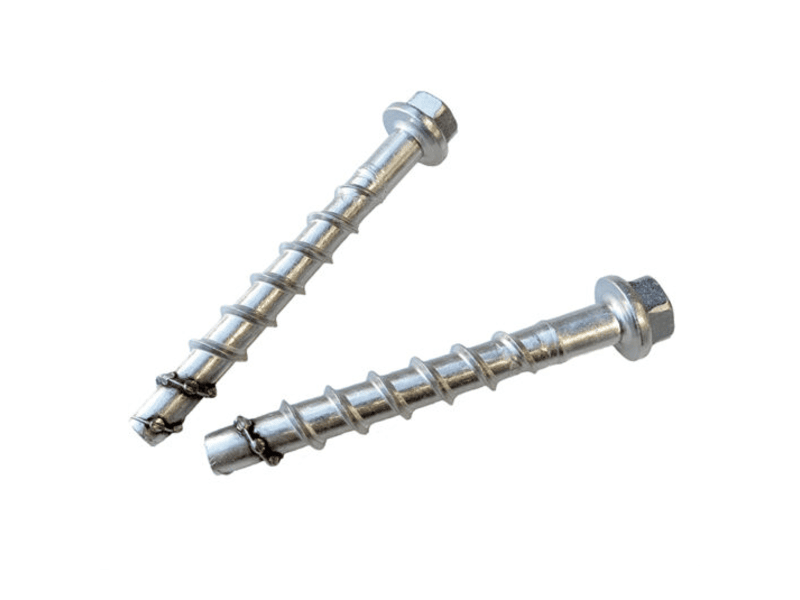

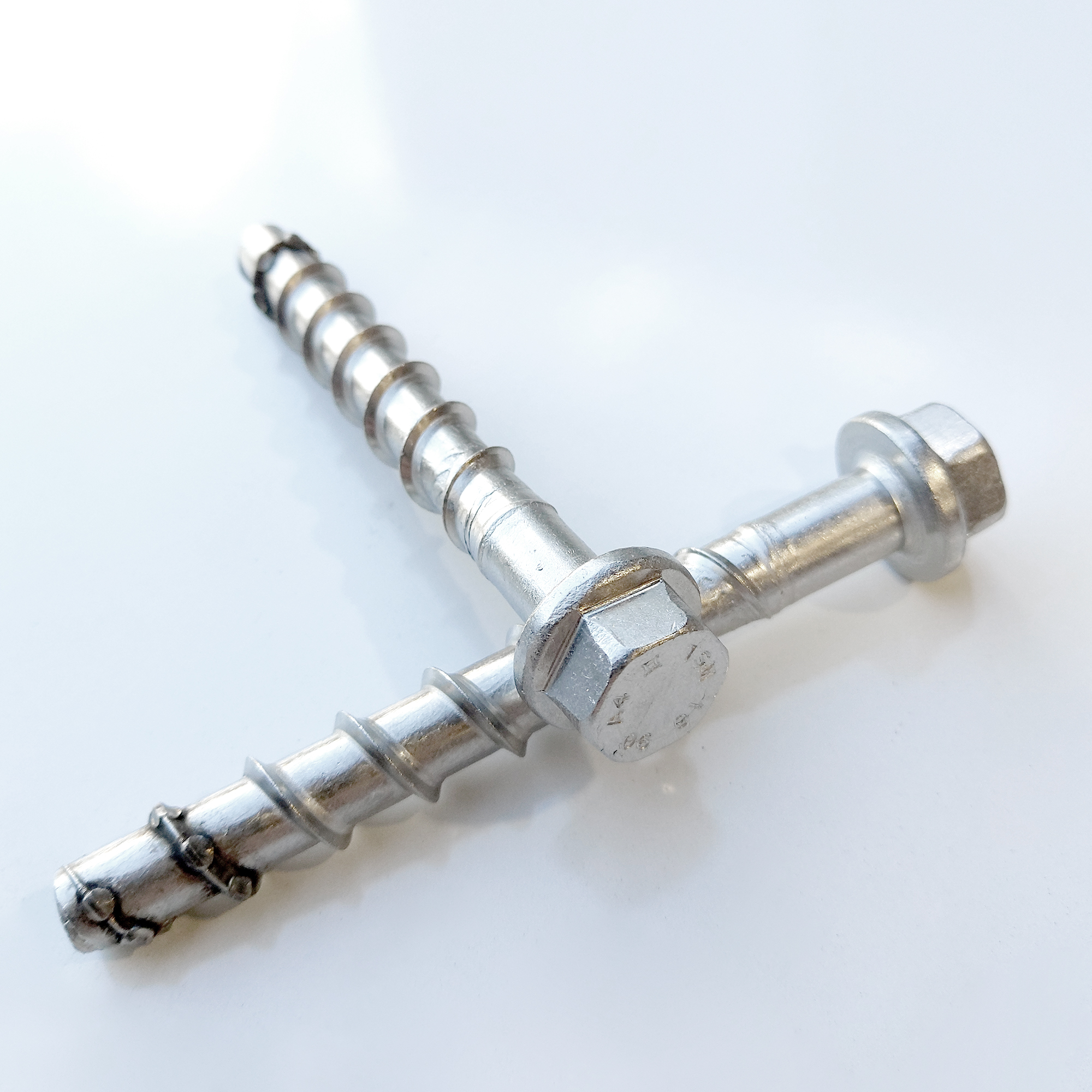

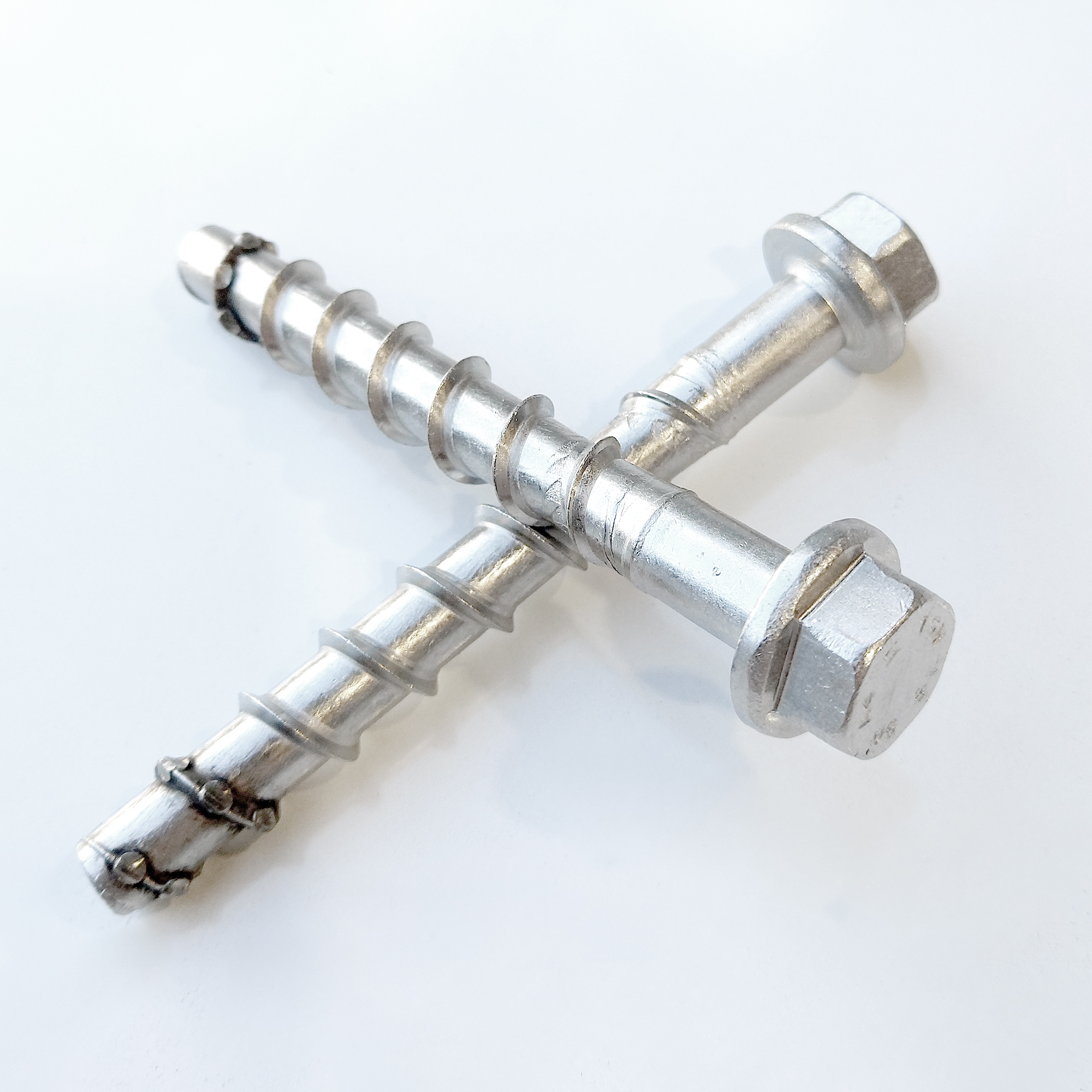

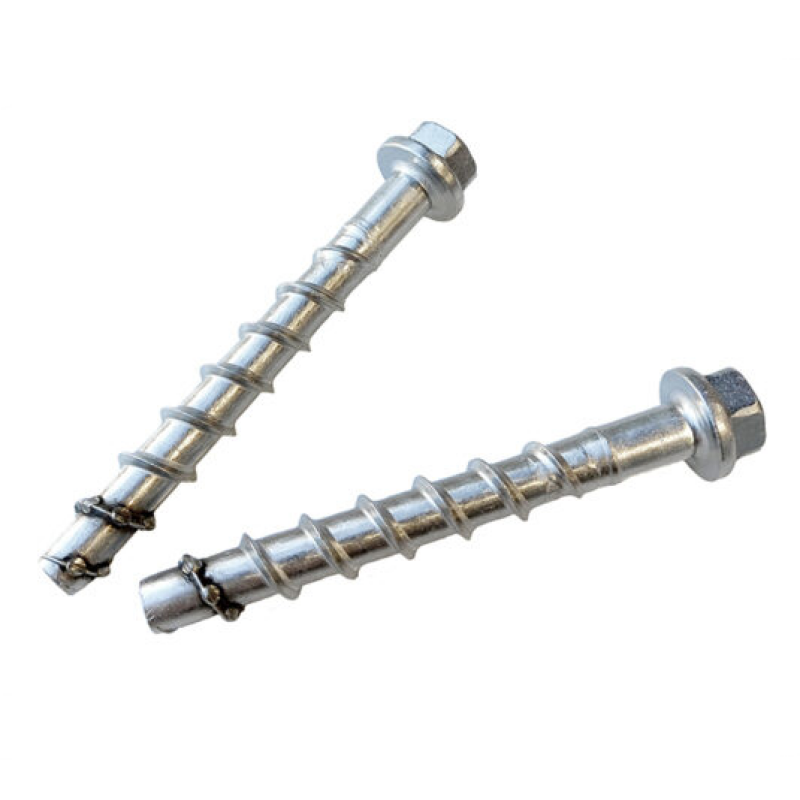

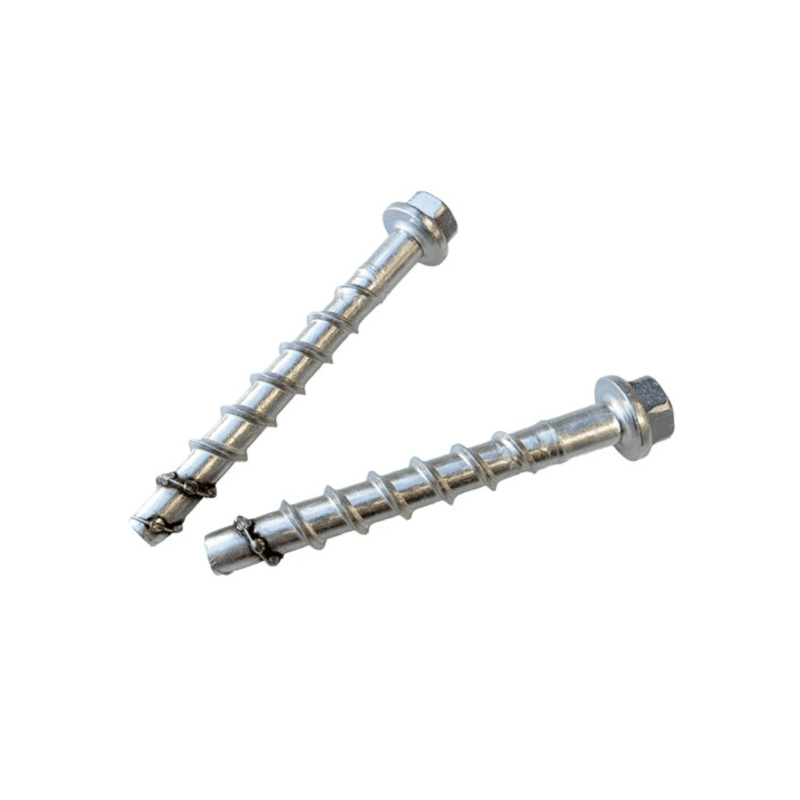

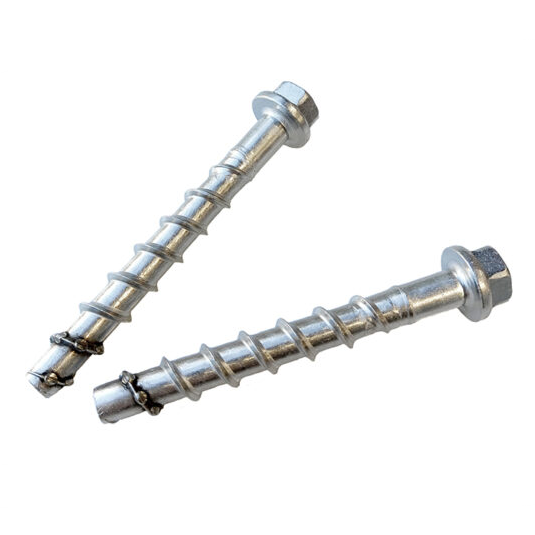

HEXAGON HEAD CONCRETE BOLTS

Hover for zoomClick to enlarge

HEXAGON HEAD CONCRETE BOLTS

50/Box *12x90mm or 10x80mm*

SIZE

Price

From $257.00 NZD ex GST

Description

For cracked and non-cracked concrete.

For direct screwing into concrete without dowel

  • Hex carbide-tipped bolt
  • Stainless Steel A4
  • Box of 50 bolts

90014012 90:  12 x 90 mm

  • Diameter: 12
  • Length: 90
  • Clamping strength: 5
  • Min. anchoring depth: 85
  • Drill hole depth: 95
  • Drill hole diameter: 10
  • Perm. Loads C20/25 in KN
  • Cracked concrete: 6.2
  • Non-cracked concrete: 8.7
  • Char. centre distance: 204
  • Min. center distance: 102
  • Min. edge distance: 50
  • Min. component thickness: 130

9001401 80:  10 x 80 mm

  • Diameter: 10
  • Length: 80
  • Clamping strength: 15
  • Drill hole diameter: 10
