HALDER INSERTS AND HANDLE

INSERTS and HANDLES

 FOR DEAD BLOW SOFT FACED DROP MALLETS, PUNCHES AND HAMMER

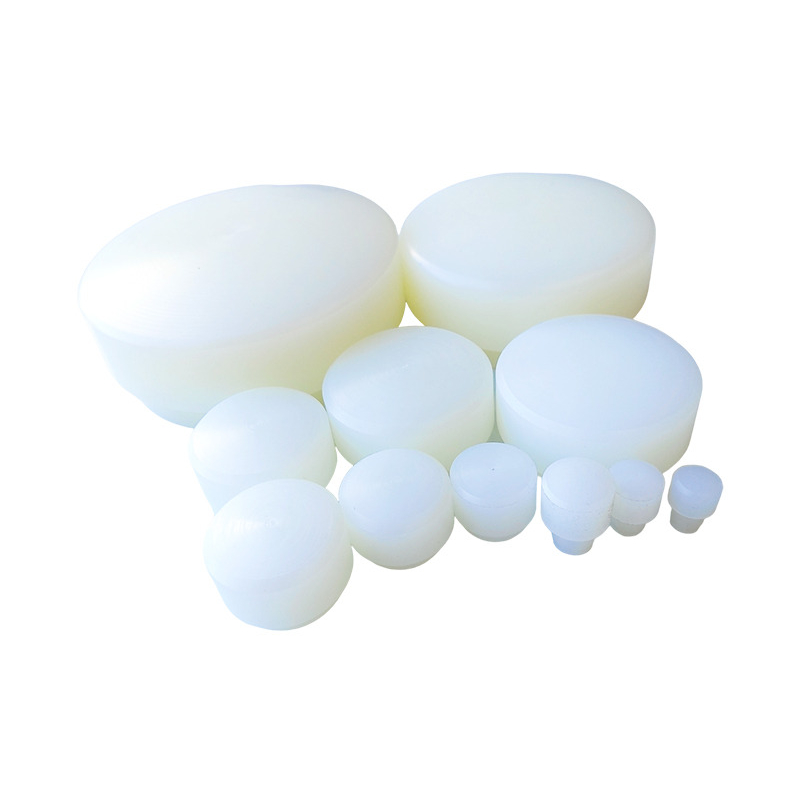

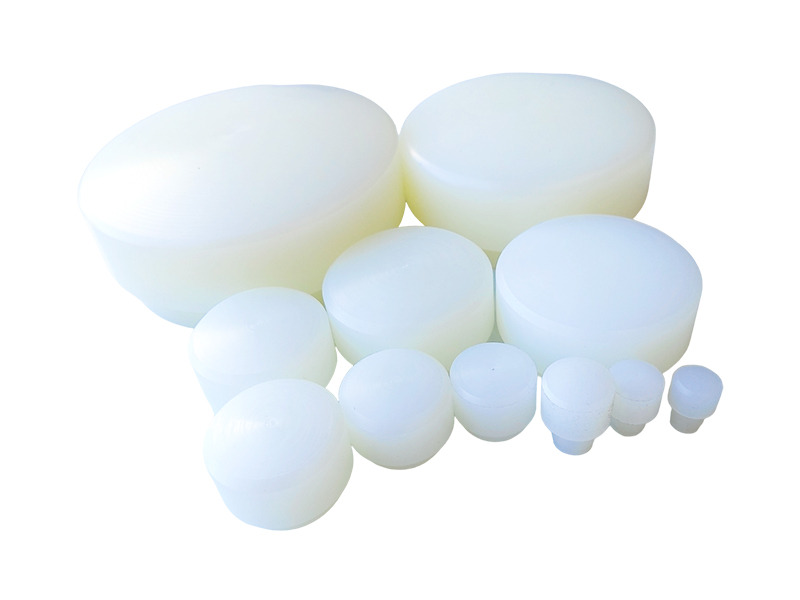

INSERTS:

The nylon inserts for HALDER soft-face mallets (series 3508) with their hardness of approx. 73 Shore are very hard. This white polyamide inserts offer outstanding impact qualities and are guaranteed to combine maximum strength with unique durability. They consist of extruded and extremely homogeneous material. Compared to injection moulded plastic inserts, they are therefore considerably more wear-resistant and durable and will never chip even in sub-zero temperatures. They stand up to the high impact forces produced by non-rebound soft-face mallets. What is more, they are oil and grease resistant and are also used on HALDER sledge hammers, punches and drop-mallets.

• Nylon, white
• Hard
• Very wear-resistant
• No chipping (even at temperatures below zero)
• Noise-dampening
• Very high impact

Diameter:

• 3508.01    ø: 10 mm  for Punches (3408)
• 3508.012   ø: 12 mm for Punches (3408)
• 3508.015   ø: 15 mm for Punches (3408)
• 3508.02     ø: 20 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.025    ø: 25 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.03      ø: 30 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.035    ø: 35 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.04      ø: 40 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.045    ø: 45 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.05      ø: 50 mm for Drop Mallet (3408) and Hammer (3366)
• 3508.08      ø: 80 mm for Hammer (3366)
• 3508.1        ø: 100 mm for Hammer (3366)

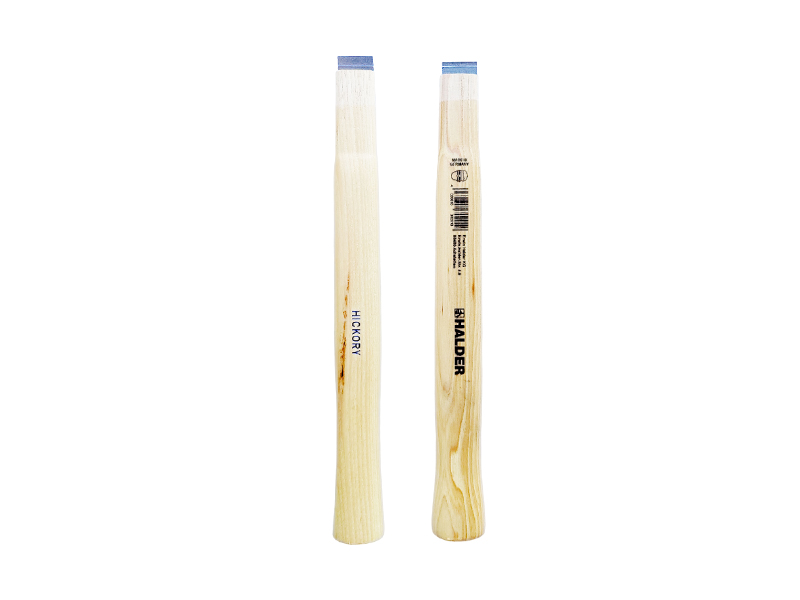

HANDLES:

FOR HALDER DEAD BLOW HAMMER

Made of hickory wood, the HALDER wooden handles of the series 3566 are ergonomic and varnished. Hickory is a type of wood with an extra long fibre structure, which contributes to the great stability of the handle. This structure also keeps the handles from ever breaking in two completely and ensures that both pieces remain connected. This prevents injuries caused by hammer heads that have come off. These handles are available as replacement handles for the HALDER soft-face mallets and HALDER sledge hammers with a length of up to 900mm. This translates to savings in both money and resources.

• High-quality hickory handles for HALDER soft-face mallets and HALDER sledge hammers.
• Shaped ergonomically
• Varnished
• Long-fibre, ultra durable
• Safety-relevant (will not break in two)

Handle sizes:

• 3566.03    For hammer  ø: 30-35 mm
• 3566.04    For hammer ø: 40-45 mm
• 3566.081   For hammer ø: 80 / 800 mm / 4kg
• 3566.1       For hammer ø: 100 / 900 mm / 7 & 10 kg

Links:

• Punches
• Drop Mallets
• Dead Blow Hammer
• Assembly instruction
• Ferroplex Combi Hammer

MADE IN GERMANY
