BIRO PROFIL SHEETMETAL BENDING MACHINE

Segmented Box Folder

Gamechanger for metal roofers!

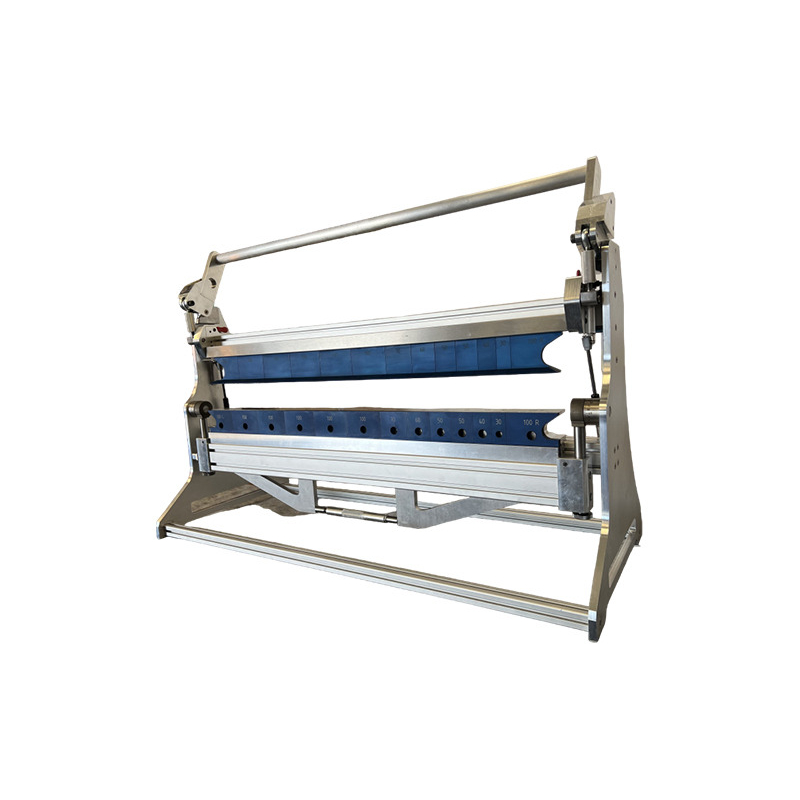

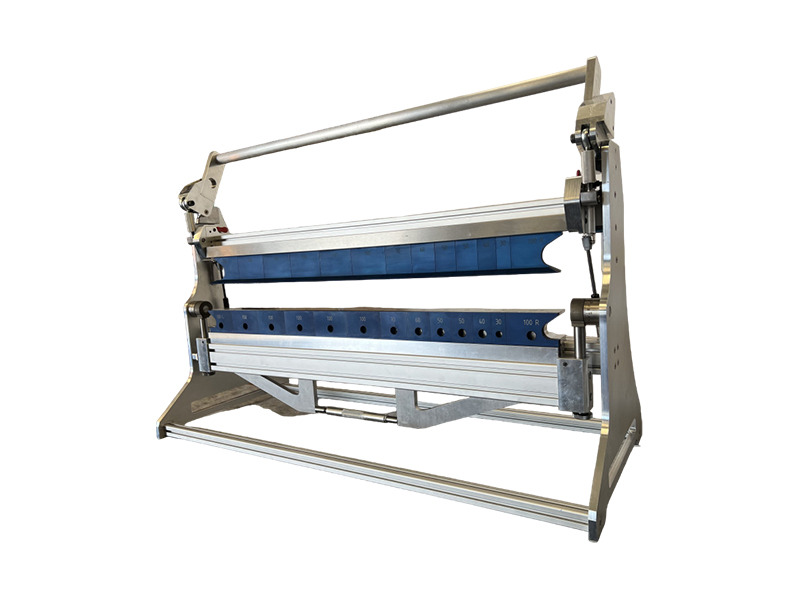

The brand-new BPSE-100S is a Fully Segmented bending machine made from high-quality materials.

90% of this machine is made of hard alloyed aluminium, it is only 40kg without segments, making it easily transportable.

The idea was to create a machine mostly for outdoor jobs, making it efficient, ergonomic, easy to use, and highly resistant to weather conditions, rust, and more.

The upper and lower segments are anodized and come with a box.

The upper pass true height is an amazing 70mm, and the lower pass true height is not far behind with 60mm.

Enough space to fold all needed stopends and drip edges on your trays.

The machine can be mounted on a table or used with additional fixing points at the bottom.

Specifications:

• Dimensions: 1180 x 500 x 685mm (Length x Width x Height)
• Weight: 40kg (without segments)
• Working length: 1000mm
• Fast attachment system for both segments
• Upper beams size: 70mm
• Lower beams size: 60mm
• Segment sizes: 1x30mm, 1x40mm, 2x 50mm, 1x60mm, 1x70mm, 5 x100mm, 2x100mm sarokelem
• Weight of the segments: 10.9kg
• Opening height: 70mm

Bending capacity:

• Steel: 0.6mm
• Aluminum 0.8mm
• Copper, Zinc: 0.8mm
• Stainless Steel: 0.5mm
• Material thickness tuning option
• Bending arm spanning option
• Gas spring supported upper axis
• Assemble and disassemble in minutes!

When the bending arm is dismounted, the machine is only 31kg!

Benefits:

• Easy to handle
• Segments with fast clamping
• Assemble and disassemble in minutes
• Movement blocking system, fixing points
• Easy transportation
• Efficient and precise work
• Ultra easy weight
• Ergonomic
• Loaded due to its weight

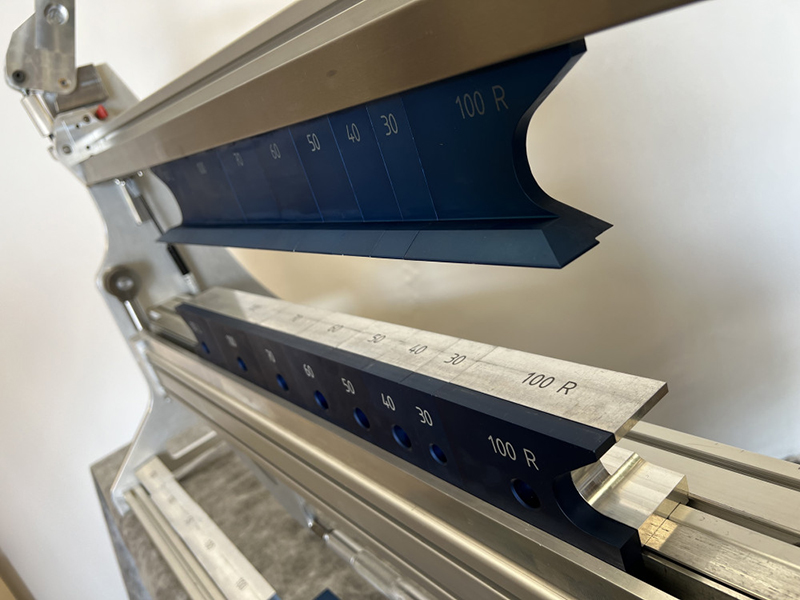

The segment beams which belong to the machine, come in a protective holder case.
