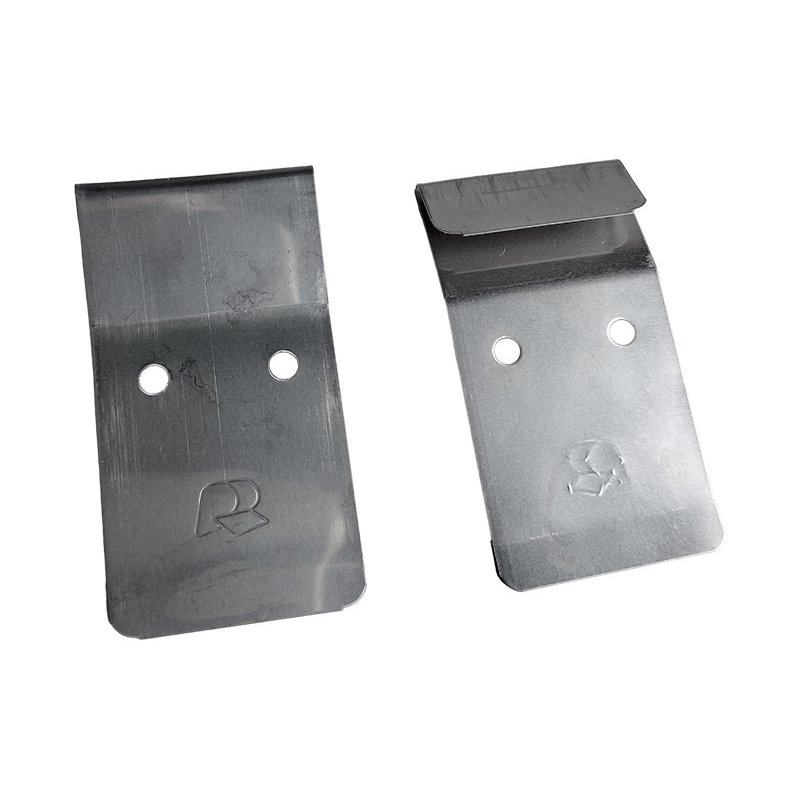

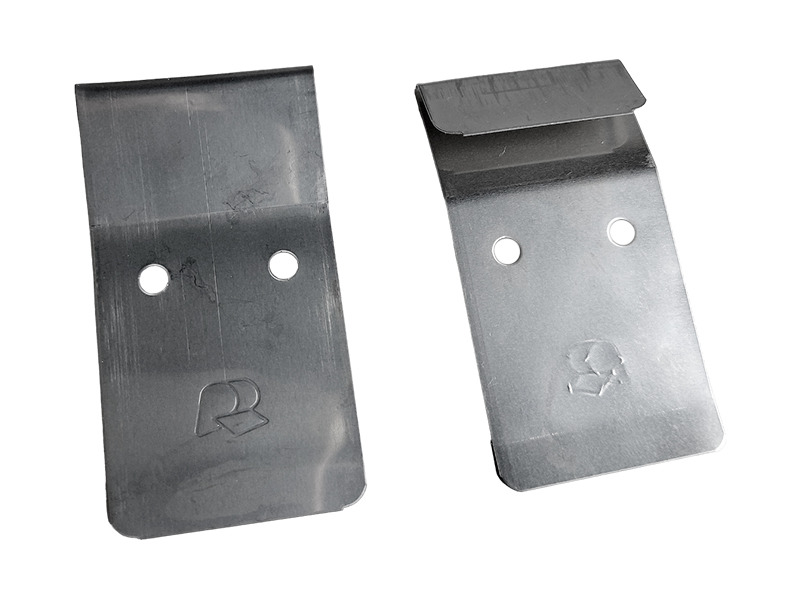

REES HORIZONTAL CLIPS

Installation: Compatible with copper, zink and aluminium. (Only to be used for prefix installation or hidden application in combination with colored steel)

STANDARD FLATLOOK CLIPS:

Where to use: Valleys, apron flashing and skylight flashing kits

• Shingle / Flatlock clips with rounded edges
• 30° offset at 18 mm
• Stainless Steel
• Length: 55 mm
• Thickness: 0.4 mm
• Width: 30 mm
• Envelope: 12.7 mm
• 500 Clips/ Box
• Min. order quantity: 1 box
• With 2 screw holes
• SKU: HA-5380

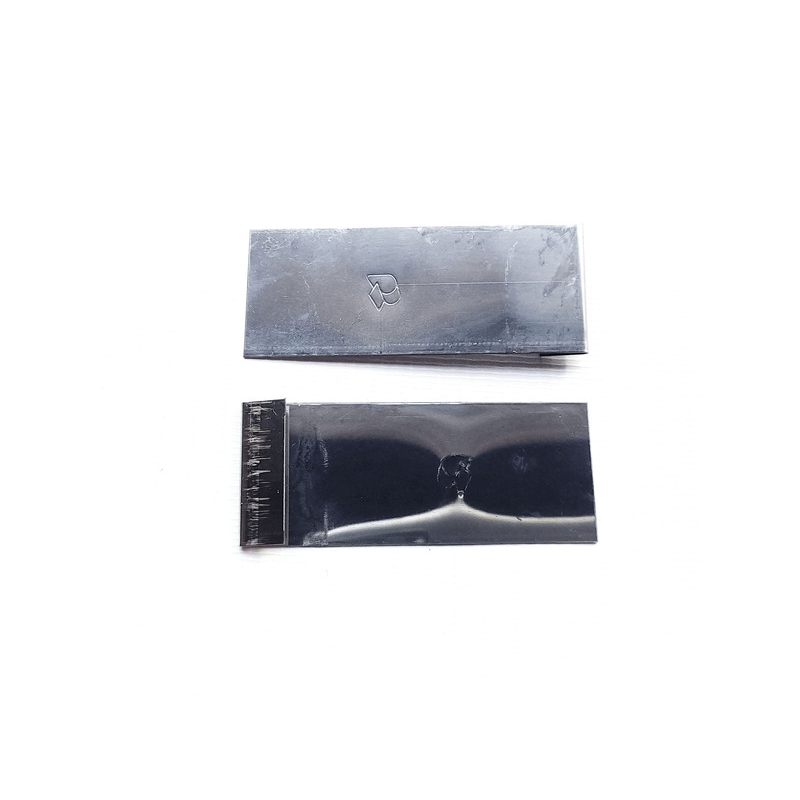

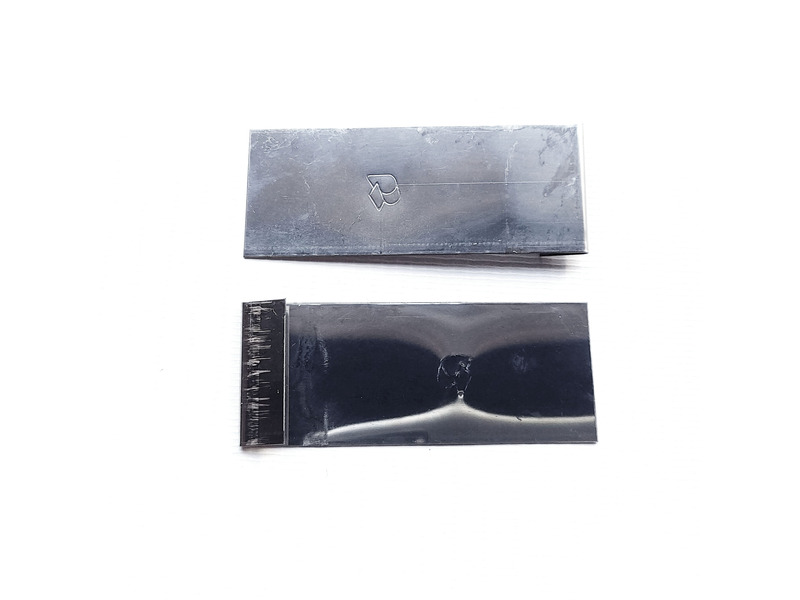

EXTRA LONG FLATLOCK CLIPS:

Where to use: Ideal use for any small return hook on flashings like Window and Door Jamb, Sill flashings and any other flashings without exposure. Can be used for any metal shingle installation.

• Long flatlock clips with 10 mm open hem
• Stainless Steel
• Length: 75 mm
• Thickness: 0.4 mm
• Width: 30 mm
• Envelope: 10.8 mm
• 500 Clips/ Box
• Min. order quantity: 1 box
• SKU: HA-5380-S75

Made in Germany

ALL REES PRODUCTS MUST BE USED ACCORDING TO THE GUIDELINES OF NZ METAL ROOF AND WALL CLADDING CODE OF PRACTICE.
